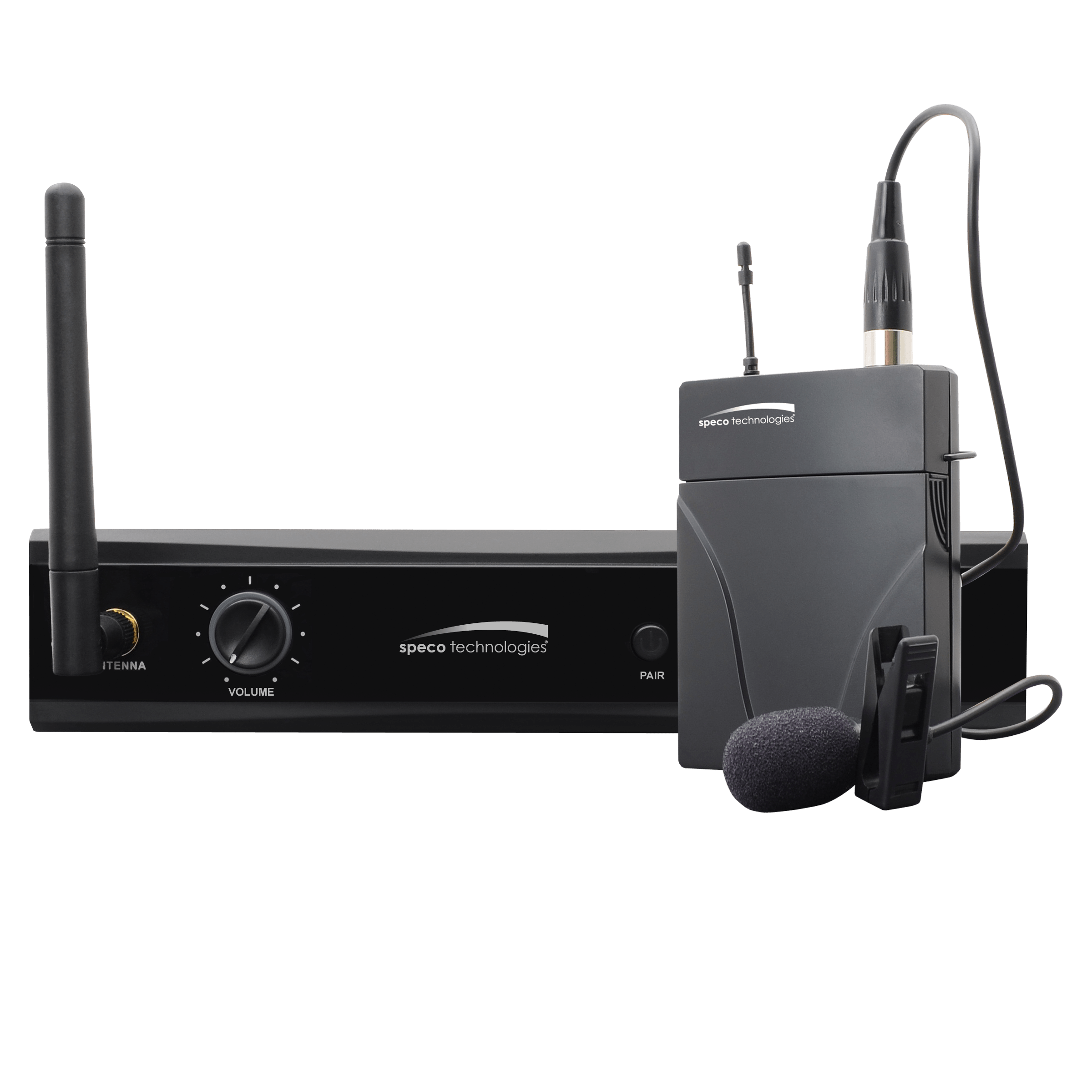

SPECO - M24GLK - 2.4GHz Wireless Microphone Kit - Receiver + Bodypack
• Bodypack transmitter comes with a lapel clip microphone
• Headset microphone available for bodypack transmitter to allow more active use (order part# M24HS)
• Intelligent frequency hopping to help avoid interference
• Easy one-button setup
• Recommended 50’ transmission range
*Also available with handheld transmittera
Receiver Specifications:
Modulation.................... GFSK
Frequency..................... 2404 ~ 2476 MHz
Distortion THD.............. <0.05%@1kHz
RF Sensitivity................ -78dBm
S/N................................ >85dB
Audio Output Level....... 0dBu (770mV)
Power Supply ............... DC12V, 200mA (included)
Channels ...................... 16
Frequency Response ... 20Hz ~ 18kHz, +/- 3dB
System Latency............ 8ms
Transmitter Specifications:
Modulation.................... GFSK
Frequency..................... 2404 ~ 2476 MHz
Transmit Power ............ 8dBm (typical)
Distortion THD.............. <0.05%@1kHz
S/N................................ >85dB
Consumption Current ... <85mA (at 3V)
Power Supply ............... 2 x 1.5V “AA” batteries (not included)
Usage Time .................. Approximately 20 hours
Channels ...................... 16
Frequency Response ... 20Hz ~ 18kHz, +/- 3dB
Bandwidth..................... 2Mhz
