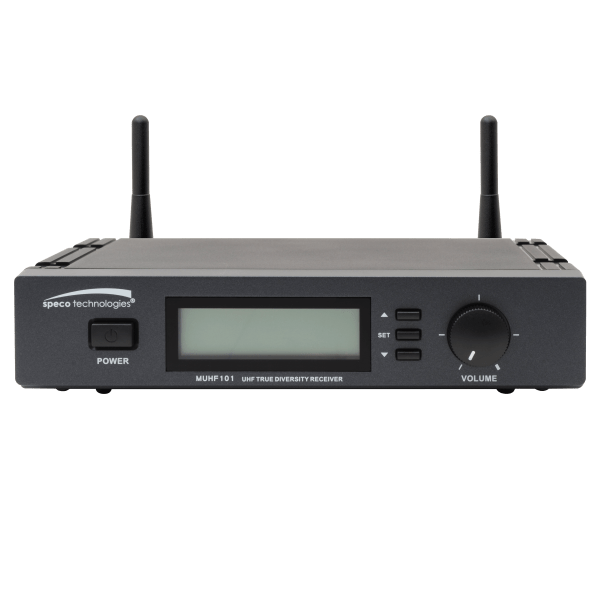

SPECO - MUHF101 - Single Channel Diversity UHF Receiver
Speco Technologies’ UHF 700 frequency-selectable single channel receiver, handheld and lapel microphone transmitters allow the user to select and match desired frequencies on each unit. This eliminates the need to maintain high inventory levels of similar units with locked frequencies. They provide clear, interference-free channels of communication for roaming distances in excess of 150 feet.
• Up to 700 selectable pre-programmed frequencies make it easy to set up multiple system configurations and avoid interference
• Auto-scan function can locate interference-free channels easily
• True Diversity technology ensures quality reception
• Constructed from durable plastic with a ½ rack design
• Squelch adjustment

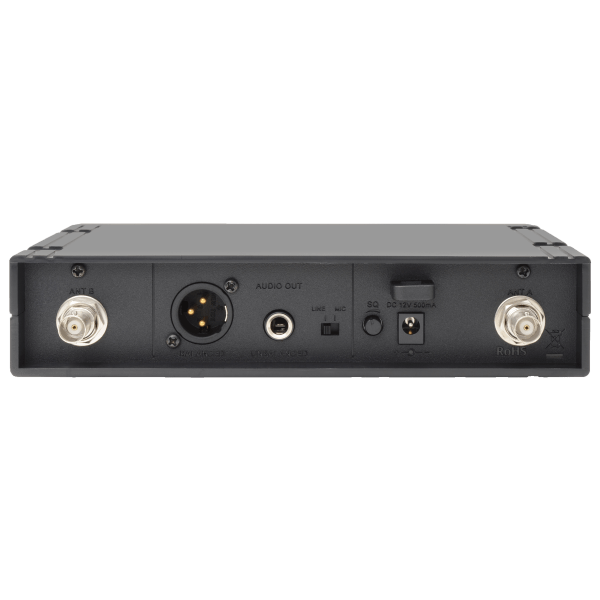

• Balanced XLR connector and unbalanced ¼” jack audio output
• FCC, CE, RoHS compliant
Carrier Frequency Range........UHF band 540 – 570MHz
Oscillator..................................PLL synthesized
Modulation...............................FM
Frequency Stability..................±0.005%
S/N Ratio .................................More than 94dB, at 20kHz deviation
.................................................and 60dBmV antenna input
Maximum Deviation.................±48kHz
Image and Spurious Rejection...80dB minimum
Receiving Sensitivity................At 10uV over 80dB S/N ratio
Selectivity ................................More than 50dB
AF Response...........................80Hz – 16kHz (±3dB)
T.H.D........................................More than 1% (at 1kHz)
IF Frequency ...........................1st: 243.95MHz 2nd:10.7MHz
Dynamic Range.......................More than 96dB
Tone Signal..............................32.768kHz
Audio Output............................Balanced and unbalanced audio outputs
Power Supply ..........................12VDC (power supply included)
Current Consumption ..............Single Channel: about 260mA
Dimensions..............................7.9” (W) x 1.7” (H) x 4.8” (D)
