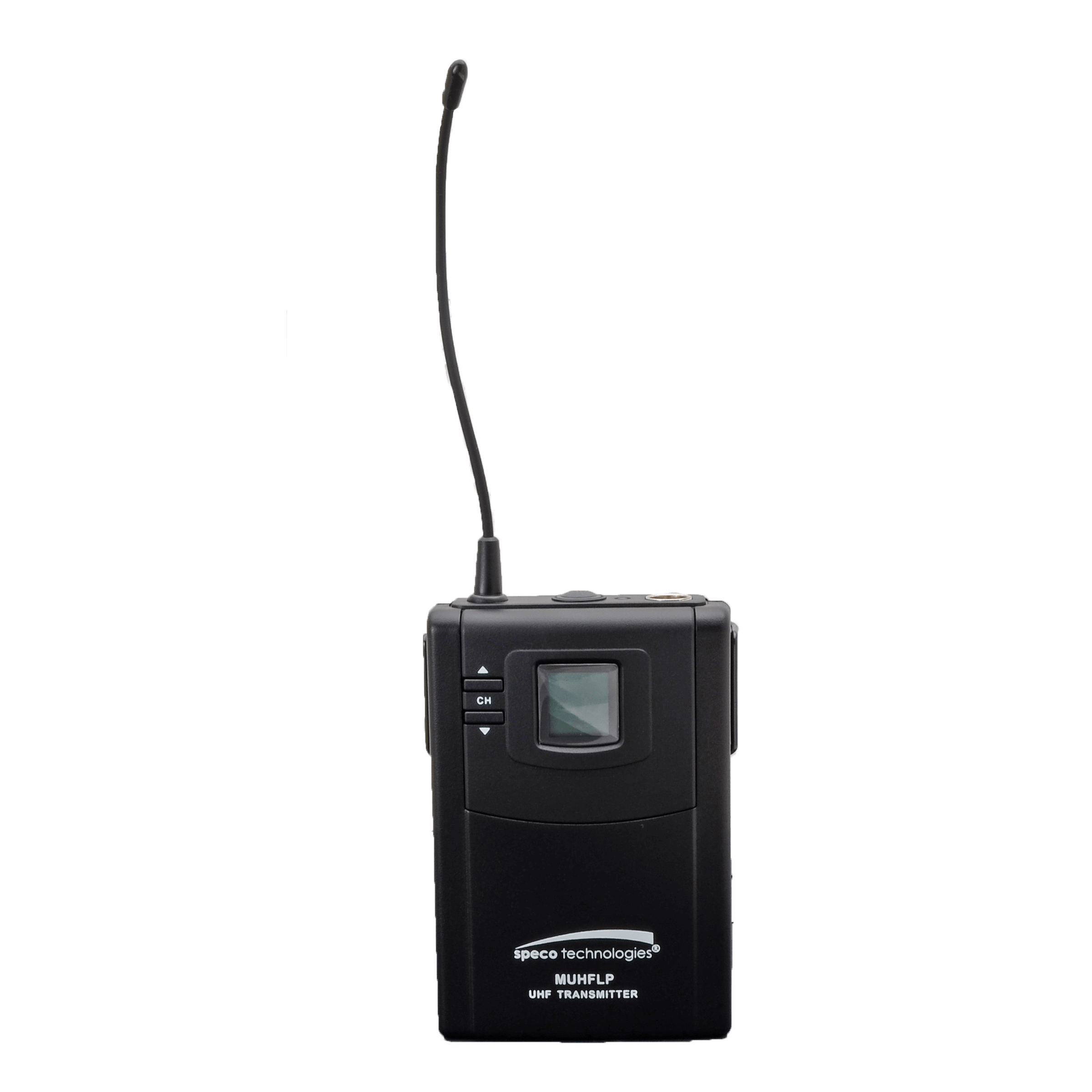

SPECO - MUHFLP - Frequency Selectable UHF Bodypack Microphone
Speco Technologies’ UHF 700 frequency-selectable single channel receiver, handheld and lapel microphone transmitters allow the user to select and match desired frequencies on each unit. This eliminates the need to maintain high inventory levels of similar units with locked frequencies. They provide clear, interference-free channels of communication for roaming distances in excess of 150 feet.
Carrier Frequency Range....UHF band 540 – 570MHz
RF Power Output...............10mW (max.)
Oscillator............................PLL synthesized
Frequency Stability............±0.005%
Maximum Deviation...........±48KHz
Spurious Emission.............More than 60dB below carrier frequency
T.H.D..................................More than 1% (at 1kHz)
Microphone Cartridge........(Handheld) uni-directional dynamic or uni-directional electret condenser unit. (Lavalier) uni-directional electret condenser unit
Operating Voltage..............DC1.5V x 2 AA size dry or rechargeable batteries
Current Consumption ........120mA (max.)
