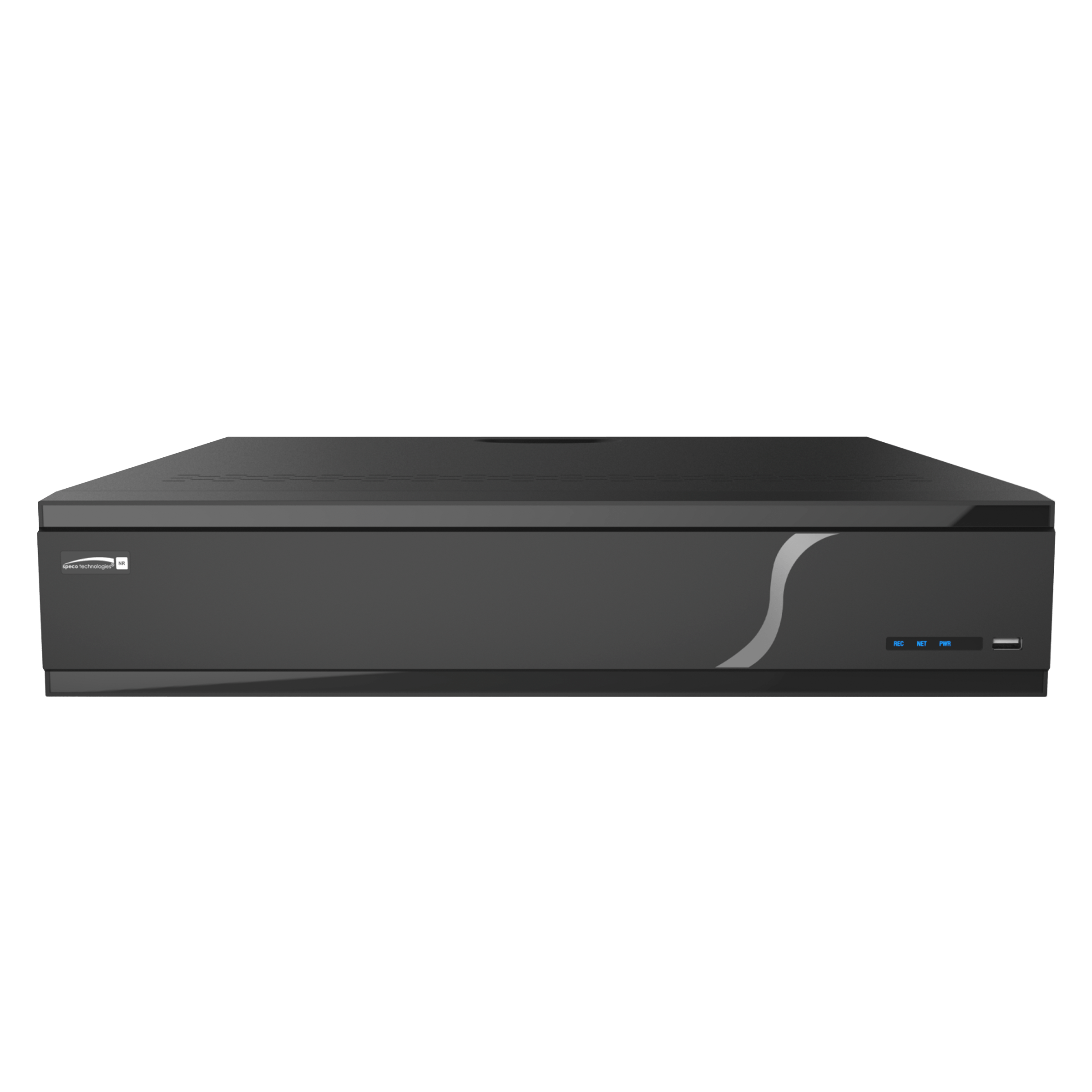

SPECO - N64NR16TB - 64 Channel 4K H.265 NVR with Analytics- 16TB
EZ Wizards – For ease of use and setup
Camera: quickly discover and install all Speco IP cameras Setup: for quick setup of general settings
Network: network setup and port forwarding
Record: quickly setup recording resolutions and recording type Search: quickly search for events from thumbnails
Copy: quickly copy what you are playing onto a USB flash drive
Real time recording up to 8MP resolution (4K) at 30fps
H.265 compression – Store up to 2x more than H.264!
Built-in PoE ports for all channels for easy installation
1 SATA port for up to 14TB of storage
4K HDMI out and VGA monitor output
Object and line crossing detection and alerts*
Smart Search – Specify a region on the camera view and search on changes in that area*
2-way audio communication
Free US-based DDNS and P2P services
Remote viewing via web browser or your mobile device
Easy video exporting via USB
5 year limited warranty
*with Speco Smart Analytic Cameras
|
Model |
N64NR |
|
|
System |
Compression |
Standard H.265 |
|
OS |
Embedded Linux |
|
|
Video |
IPC Input |
64CH |
|
Network Access Bandwidth |
320Mbps |
|
|
Network Access Format |
8MP/6MP/5MP/4MP/3MP/1080P/960P/720P@25/30fps |
|
|
Output |
HDMI×1: 4K×2K/1920x1080/1280×1024， VGA×1：1920x1080/1280×1024 |
|
|
Audio |
Network Input |
64CH IPC audio input |
|
2-way Audio |
RCA×1 |
|
|
Local Output |
RCA×1 |
|
|
Record |
Record Stream |
Dual stream recording |
|
Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/960P/720P |
|
|
Mode |
Manual, schedule, motion, sensor, intelligence |
|
|
Playback |
Simultaneous Playback |
Max 16 CH |
|
Search Mode |
EZ search, museum search, time search, event search, bookmark search, snapshot search |
|
|
Smart Search |
Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
|
|
Function |
Play, pause, FF, FB, etc. |
|
|
Alarm |
Mode |
Manual, sensor, motion, exception, intelligence |
|
Input |
8CH local alarm input; support IPC alarm input |
|
|
Output |
4CH local alarm output; Support IPC alarm output |
|
|
Linkage |
Record, snapshot, preset, e-mail, pop-up window, etc. |
|
|
Network |
Interface |
RJ45 10M/100M/100Mbps×2 |
|
Protocol |
TCP/IP，PPPoE，DHCP，DNS，DDNS，UPnP，NTP，SMTP |
|
|
Web Client |
Multiple online users monitoring |
|
|
Mobile Device |
OS |
iOS, Android |
|
Storage |
HDD |
SATA×8，max 14TB per HDD |
|
E-SATA |
E-SATA×2 |
|
|
Export |
Local |
By U disk，USB mobile HDD |
|
Network |
Yes |
|
|
Interface |
USB |
USB2.0×2（one in the front panel and the other in the rear panel） |
|
Remote Controller |
Yes |
|
|
Power Consumption |
≤15W (without HDD) |
|
|
Dimensions (W×D×H) |
16.9” x 17.8” x 3.5” (430mm×453mm×89mm) |
|
|
Working Environment |
-4~122F (-10~50℃)，10%~90%（humidity） |
|
