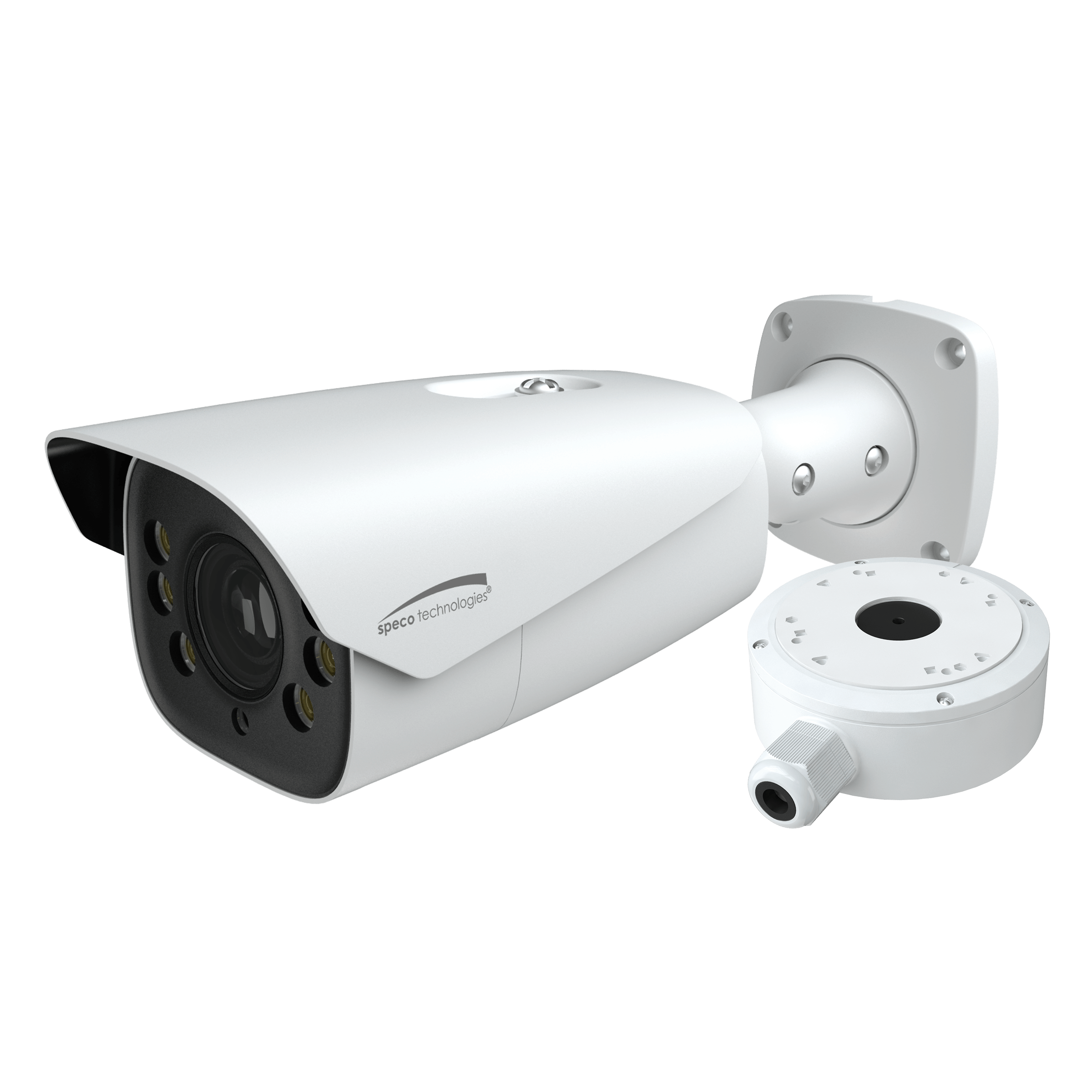

SPECO - O2BFRM - 2MP IP Bullet Camera with Facial Recognition, 7-22 mm motorized lens, Included Junction Box, White
7-22mm motorized Lens, White Housing
Supports up to 2MP @ 30fps
Built-in standard PoE (IEEE 802.3af)
Built-in Face Detection and Recognition*
Face Recognition Search with compatible Speco Recorder
Built-in white LED for optimum face capture
Built-in Analytics for object detection and line crossing
H.265/H.264/MJPEG compression supported
Built-in MicroSD slot up to 128GB (card not included)
IP67 compliant, weather resistant
Conformant with ONVIF Profile S
Two-way audio
Junction box included
5 year warranty
*Must use an NRE for Facial Recognition
Camera Specifications
Image Sensor: Progressive scan 1/2.8” CMOS, 2MP
Maximum Resolution: 1920 x 1080
Field of VIew (H): 37° - 22.5°
Recommened Capture Distance: 5-20ft
3-axis Adjustment: Pan: 0° - 360°, TIlt: 0° - 90°, Rotate: 0° - 360°
Minimum Illumination: F1.4, 0 lux (White LED On)
White Balance: Auto, Indoor, Outdoor, Manual
Compensation: WDR, BLC, HLC
Electronic Shutter Speed: 1/25 ~ 1/100000 sec
DNR: 3D
Video Specifications
Main Resolution: 1080P (1920x1080 ) / 720P (1280x720) @ 30fps
Compression: H.265+/H.265/H.264+/H.264/MJPEG
Bitrate Control: VBR, CBR
Multiple Streaming: 3 streams
Audio Specifications
Audio: 1ch input and output
External Terminal Specifications
Ethernet: 10/100 Mbps
Power: DC jack
Analog Video Output: CVBS video output (BNC x 1)
Microphone Input: 3.5mm
Storage: Built-in micro SD card clot, up to 128GB
Network Specifications
Protocols: IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPs, QoS
DDNS support: Speco DDNS (free of charge)
Security: User ID & Password protection, IP/MAC address filtering,
digest authentication
User Access: Max. 6 simultaneous users. Actual number of users may
vary depending on bandwidth
System Specifications
PoE: Standard (IEEE 802.3af)
Analytics: *Face Detection and Recognition, Motion detection,
object removal, abnormality, line crossing, intrusion
Alarm Triggers: Analytics, sensor
Alarm Events: FTP upload, email upload
Image Settings: Privacy mask, region of interest, OSD
Client Specifications
Web Browser Support: Windows (Internet Explorer 8 and up)
PC Application: SecureGuard® VMS
Mobile: SecureGuard® Client (iPhone® and Android™)
Other Viewing Platforms: Apple TV and Amazon Fire TV
Operating & Unit Specifications
Power: PoE, 12VDC (power supply not included)
Power Consumption: 12W (max)
Operating Temperature: -22°F - 140°F
Operating Humidity: Lass than 95% (non-condensing)
Unit Dimensions: 3.9”(Φ) x 11.0”(H)
Unit Weight: 2.3 lbs
