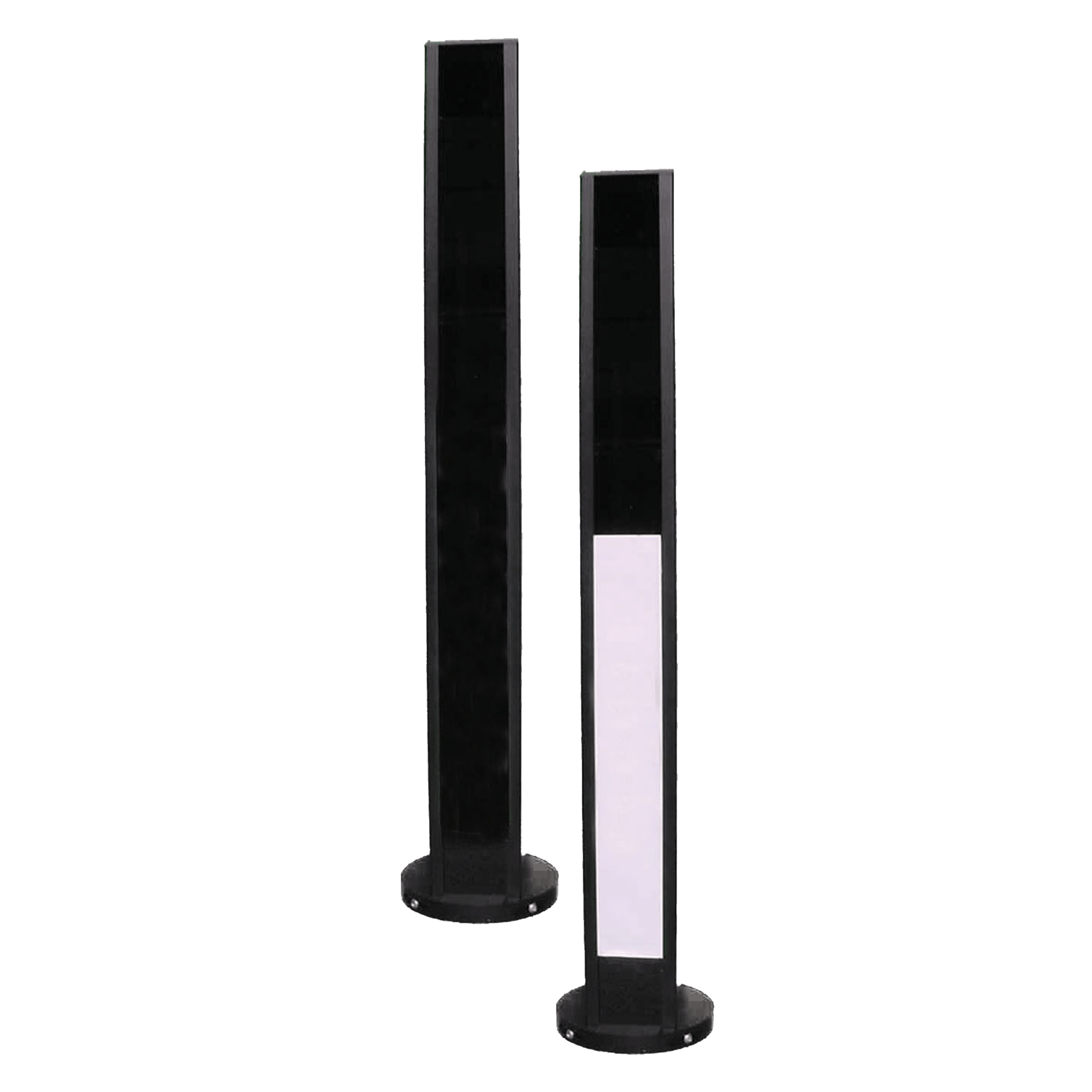

SPECO - O2iTC23 - 2MP Intensifier IP Tower Camera, 2.9mm lens, stainless steel housing
2.9mm lens, stainless steel housing
2.9mm fixed lens
See color in low light without IR LEDs
Supports up to Full HD resolution @ 30fps
Built-in standard PoE (IEEE 802.3af)
No problems caused by objects that reflect or absorb IR light sources
With presets for different scenarios
Attached cable (16 ft.) connects camera unit to main unit for flexible placement
Wide dynamic range (WDR) operation
View a person’s face by placing an unobtrusive camera at eye level
2-way audio communication
Micro SD card slot (card not included)
Sensor input and relay output
Conformant with ONVIF Profile S
5 year warranty*
Camera Specifications
Image Sensor......................Progressive scan 1/2.8” CMOS, 2MP
Maximum Resolution...........1920 x 1080
Minimum Illumination...........F1.4, Color: 0.2 lux (Max Intensify)
White Balance .....................ATW/AWB
Compensation .....................WDR
Intensify ...............................Selectable (max 8x) / Off
Electronic Shutter Speed.....1/30 - 1/10000 sec
DNR.....................................2D/3D
Video Specifications
Main Resolution...................1920x1080 / 1280x720 @ 30fps
Compression .......................H.264 (HP/MP/BP), MJPEG
Bitrate Control......................VBR, CBR
Multiple Streaming...............3 streams
Audio Specifications
Mono Input...........................G.711
Mono Output........................G.711
External Terminal Specifications
Ethernet...............................10/100 Mbps
Alarm ...................................1 sensor input, 1 relay output (terminal block)
Audio ...................................1 mic in, 1 line out (terminal block)
Power ..................................Ternimal block
Network Specifications
Protocols..............................IPv4, TCP, UDP, RTP, RTSP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, DNS
DDNS support .....................Speco DDNS (free of charge)
Security.................................User ID & Password protection, IP address filtering, digest authentication
User Access..........................Max. 8 simultaneous users Actual number of users may vary depending on bandwidth
System Specifications
PoE.......................................Standard (IEEE 802.3af)
Analytics ...............................Motion detection, tampering, sensor input
Alarm Triggers ......................Analytics
Alarm Events ........................FTP upload, email upload, micro SD card recording, relay output
Image Settings......................Privacy mask
Client Specifications
Web Browser Support ..........Windows (Internet Explorer 8 and up)
PC Application ......................SecureGuard®
Moblie...................................SecureGuard® Mobile (iPhone® and Android™)
Operating & Unit Specifications
Power ...................................PoE, 12VDC (power supply not included)
Power Consumption .............4W
Operating Temperature.........14° F – 122° F
Operating Humidity...............0% - 90% RH
Main Unit Dimensions...........2.59” (W) x 1.24” (H) x 4.21” (D)
Main Unit Weight ..................5 ox.
Camera Unit Dimensions......24” (H) x 2.75” (D)
Camera Unit Weight .............5 lbs.
Certifications.........................FCC, RoHS
