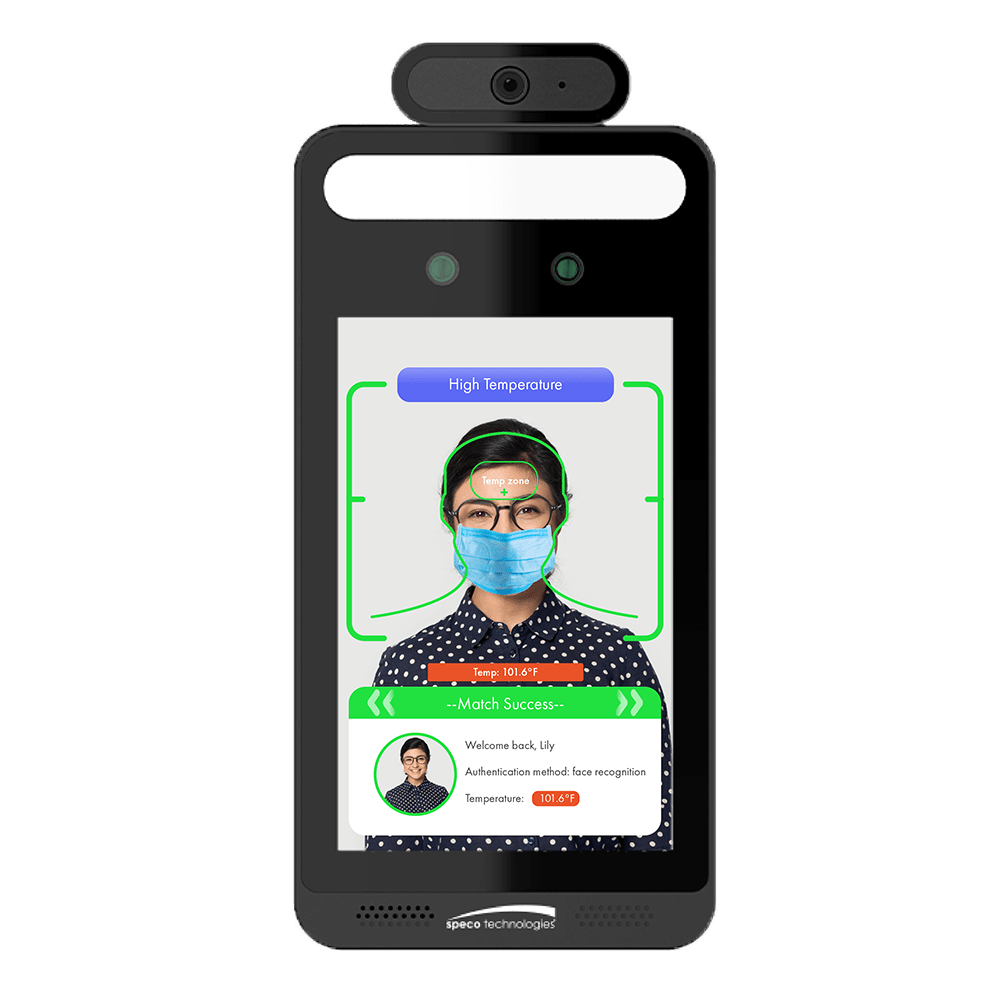

SPECO - O2TML - 2MP Temperature Reading Panel with Face and Mask Recognition
8-inch LCD screen
Supports IR high-accuracy body temperature measurement
Can recognize faces with masks
Triggers voice alarm when abnormal temperature or mask-less face is detected
Deep learning algorithm with high face recognition accuracy rate
Supports remote live view and two-way talk
12VDC power supply included (PSW5)
1 year warranty
*This device is not FDA approved and is not intended for use in the diagnosis or treatment of any disease or other conditions, nor should it be solely or primarily relied upon to diagnose or exclude a diagnosis of Covid-19 or any other disease, or in the cure, mitigation, treatment, or prevention of any disease.
Performance
OS: Embedded Linux
Storage: 8Gb DDR3 + 16Gb EMMC
Screen
Display Screen: 8inch LCD screen; resolution: 1280x800; contrast: 500:1
Brightness: 500 lux
Temperature Measurement
Temperature Measuring Range: 0~50◦C (32◦~122◦F)
Accuracy: ± 0.3◦C (0.5◦F)
Measuring Distance: 0.3~0.5m (1ft~1.6ft)
Face Recognition
Sensor: 1/2.7
Lens: 2MP dual-lens, f=3.97mm @ F1.6
WDR: 120db
Height Range of Face Recognition: 1.2m-2.2m (3.9ft - 7.2ft) (the recommended installation height is 1.45m) (4.75ft)
Face Recognition Distance: 0.3m-2m (1ft - 6.5ft)
Recognition Mode: Face: 1 : N
Recognition Duration: ≤ 0.5 s per person
Face Capacity: 20,000
Recognition Accuracy: 99.7%
Supplementary Light
Fill-in Light: Soft white light, IR light
White Light Distance: 1-3m (3.2ft - 10ft)
Smart Linkage
Screen Wakeup: Yes
Light Adjustment: Yes
Snapshot: Yes
Audio
Two-way Talk: Yes (noise reduction and echo cancellation)
Audio Input: 1CH built-in MIC
Audio Output: Built-in speaker
Interface
Network Interface: 10/100Mbps self-adaptive Ethernet port x1
Maximum simultaneous remote users: 10
Alarm Input: 2 CH
Alarm Output: 2 CH
Wiegand Interface: Wiegand input/output (26/34)
RS485: RS485x1 (half duplex)
Door Lock Output: Relay output, NO/NC (optional), delay setting supported
SD Card Interface: 1 micro SD card slot, up to 128GB
USB Interface: USB x1
Anti-Tamper Interface: 1 button
Exit Button: 1
Reset Button: 1
Others
Power: 12V @1A (not included)
Power Management: Screen sleep, screen protection
Power Consumption: <12W
Weight: Approx. 1.2KG (2.6lbs)

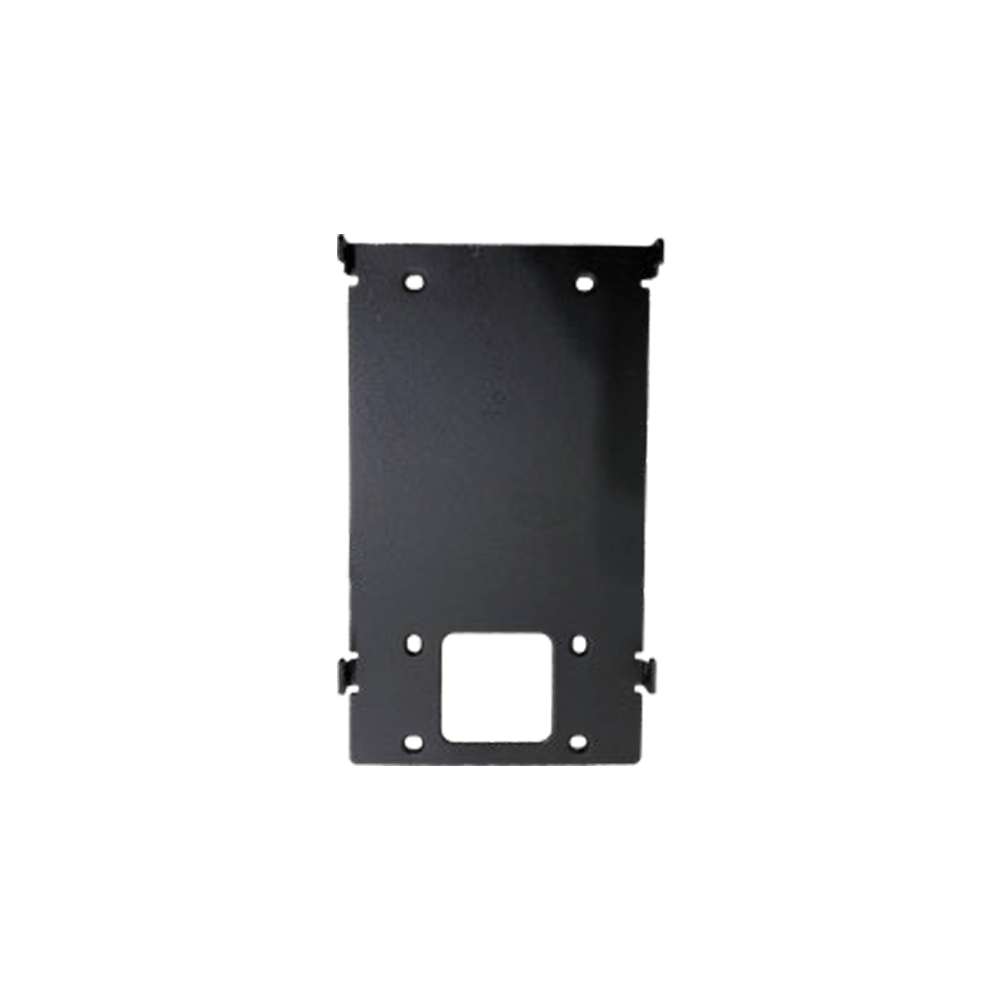

Installation: Wall Mounting, Pole Mounting, Embedded Installation, Desktop
Protection: IP66, Surge Protection and Voltage Transient Protection
Working Environment: -20°C~60°C (-4°F~140°F) , <95% (non-condensing)
Dimensions: 301.8mm x 138.6mm x 34.2mm, 11.8”(H) x 5.4”(W) x 1.3”(D)
