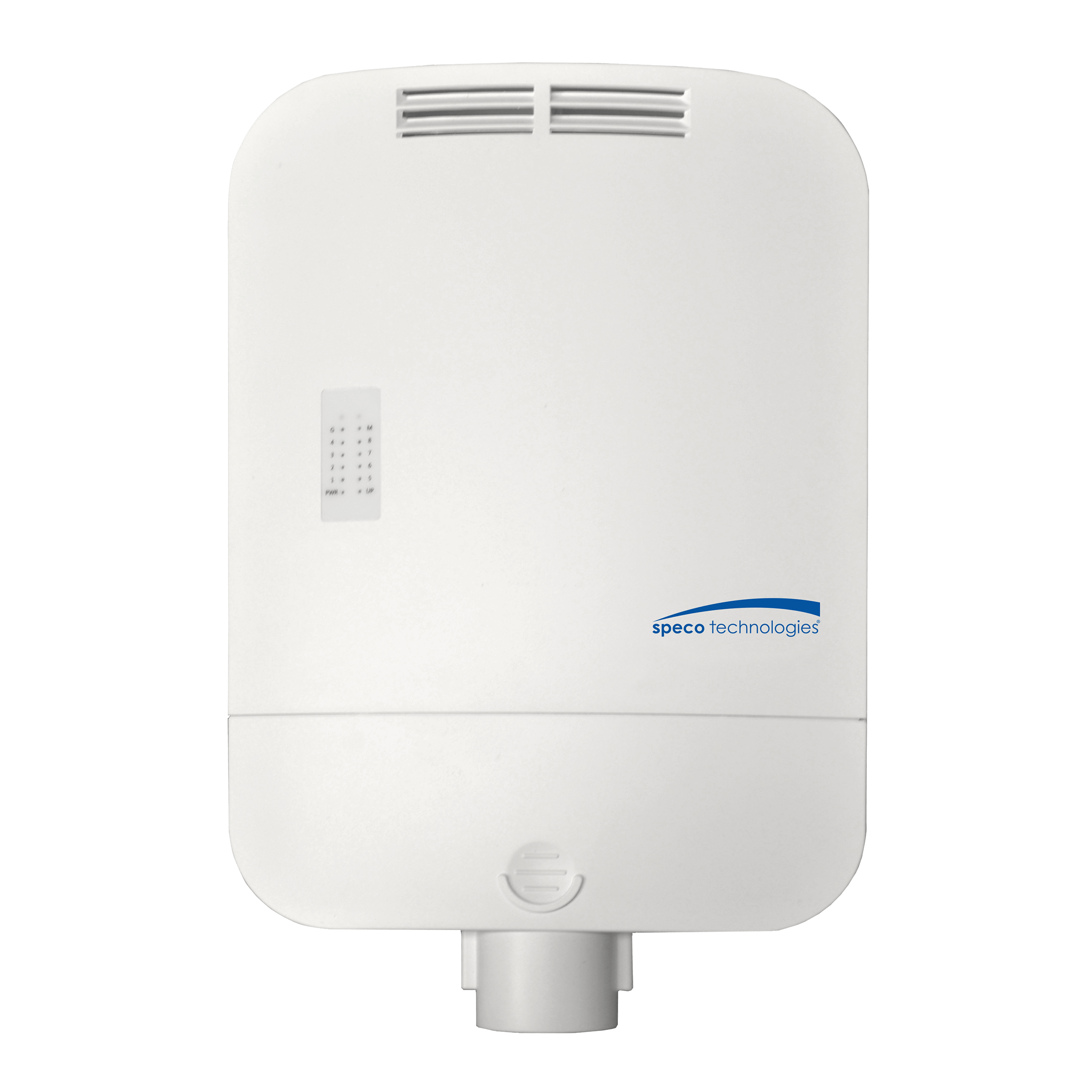

SPECO - P8S9O - 9-port IP65 Rated 8 port PoE Switch
Our PoE switch series is designed to supply power and maximize network safety, with features of surge protection, weather-resistance and VLAN.
• VLAN Mode:
o When the VLAN mode is selected, each PoE port is isolated and independently connects with cameras, computers or other switches, while the uplink port connects with a router.
o The VLAN Function helps avoid broadcast storms and ARP spoofing.
• Surge Protection: Each port is equipped with a surge absorber which can survive under 10,000V/150A, nanosecond response time, matches with TVS diode to limit voltage spikes and eliminates surges to protect the device.
• PoE supplies power through the IEEE802.3af standard, with maximum 0.65A and overcurrent protection.
• Easy to install with an attached bracket.
• Compact design with waterproof features.
• Power supply included
Switch Specifications
Total Ports: P8S9O - 9, P4S5O - 5
PoE Ports: P8S9O - 8, P4S5O - 4
Power Consumption: P8S9O - 120W, P4S5O - 75W
Max Power Per Port: 13.5W
Standards: IEEE802.3x, IEEE802.1Q, IEEE802.3af, IEEE802.3,IEEE802.3u, IEEE802.3z, IEEE802.3ab
Backplane Bandwidth: P8S9O – 1.8Gbps, P4S5O – 1Gbps
Required Network Cable: 10 Base-T: 3 or 5 UTP100 Base-TX: 5 UTP
Forwarding Speed: 10/100Mbps, 148800pps
MAC Address: 4K
Switch Mode: Store and transmit
Transmission Mode: Duplex/Half duplex
PoE Operation: Auto-senses power demanding devices
Protocol: CSMA/CD, Supporting IEEE802.1D
Distance Power Supplied: < 100m using the Cat5e cable
PoE Power Pins: 4/5+, 7/8-
Signal Lights: Power, Link/Act, PoE, Uplink Status
Distance Power Supplied: < 100m using the Cat5e cable
Operating Specifications
Dimensions: 12” x 8.7” x 2”
Operating Temperature: -4 to 140°F (-20 to 60°C)
Storage Temperature: -58 to 176°F (-50 to 80°C)
Input Power: 48-57VDC
