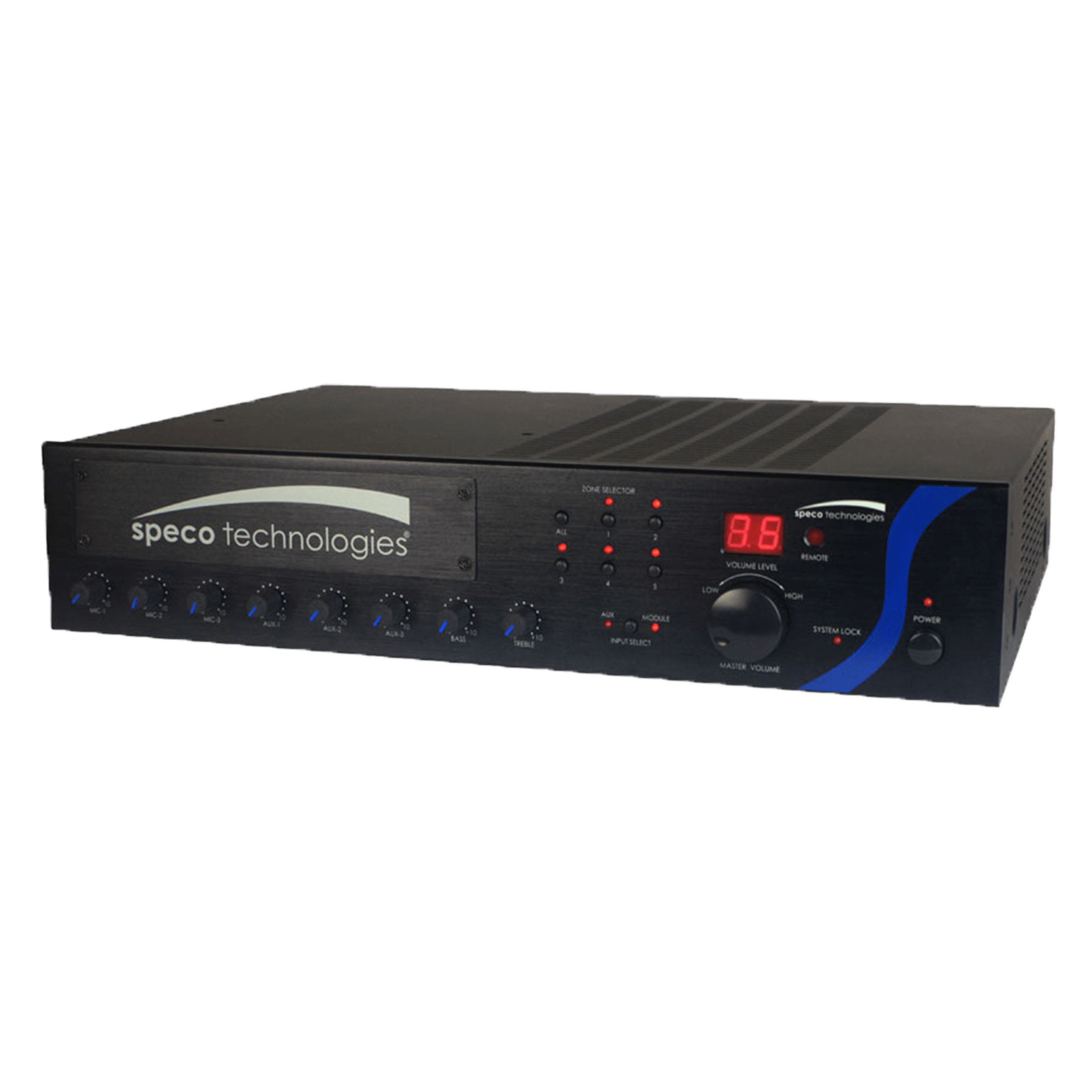

SPECO - PBM60A - 60W PA Mixer Amplifier with Module Bay
The PBM-A Series represents the next generation of Speco Technologies’ commercial public address amplifiers. We have taken your input and created the perfect amplifier for almost any application. In addition to the great features you’ve come to expect, the PBM-A series has ample inputs, an included IR remote control, an RS232 input for integration with control systems, front panel locking capability, and includes all rack-mount hardware. With a stylish appearance and all these additional features at a price similar to previous generation amplifiers, the PBM-A series is sure to become your go-to amplifier.
• Includes IR remote and rack-mounting kit
• 5 zoned 70 or 25V speaker outputs
• Non-zoned 4/8/16 Ohms output
• Master digital volume control with display
• Individual volume control for each input
• Front bass and treble controls
• Phantom power for all Mic inputs, and Mic1 selectable priority paging
• Digital front panel lock
• RCA or XLR line output
• Telephone paging input and Music-on-hold output
• RS232 input for integration with popular control systems
RMS Output Power.............. 60W
Max. Output Power.............. 120W
AC Power Consumption ...... 100W
Power Supply ......................AC115V, 60Hz
Zones................................... 5
Speaker Outputs.................. 4/8/16 Ohms (non-zoned), 70/25V (zoned)
Other Outputs......................Aux (RCA or XLR)
Inputs................................... 1 x AM Antenna (Press terminal), 1 x FM Antenna (BNC), 3 x Aux (Stereo RCA), 3 x Mic (XLR), 1 x RS-232, 1 x TEL (Terminal)
Frequency Response .......... 50Hz ~ 20kHz
Tone Control ........................Bass ± 10dB, Treble ± 10dB
THD ..................................... Less than 1% @ 1KHz
Signal/Noise Ratio............... >88dB
Controls ...............................Volume for each source, Master Volume, Vox Volume, MoH Volume, Tone, Source Selector, Zone Selector, Module
Telephone............................ TEL in and MoH Out
Indicators.............................Volume level, power, source, & System Lock
Dimensions.......................... 16.9” (W) x 3.4” (H) x 11.75” (D)
Weight ................................. 20 lbs.
Includes ............................... IR Remote Control, Rack Mounting Hardware
Listings ................................ CE, FCC, RoHS
