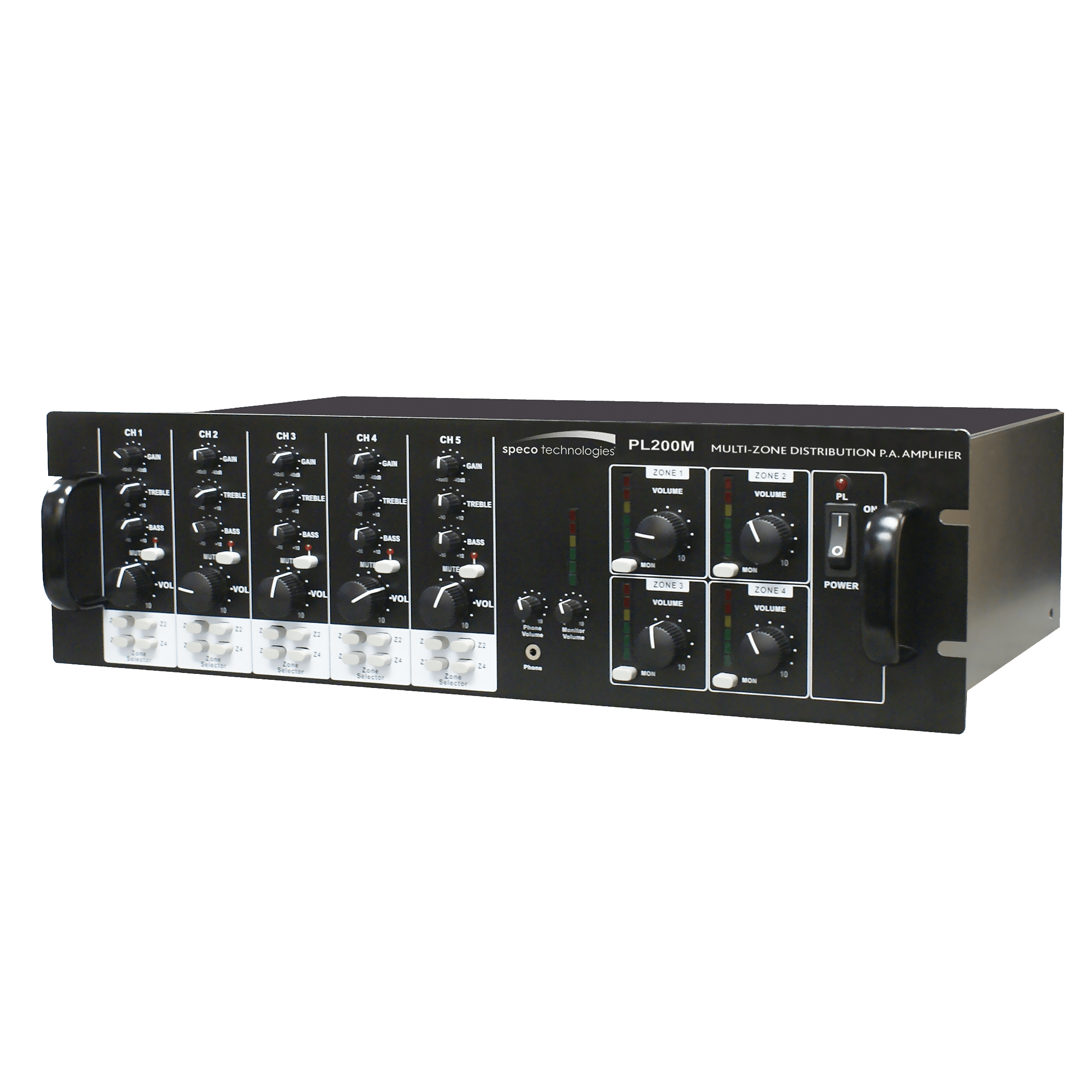

SPECO - PL200M - 160 Watt 5x4 Multisource/Multizone PA Amplifier
• Simultaneous playback of up to 5 sources into up to 4 zones.
• 4 sets of 4/8 Ohms or 70/25V outputs
• Telephone paging interface, and limited music on hold functionality via a monitor output
• Mic1 selectable priority paging with internal toggle
• Energy saving intelligent cooling fan
• Separate controls (gain, bass, treble volume) and mute for each source
• Separate volume control and LED power indicator for each zone
• Rack-mount design with built-in handles (3U)
• 3 combination XLR/ 1/4” inputs with selectable phantom power, line level or mic level
3 XLR / ¼” combination inputs with phantom, mic or line level selection switch / 2 RCA inputs
4 sets of 4 Ohms / 8 Ohms / 25/70V outputs
40W RMS power output per zone for 160W RMS total
Frequency Response: 60Hz – 17kHz (±3dB)
Dimensions: 19” (W) x 5.2” (H) x 12.2” (D)
Weight: 33.3 lbs.
