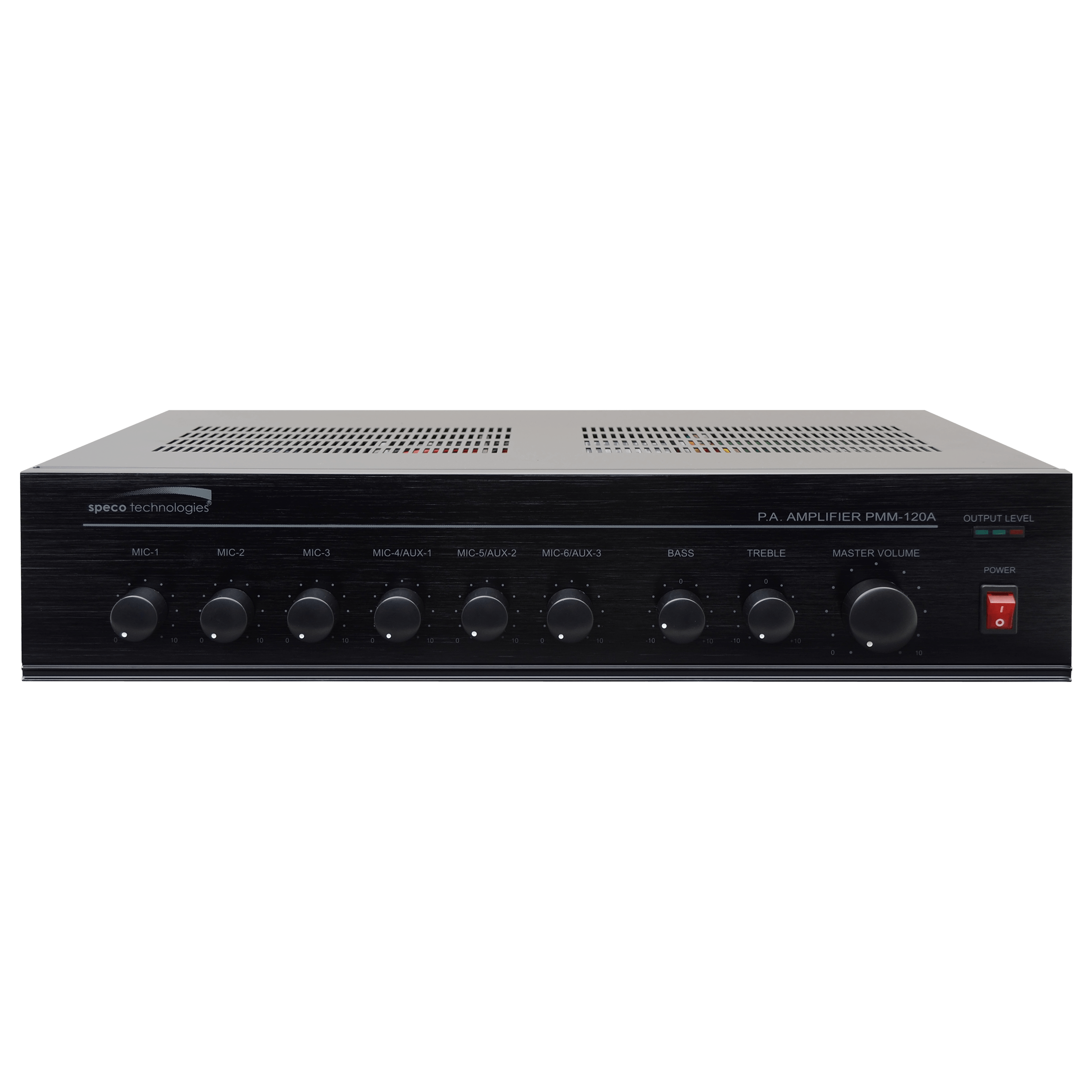

SPECO - PMM120A - 120W PA Mixer Power Amplifier with 6 Inputs
Speco Technologies’ UL-listed Contractor Series amplifiers are designed for long-running, everyday use. They can stand on their own to run a smaller installation, or be incorporated into a much larger job. With RMS power ranging from 30W to 120W, microphone and source-mixing ability, telephone paging interface, and music-on-hold capability, there’s practically no job where one of these amplifiers wouldn’t be a perfect fit!
RMS Output Power.............. 120W
Max. Output Power.............. 180W
AC Power Consumption....... 850W
Power Supply ......................AC 120V, 50/60Hz
Zones................................... 1
Speaker Outputs.................. 4/8/16 Ohms, 70/25V
Other Outputs...................... Tape (RCA), Booster (RCA), Pre-Amp (RCA)
Inputs................................... 3 x Mic (XLR), 1 x Mic (XLR or Terminal) 3 x Mic (XLR), 1 x Mic (XLR or Terminal)
3 x Mic/Aux (Terminal or Stereo RCA), 1 x EQ/Mix (RCA)
1 x TEL (Terminal)
Frequency Response .......... 50Hz ~ 15KHz (±3dB)
Tone Control ........................Bass ± 10dB, Treble ± 10d
THD ..................................... Less than 1% @1KHz
Signal/Noise Ratio............... Microphone: >60dB, TEL: >60dB, Line: >70dB
Controls ...............................Volume for each source, Master Volume, Vox Sensitivity, TEL Input Level, MoH Volume, Tone
Telephone............................ TEL in and MoH Out
Indicators.............................Power, power level
Dimensions.......................... 16.9” (W) x 3.5” (H) x 11.8” (D)
Weight ................................. 23.6 lbs.
Listings ................................ UL, cUL, CE, FCC
