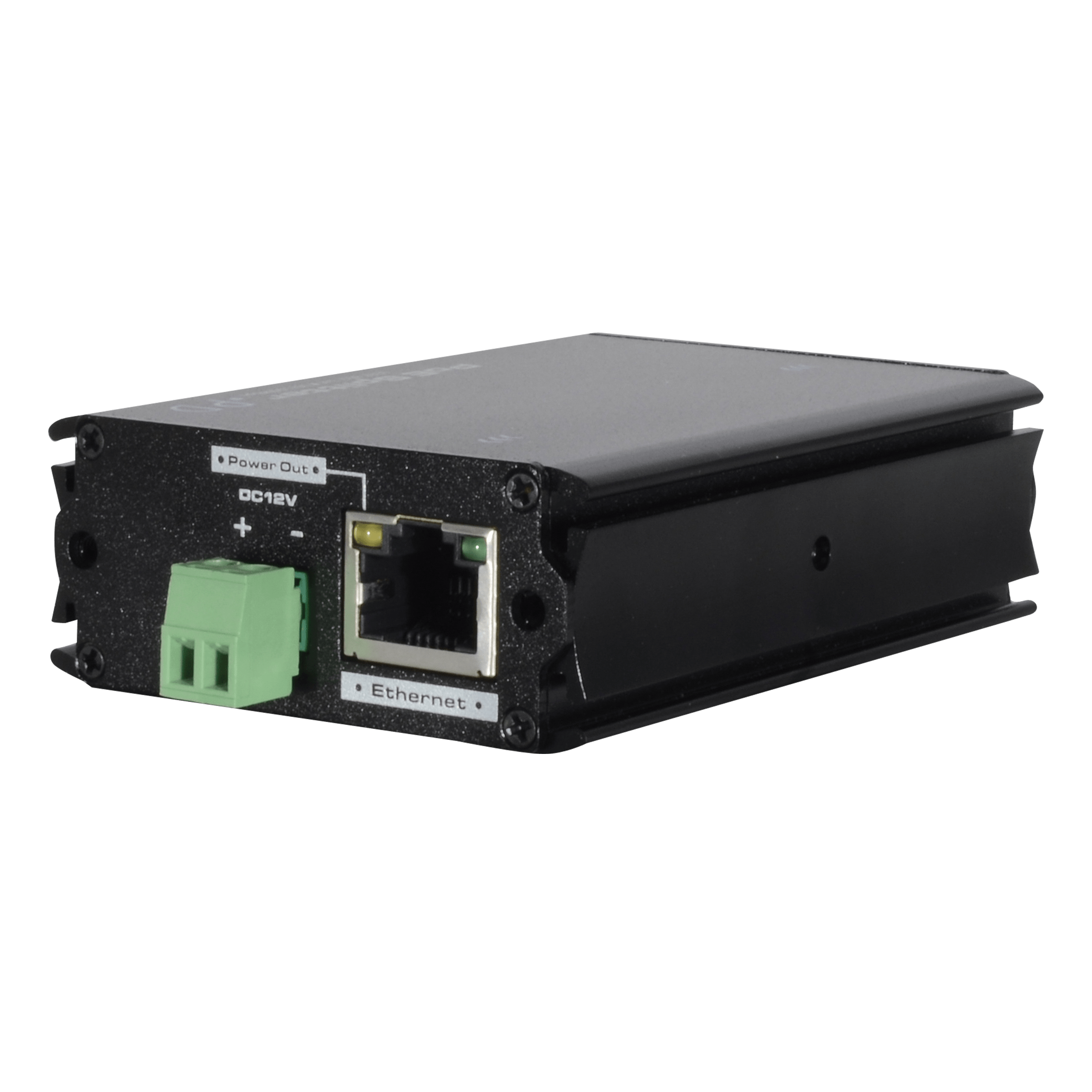

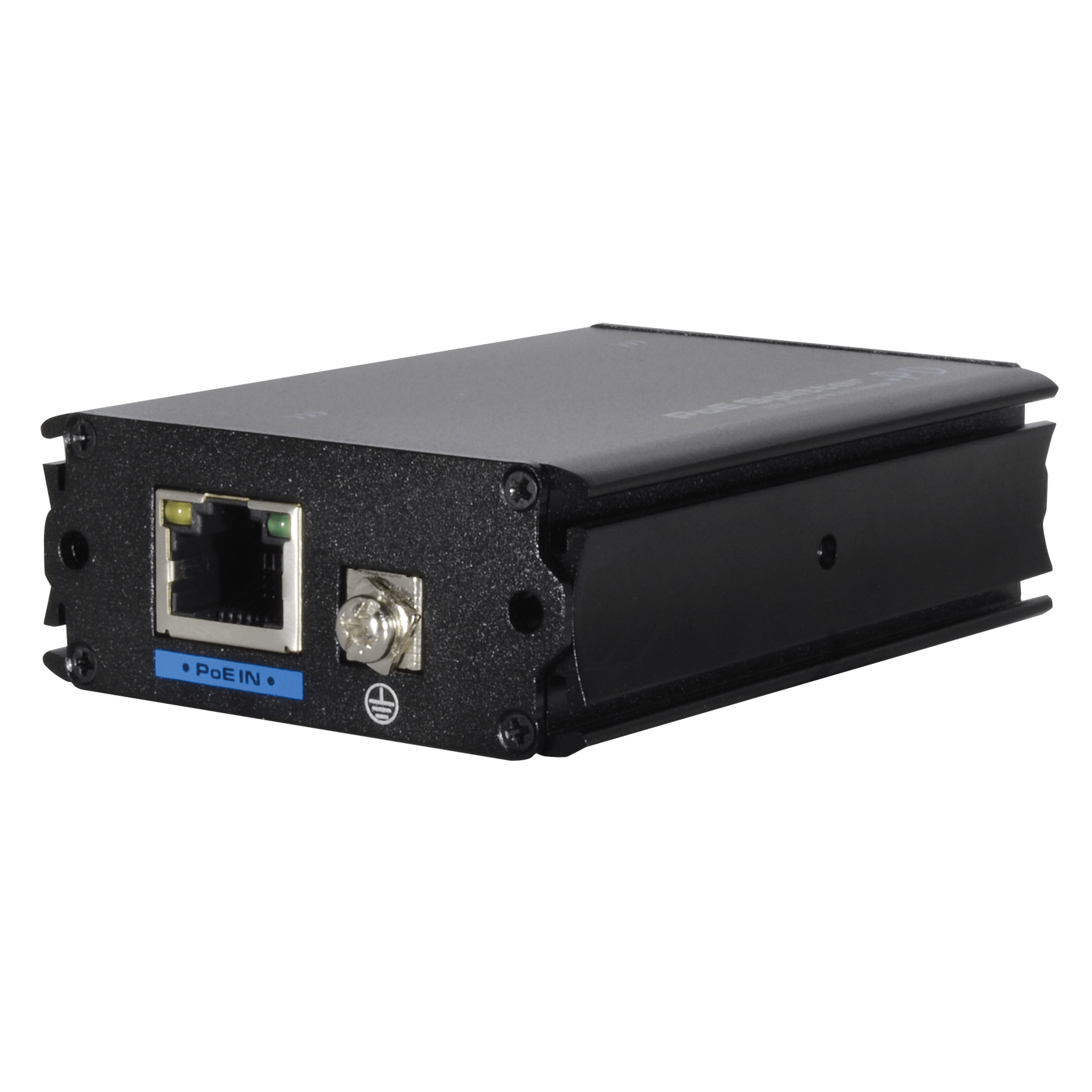

SPECO - POESPL - 802.3at/af PoE Splitter

Part number:
POESPL
Price:

• Power non-PoE IP cameras via a PoE signal by splitting the signal into Ethernet and power

• POESPL can handle up to 20W 802.3at PoE power

• Ethernet speed up to 10/100MBPS

• 2 year warranty

Ports ...............................1 x RJ-45, 1 x 2-pin terminal block output, 1 x RJ-45 input
Ethernet Speed...............Up to 10/100MBPS
PoE Standards ...............IEEE 802.3at/af
PoE Power......................20W Max
Input Power ....................PoE 36V – 57V
Output Power..................12VDC
Operating Temperature...32º F – 131º F
Storage Temperature......-40º F – 185º F
Operating Humidity.........0% – 95%
Dimensions.....................4.7” (W) x 2.4” (H) x 1.5” (L)
Weight ............................8 oz.

Name
Description
Size
Downloads
File
Spec Sheet
0.4mb
File
User Manual
0.2mb
