SPECO - SP6MAT - 6.5" 25/70V Speaker with Backbox
Speco Technologies’ Multi-Application Series was designed to make the contractor’s work as easy and time-efficient as possible.

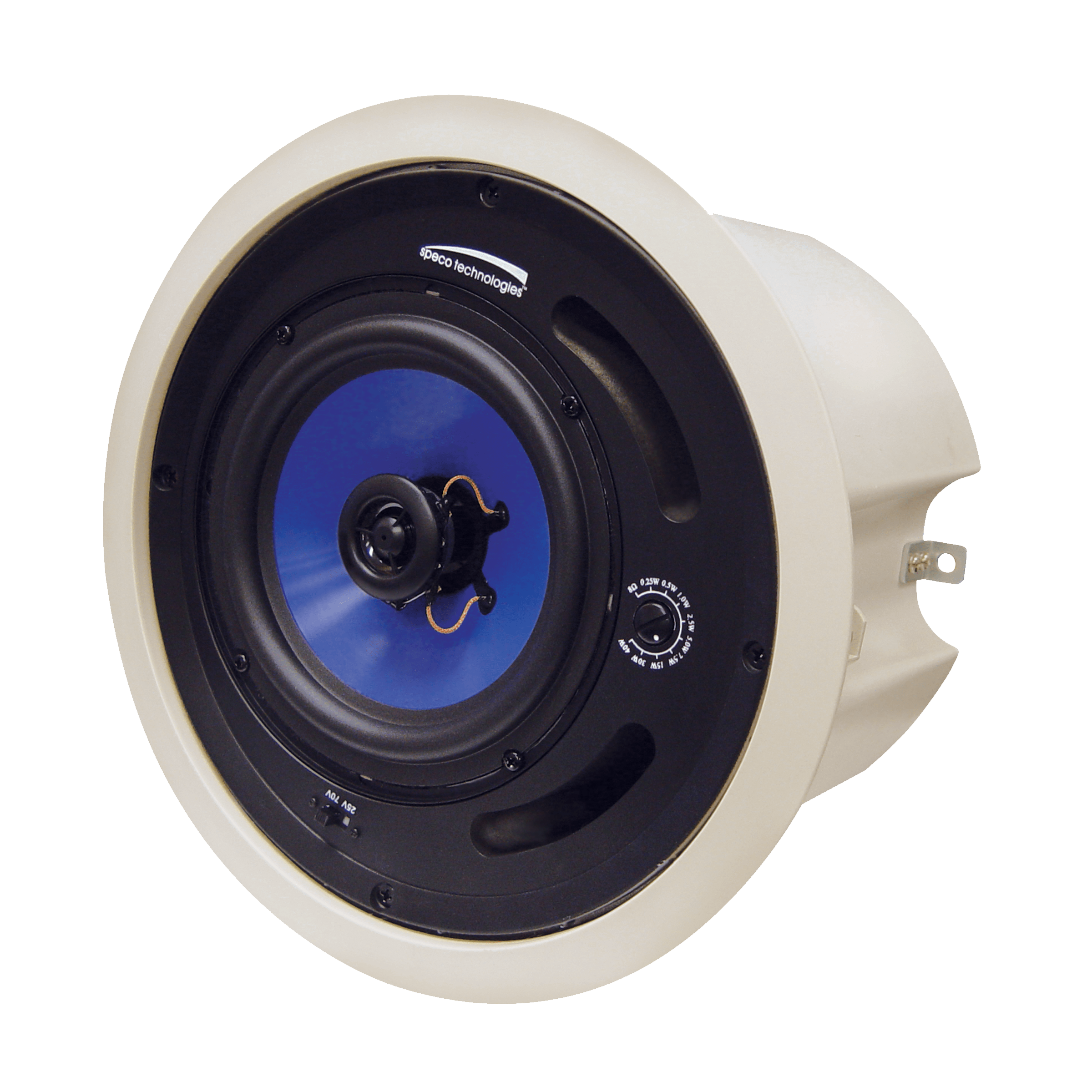

Our all-in-one unit comes pre-assembled with back can and mounted transformer. It features a quick-flip 70 or 25 Volt selector switch and an easy-select transformer wattage dial. The choice of 8 or 9 individual wattage tap settings covers a complete range of uses. This flame-retardant ABS unit also comes with insulated wires, has an attached metal seismic safety loop and built-in easy mount tabs for securing the unit. The MA Series is the ideal, all-purpose value speaker covering a wide range of commercial applications.
The furnished 8 Ohm tap selector also means the speakers can be kept on-hand for unexpected residential installation needs.
RMS Power .................................. 40W
Max. Power................................... 80W
Transformer Type ......................... 70/25V (selectable)
Transformer Power Taps .............. 40W, 30W, 15W, 7.5W, 5W, 2.5W 1W, 0.5W, 0.25W & 8 Ohms
Sensitivity (1W/1M)....................... 88dB
Maximum SPL (Pmax/1M)............ 92.3dB
Driver Impedance ......................... 8 Ohms
Magnet.......................................... 10 oz. ferrite
Frequency Response Range........ 34Hz ~20kHz
Dispersion @ 1000Hz .................. 120º Conical
Drivers .......................................... 6.55” Polypropylene 1” Mylar tweeter
Speaker Dimensions .................... 11.02” (Dia.) x 7.58” (D)
Mounting Dimensions................... 9.88” (Dia.)
Weight .......................................... 5.5 lbs.
Material......................................... Baffle: Fire-resistant ABS Backcan: Fire-resistant ABS Grille: Metal
Color............................................. Off-White or Black
