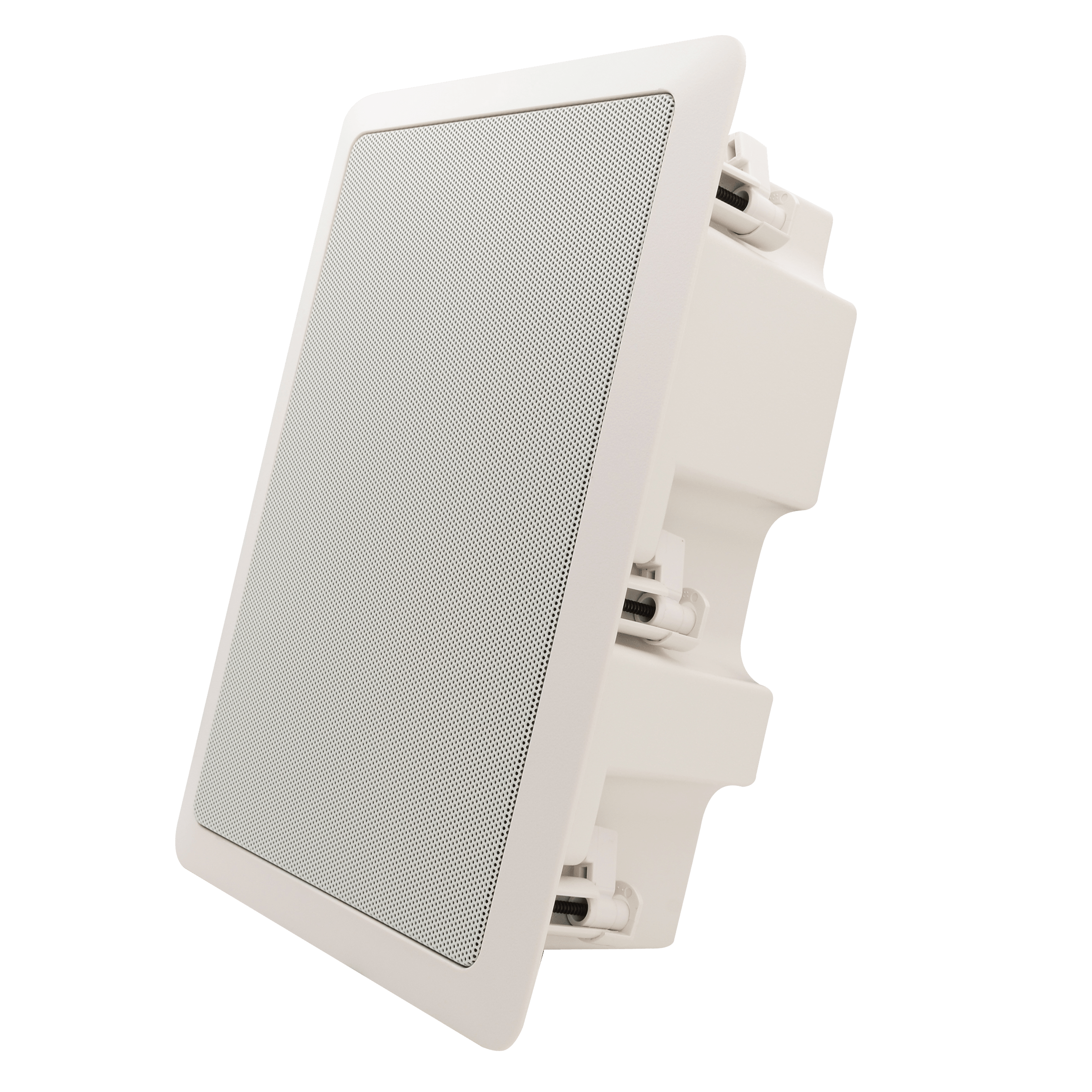

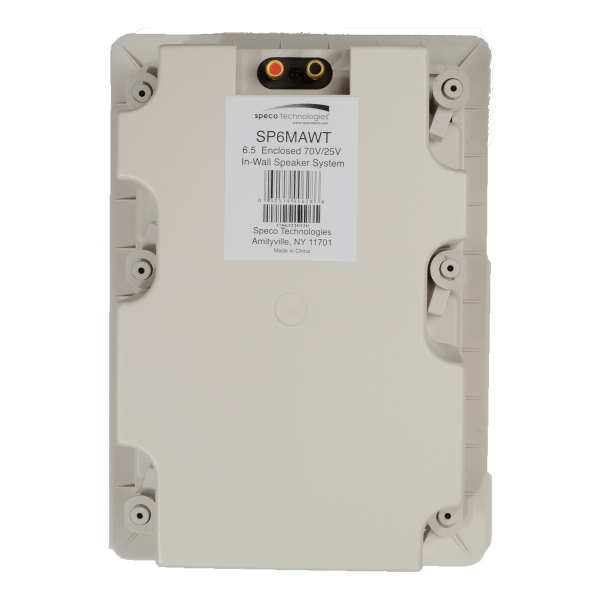

SPECO - SP6MAWT - 6.5" Premium In-Wall MA Speaker with Fiberglass Cone & Backbox

Part number:
SP6MAWT
Price:

Speco Technologies’ Multi-Application Series was designed to make the contractor’s work as easy and time-efficient as possible.



Our all-in-one unit comes pre-assembled with back can and mounted transformer. It features a quick-flip 70 or 25 Volt selector switch and an easy-select transformer wattage dial.  The 8 individual wattage tap settings cover a complete range of uses.  This flame-retardant ABS unit also comes with insulated wires and built-in easy mount tabs for securing the unit.  The MA Series is the ideal, all-purpose value speaker covering a wide range of commercial applications.  The furnished 8 Ohm tap selector also means the speakers can be kept on-hand for unexpected residential installation needs.

Frequency Response: 50Hz – 20kHz

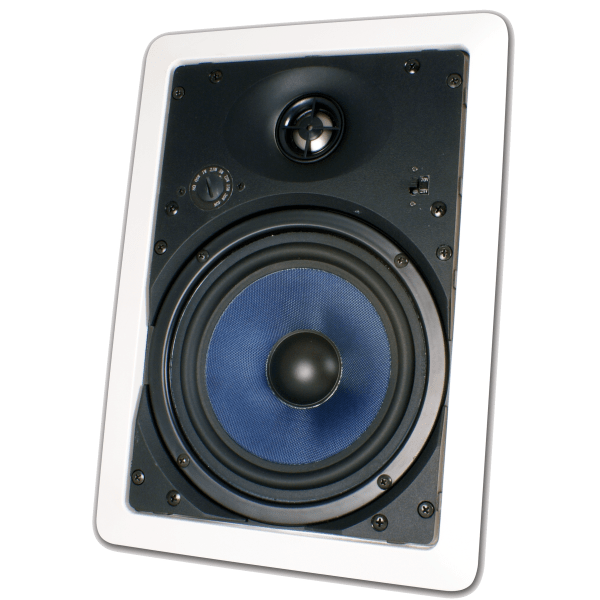

Woofer: 6.5” Fiberglass with rubber surround

Tweeter: 1” Titanium, pivoting

Sensitivity: 89±3dB

Impedance: 8 Ohms

RMS Power: 40W

Max. Power: 80W

Transformer: Selectable 70/25V (40W, 30W, 15W,

7.5W, 5W, 2.5W, 1W, 0.5W, & 8 Ohms)

Minimum Mounting Depth: 4.13”

Mounting Dimensions: 7.5” (W) x 10.75” (H)

Dimensions: 8.63” (W) x 12” (H) x 4.25” (D)

Weight: 5.5 lbs.

Name
Description
Size
Downloads
File
Spec Sheet
0.3mb
File
User Manual
0.1mb
