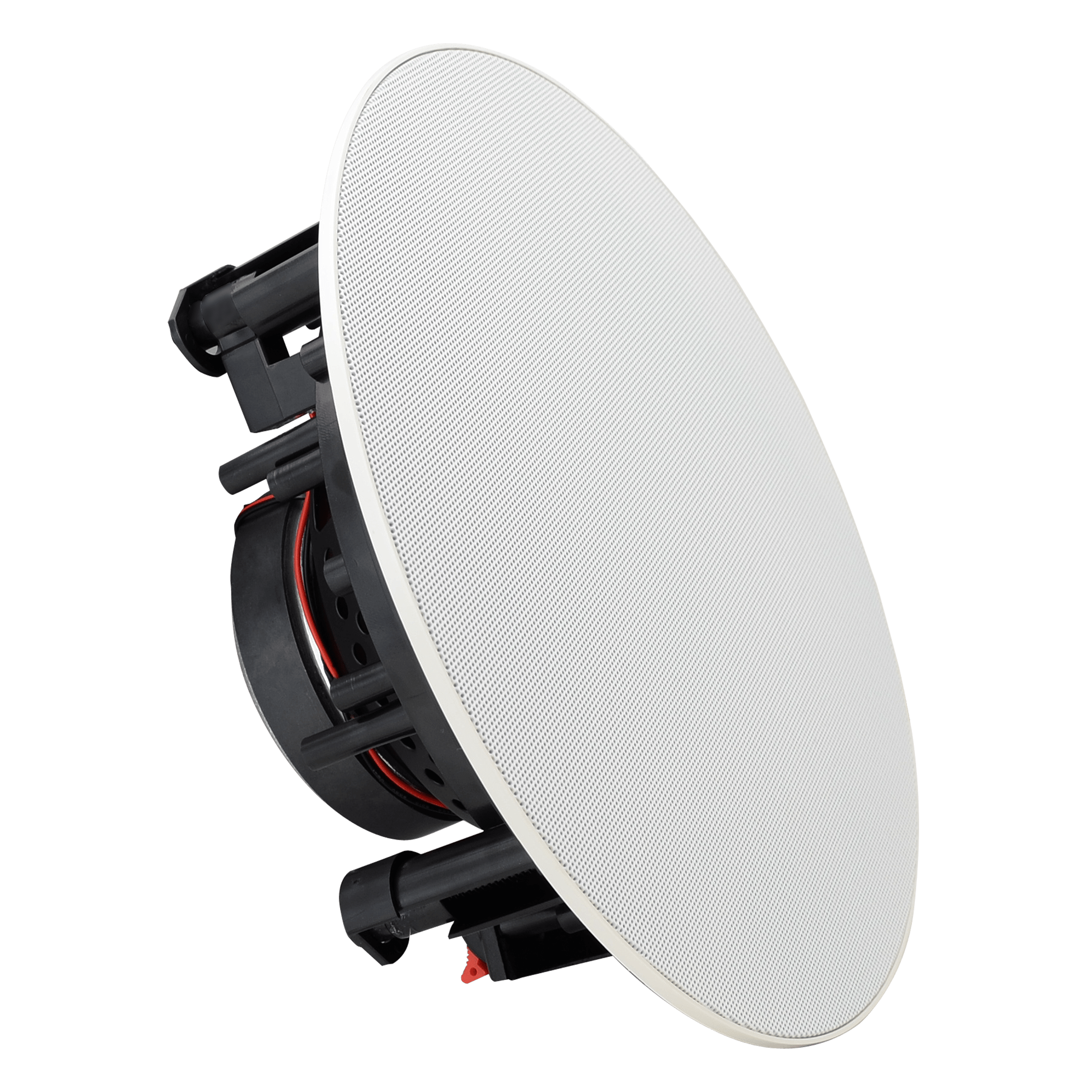

SPECO - SPCDC6 - 6.5" Custom Designer Series In-Ceiling Speaker (Pair)
• Integrated C-clamp mounting system
• Polymer woofer cones for improved acoustic response
• Liquid-cooled titanium anodized tweeters with a
minimum diffraction pivoting island
• Powder coated grille may be painted to match any décor
• Lifetime warranty
Tweeter............................................... 1/2” (zero diffraction) pivoting poly-laminate, liquid cooled dome
Woofer................................................ 6.5” mica filled poly laminate cone with rubber surround
Crossover ........................................... 6dB per octave electro-acoustic
Input Connection ................................ Push terminals
Recommended Amplifier Power......... 5W to 65W (100 watts peak)
Impedance.......................................... 8 Ohms
Frequency Response ......................... 48Hz ~ 21kHz
Sensitivity (1W/1M)............................. 90dB
Baffle .................................................. Poly-carbonate for reduced resonance with C-clamp mounting system
Grille ................................................... Corrosion resistant powder coated metal, magnetic
Outside Dimensions ........................... 9” round (Dia.)
Depth.................................................. 3.46” (mounted in 1/2” drywall)
Retrofit Cutout Diameter..................... 7.75” (use template before cutting)
