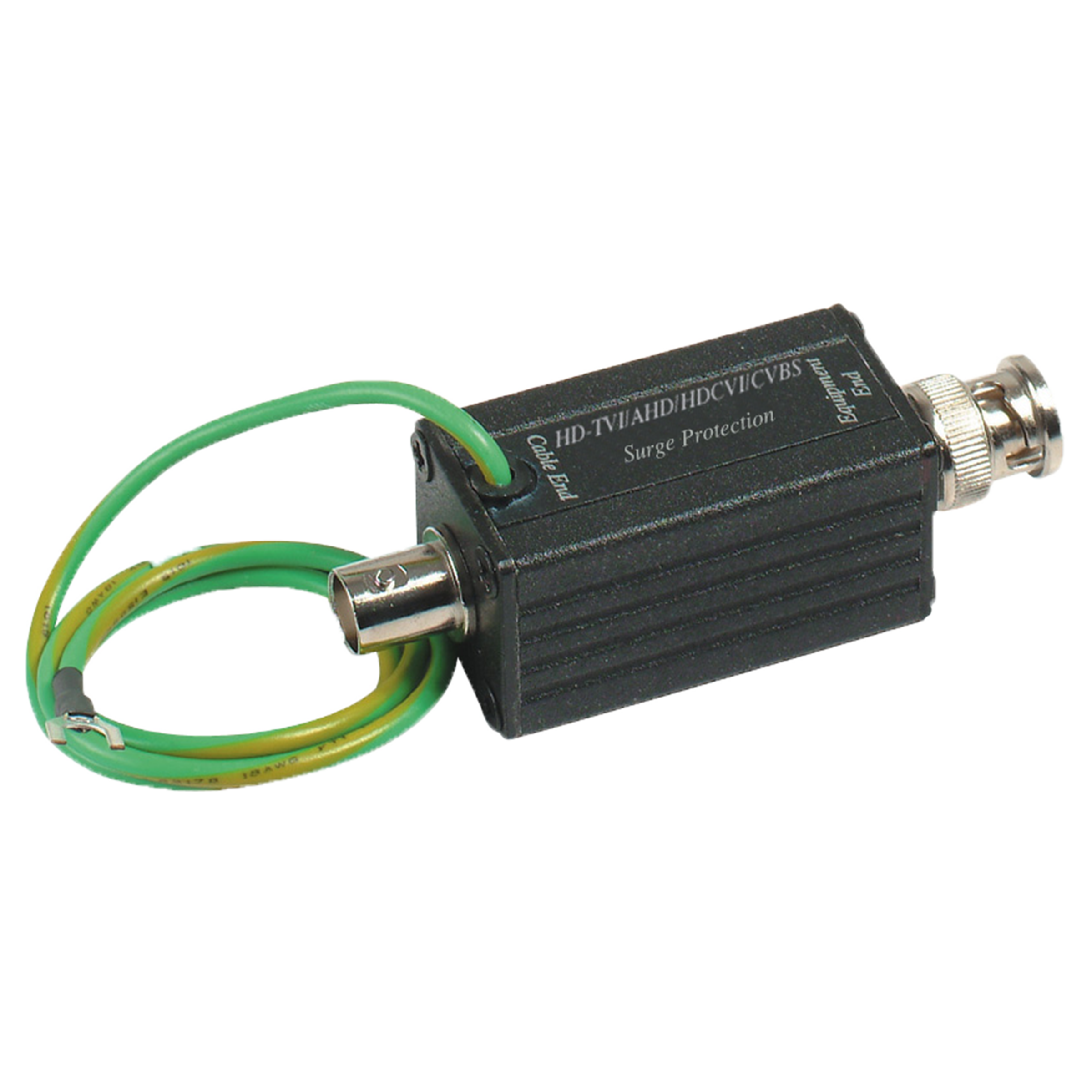

SPECO - SPCOAX2 - Coaxial Video Surge Protector, TVI, CVI, AHD, 960H
• lBNC male to BNC female
• lProvides protection for analog HD-TVI, HDCVI, AHD, and CVBS cameras
• lComply with IEC 61000-4-5
• lBuilt in EFT (impulse noise) lightning protection
• Sold each but recommended to use in pairs to protect both camera and recorder
Input and output interface: BNC (Male) x 1 & BNC (Female) x 1
Surge Protection Attack Time: <1nS
Starting voltage surge: 6V
Maximum Clamping Voltage: 25V
Reference Standard: IEC 61000-4-5
Signal insertion loss: 0.8db @ 42 MHz
Maximum discharge current: 15 KA ( MAX )
Environmental Specifications: Operation: 32 to 131°F (0 to 55℃), Storage: -4 to 185°F (-20 to 85℃), Humidity: up to 95%
Frequency Response Range: 140Hz - 20kHz
Dimensions (L x W x H): 3.12” x 1” x 1” (79.3 x 25.4 x 25.4 mm)
Weight: .2 lbs (75g
