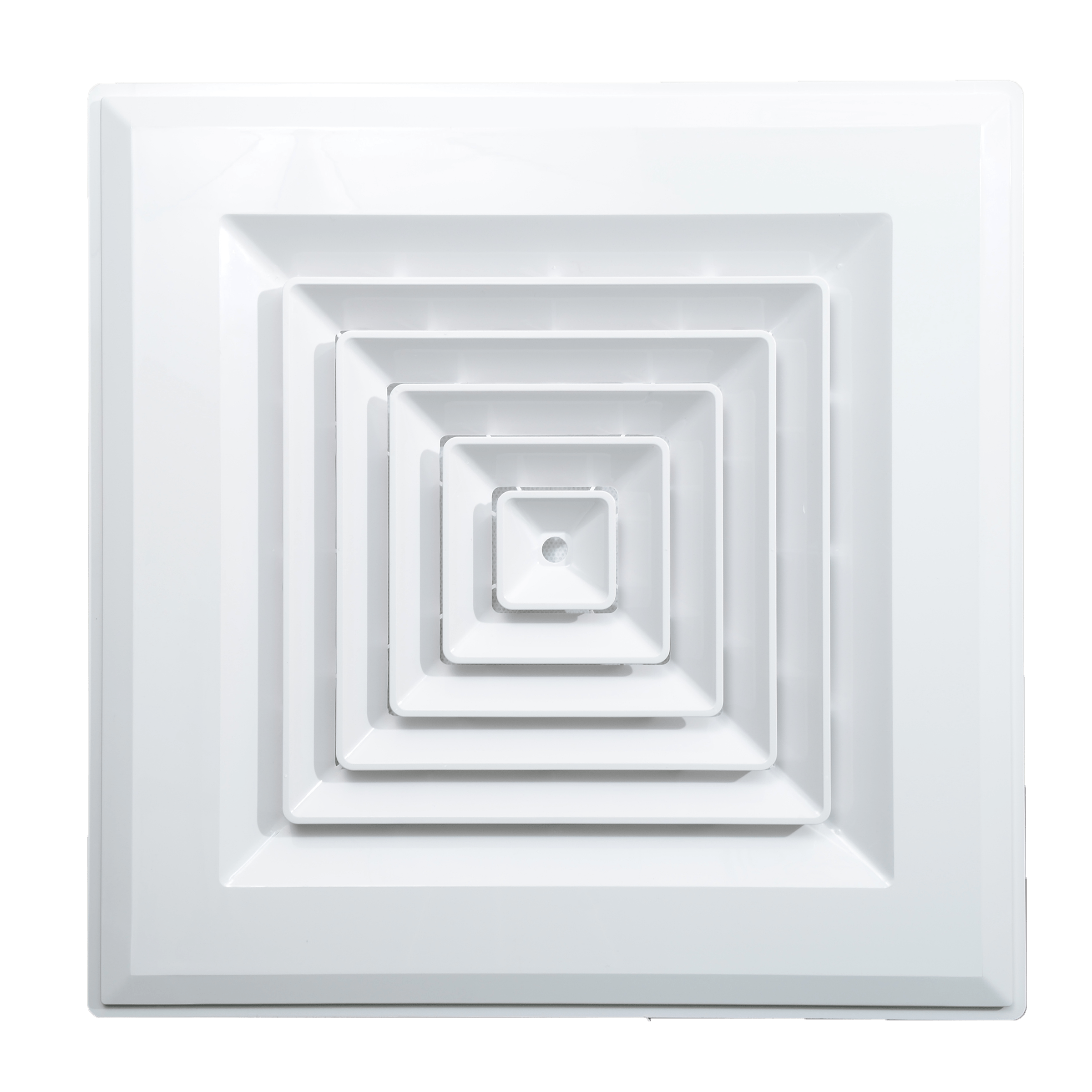

SPECO - SPCT8T - 8" Ceiling Tile Speaker w/ 70/25V Transformer & Cross Tee
• Easy select transformer dial
• 25V or 70V selector switch
• Fits directly into a 2’x2’ ceiling tile grid
• Smooth vent facade design
• Includes 2’ rail for mounting in a 2’ x 4’ ceiling grid
• Lifetime warranty
RMS Power ............................30W
Max. Power.............................60W
Transformer Type ...................70/25V (selectable)
Transformer Power Type ........20W, 10W, 5W, 2.5W, 1.25W & 8 Ohms
Termination Type ....................Press terminal
Sensitivity (1W/1M).................89dB
Maximum SPL (Pax/1M).........97.1dB
Driver Impedance ...................8 Ohms
Magnet....................................10 oz. ferrite
Frequency Response Range......50Hz ~ 20kHz
Dispersion @ 1000Hz............. 160º Conical
Driver....................................... 8” polypropylene woofer, 0.75” Mylar tweeter
Speaker Dimensions............... 23.78” (W) x 23.78” (H) x 4.94” (D)
Mounting Dimensions ............. n/a
Minimum Mounting Depth....... 6.5” (Dia.)
Weight ..................................... 7.26 lbs.
Material.................................... Baffle: High impact polystyrene
Color........................................ White
