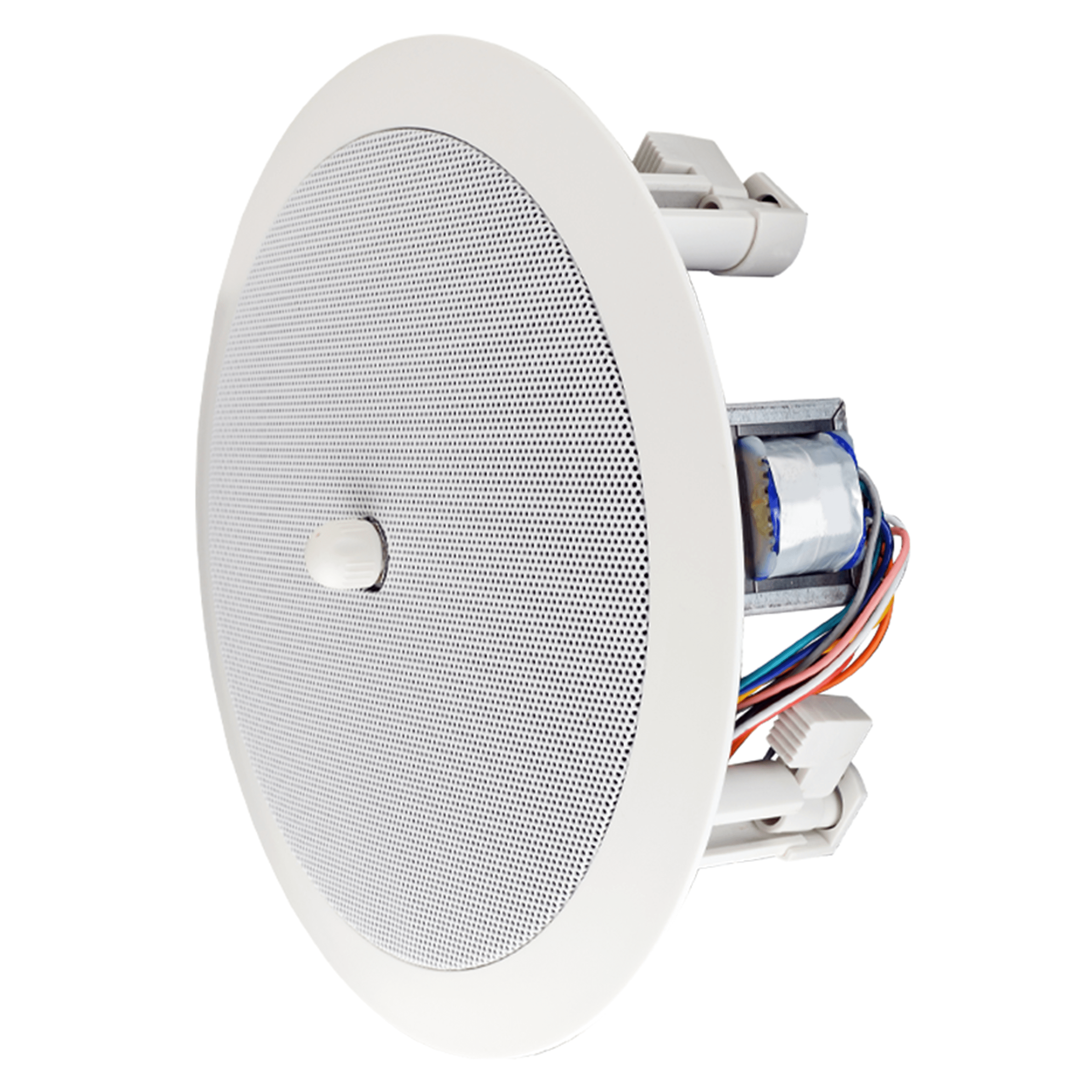

SPECO - SPG66TC - 6" Speaker / New Grill Combo w/ Volume Control
• Modern style mesh steel grille
• 70/25V transformer with colored leads
• Dog-ear mounting clamps for secure installation
RMS Power ............................10W
Max. Power.............................15W
Transformer Type ...................70/25V
Transformer Power Type ........5W, 2.5W, 1W, 0.5W, 0.25W & 8 Ohms
Termination Type ....................Colored leads
Sensitivity (1W/1M) .................91dB
Maximum SPL (Pax/1M) .........100dB
Driver Impedance ...................8 Ohms
Magnet....................................5 oz. ferrite
Frequency Response Range ......120Hz ~ 20kHz
Dispersion @ 1000Hz .............120º Conical
Driver .......................................6” paper cone woofer, 0.8” dual cone tweeter
Speaker Dimensions ............... 9” (Dia.) x 3” (D)
Mounting Dimensions ............. 7.625” (Dia.)
Minimum Mounting Depth ....... 2.4”
Weight ..................................... 2 lbs.
Material .................................... Baffle: High impact polystyrene Grille: Steel
Color ........................................ Off-White
