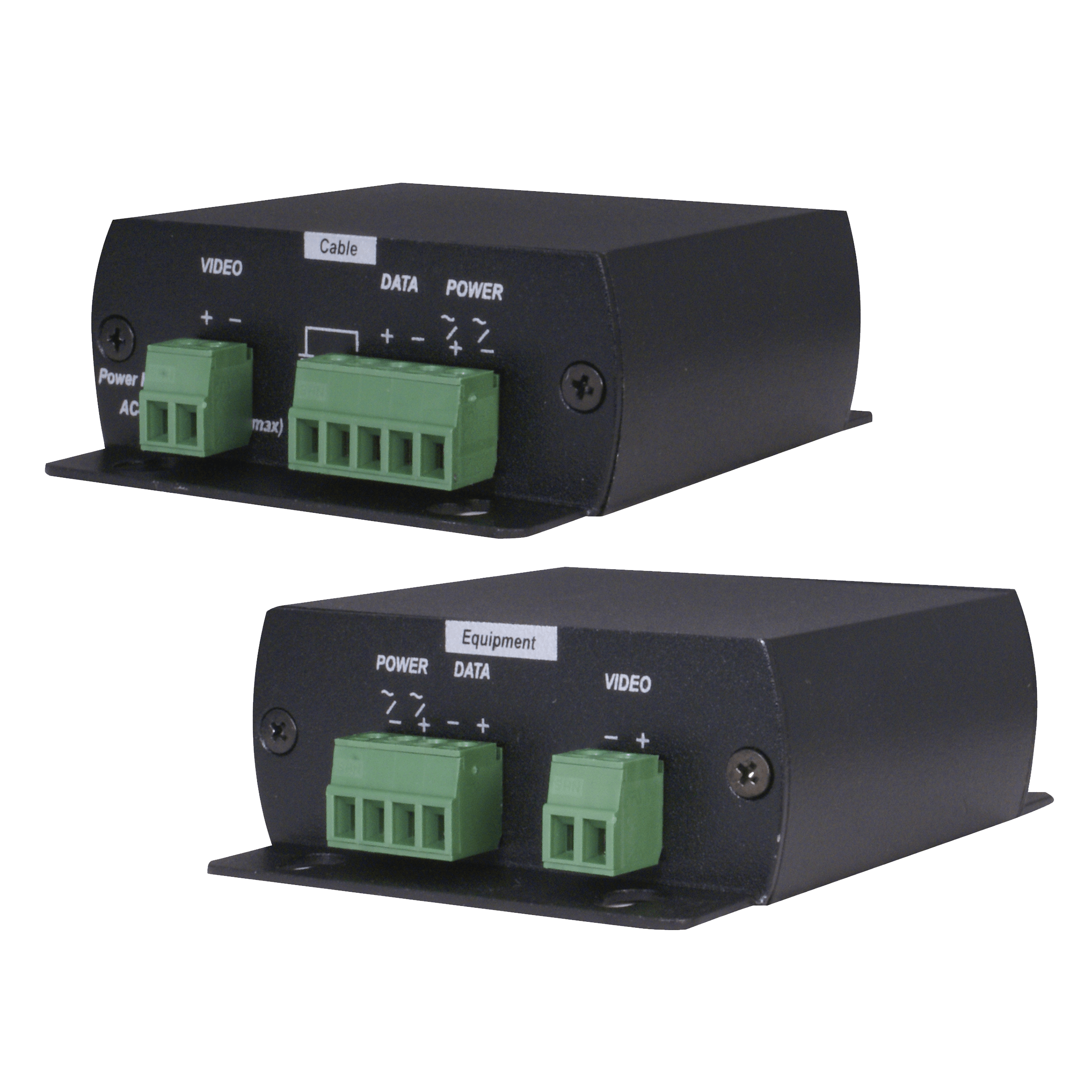

SPECO - SPUTPVD - UTP Data Surge Protector Terminal Connector

Surge Protection Attack Time: 1 ns

Maximum Surge Voltage: 4 KV

Surge Life: 300 surges of 100Amps

Normal Resistance Across Coax: 10,000 MΩ

Surge Resistance: Approx. 0Ω

BAND PASS: 0 ~1 GHZ

Power Passing Capatibility: 130V AC/DC, 65 Vrms @10Amps

Insertion Loss: Less than 0.2 dB

Return Loss (75Ω): 16 dB

Connectors: Terminal

Unit Dimensions: 2.6” (L) x 1” (W) x 1” (H) (65x25x25mm)

Weight: .14 lbs (65g)
