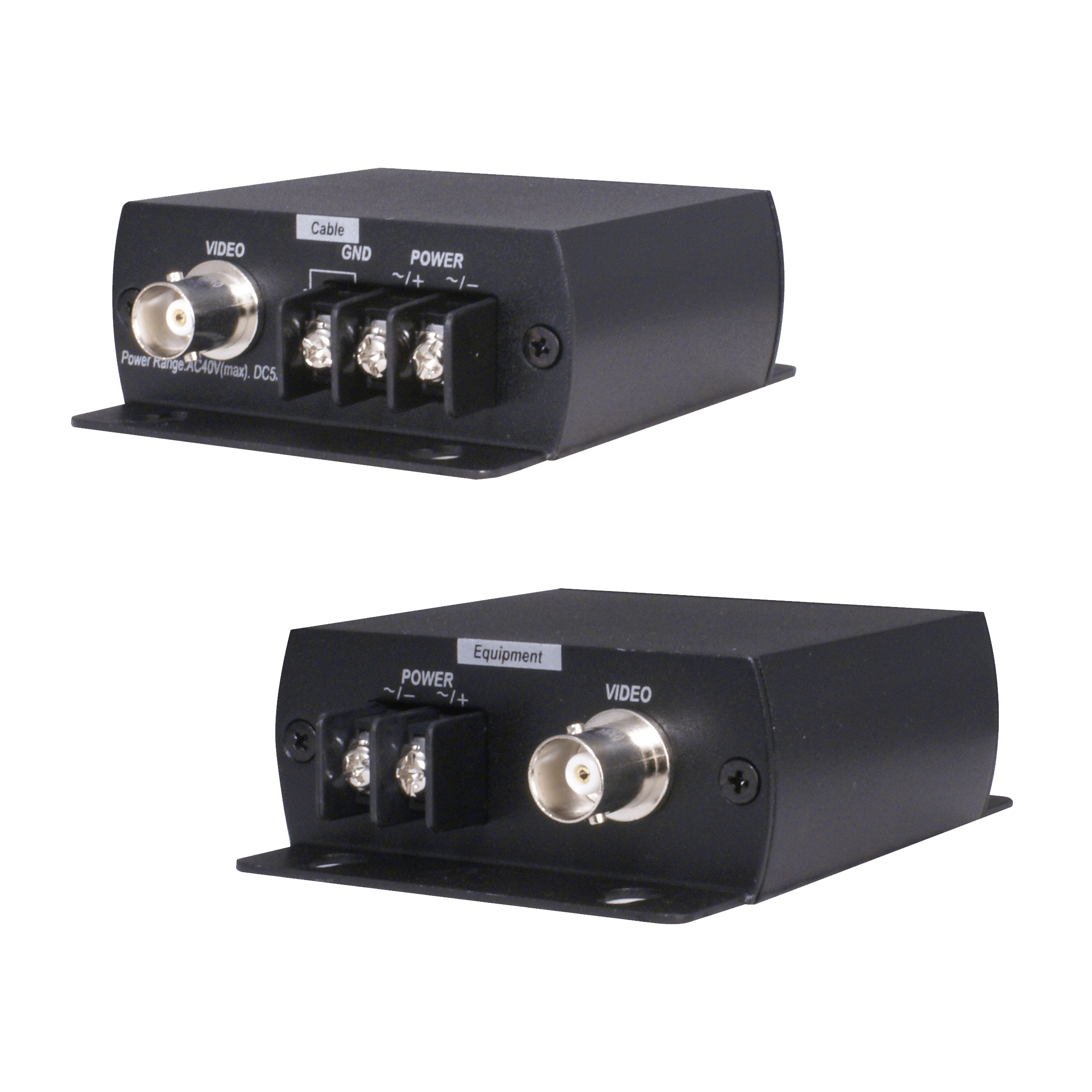

SPECO - SPVP - Video & Power Surge Protector

Surge Protection Attack Time: 1 ns

Maximum Surge Voltage: 4 KV

Surge Life: 300 surges of 100Amps

Normal Resistance Across Coax: 10,000 MΩ

Surge Resistance: Approx. 0Ω

BAND PASS: 0 ~1 GHZ

Power Passing Capatibility: 130V AC/DC, 65 Vrms @10Amps

Insertion Loss: Less than 0.2 dB

Return Loss (75Ω): 16 dB

Power IN Put: AC 40V(MAX), DC56V(MAX)

Connectors: Terminal

Unit Dimensions: 3.4” (L) x 2.6” (W) x 1” (H)

Weight: .3 lbs
