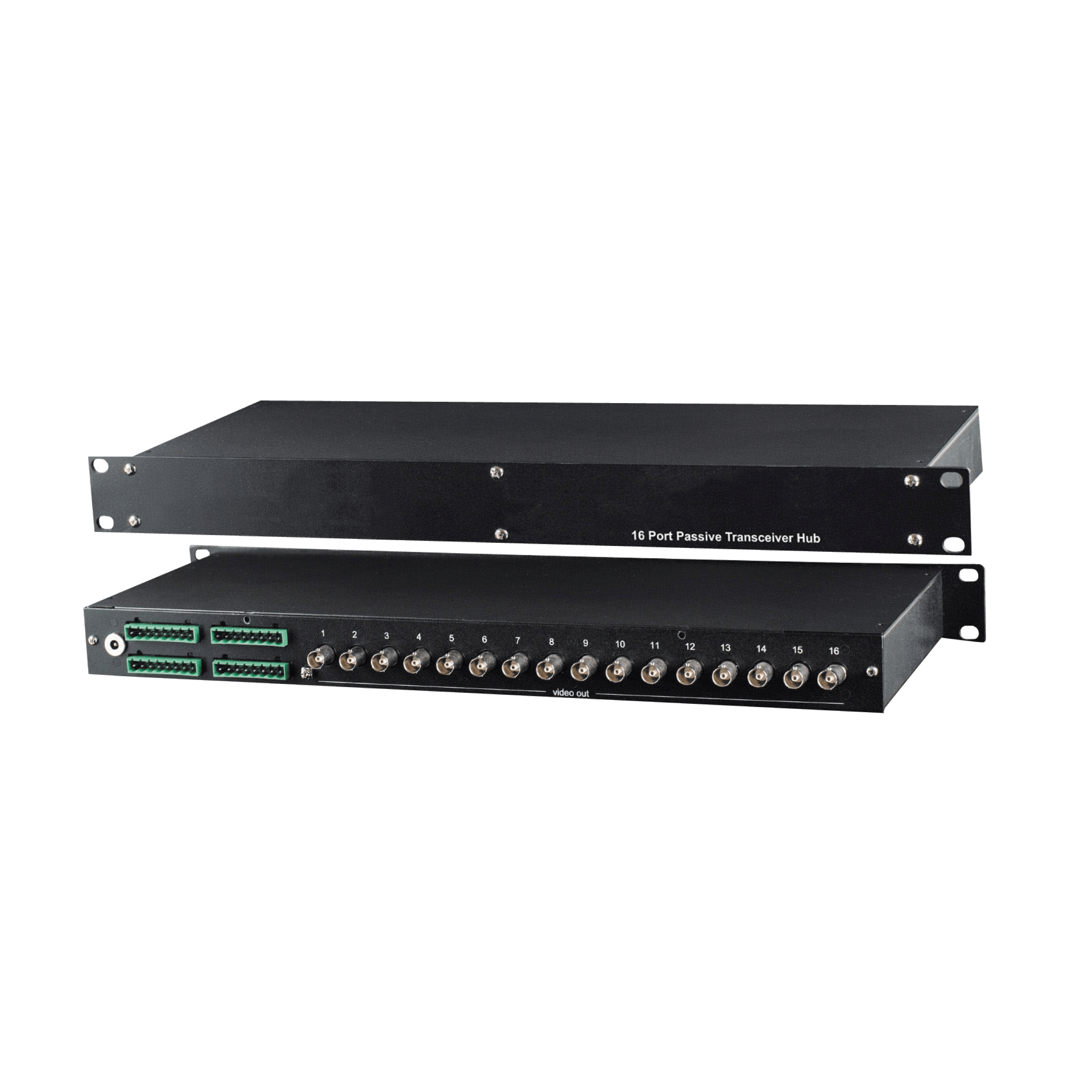

SPECO - TVI16UTP - 16 Channel Passive Transceiver
Send TVI camera signals up to 800’ over UTP cable.
16 port passive HD video transceiver in 1U 19” rack mounting panel.
Choice of 4 x RJ45 or 4 sets x 8 pin removable screw terminal for 16 channels of HD-TVI inputs /outputs.
Also works with AHD/CVI/CVBS signals over UTP cable.
Passive, no power required.
Eliminate coaxial cable.
Use in conjunction with TVIUTP and TVIUTPPT (sold separately)
Built in ESD, EFT (impulse noise) and transient protection.
|
Video Input /Output |
BNC x 16 (1 Vp-p 75 Ohm) |
|
|
RJ45 Output |
8 Pin removable terminal x4 (100 Ohm) /RJ45 x4 |
|
|
Cable |
CAT5e/CAT6 or UTP |
|
|
Bandwidth |
50Hz ~ 60MHz ( -3dB ) |
|
|
Transmission Distance |
1080P: HD-TVI 820’ (250M), AHD 820’ (250M), HD-CVI 984’ (300M) 4M/5MP: HD-TVI 656’ (200M), AHD 656’ (200M), HD-CVI 820’ (250M) CVBS: 984’ (300M) |
|
|
Power |
Passive |
|
|
ESD protection |
30 KV(Air) 15 KV (Contact) ; IEC 61000-4-2 compliant |
|
|
EFT protection |
40A(5/50ns) ; IEC 61000，-4-4 compliant |
|
|
Lightning protection |
2A (8/20μs) ; IEC 61000-4-5 compliant |
|
|
Surge Protection Attack Time |
< 1 nS |
|
|
Environmental Specifications |
Operation: 32 to 131°F (0 to 55℃), Storage: -4 to 185°F (-20 to 85℃) Humidity: up to 95% |
|
|
Dimensions (W x H x D) |
19” (483mm) x 4.1” (103.5mm) x 1.73” (44mm) (1U) |
|
|
Weight |
3 lbs. (1380g) |
|
