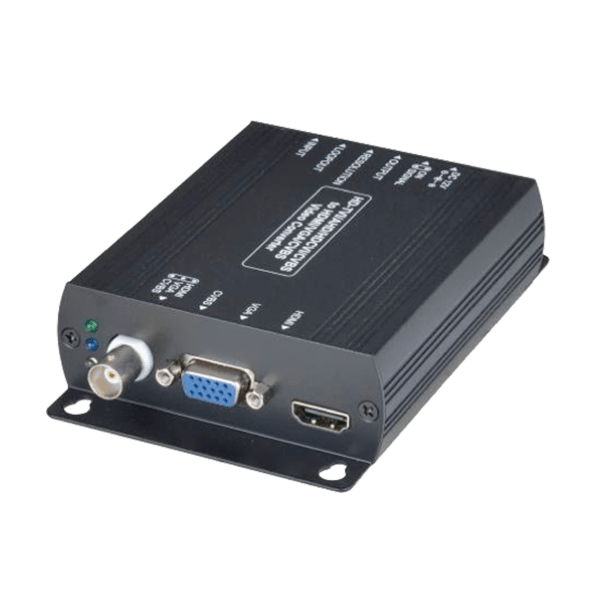

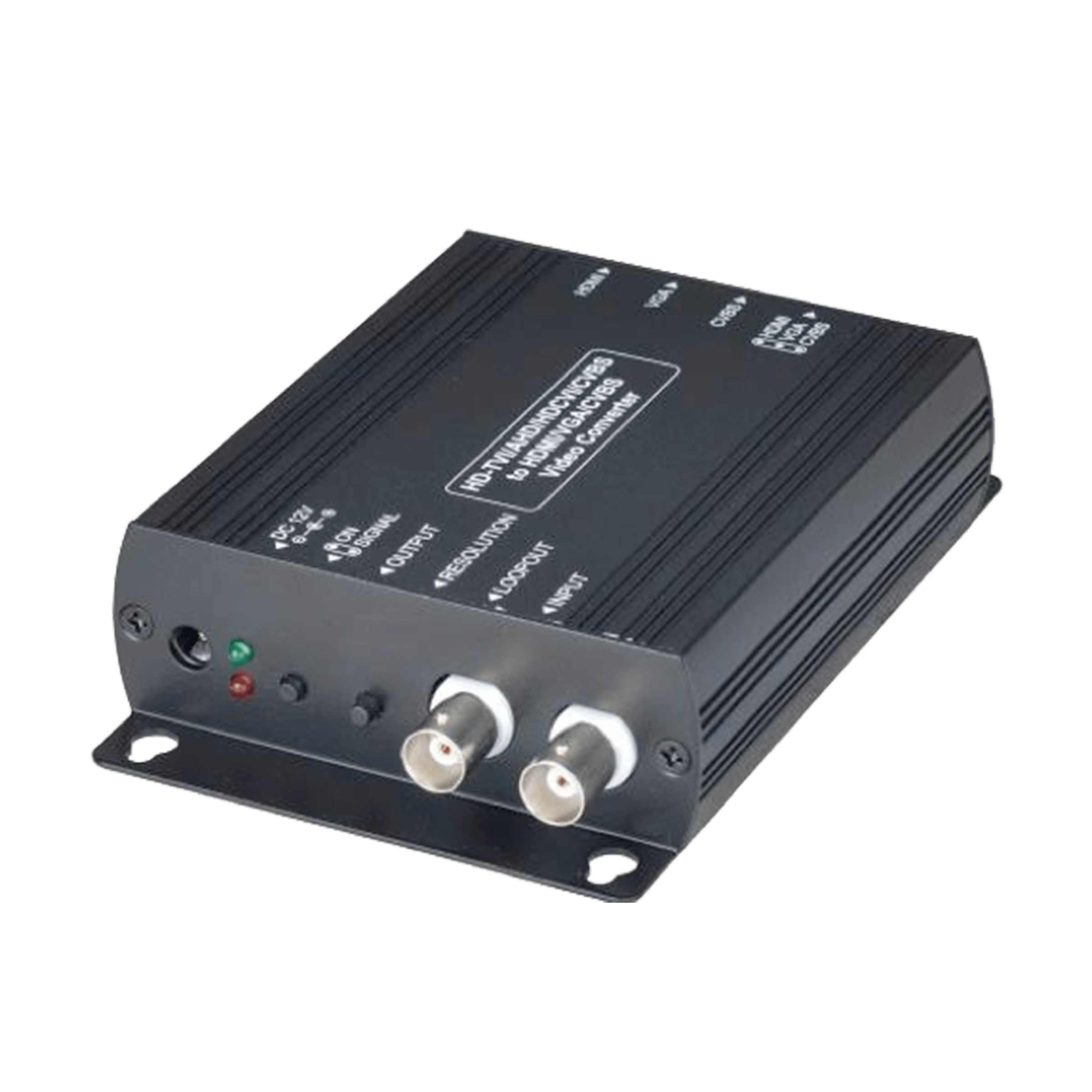

SPECO - TVIHD - TVI to HDMI Converter
• Converts HD-TVI/AHD/HDCVI/NTSC/PAL/960H signals to HDMI, VGA or Composite Video.
• Supports: 720p@25/30/50/60, 1080p@25/30Hz
• Built-in loopout
• Built-in LED lights on unit to indicate selction
• OSD displayed on monitor to indicate input/output settings
• Includes 12V power supply
|
Video Input： |
HD-TVI/AHD/HD-CVI 720p@25/30/50/60Hz, 1080p@25/30Hz, NTSC/PAL/960H |
|
Video Output |
HDMI: 720p/60, 1080p/60 VGA: 800x600/60, 1024x768/60, 1280x720/60, 1280x1024/60, 1360x768/60, 1440x900/60, 1600x1200/60, 1680x1050/60, 1920x1080/60 |
|
Input Connector |
BNC (75 1Vpp) x 1 |
|
Loop Connector |
BNC (75 1Vpp) x 1 |
|
Output Interface |
HDMI Type-A x 1, D-SUB 15 x 1, BNC (75 1Vpp) x 1 |
|
Switch |
Tact Switch x 2 |
|
Power Supply |
12V 500mA |
|
Power Consumption |
250mA (Max) |
|
Temperature |
Operating: 32°to 131°F (0°to 55°C), Storage: -4°to 185°F (-20°to 85°C) |
|
Humidity |
Up to 95% |
|
Dimensions(L x W x H) |
3.5” x 5.1” x 1.2” |
|
Weight |
0.6 Lbs. |
