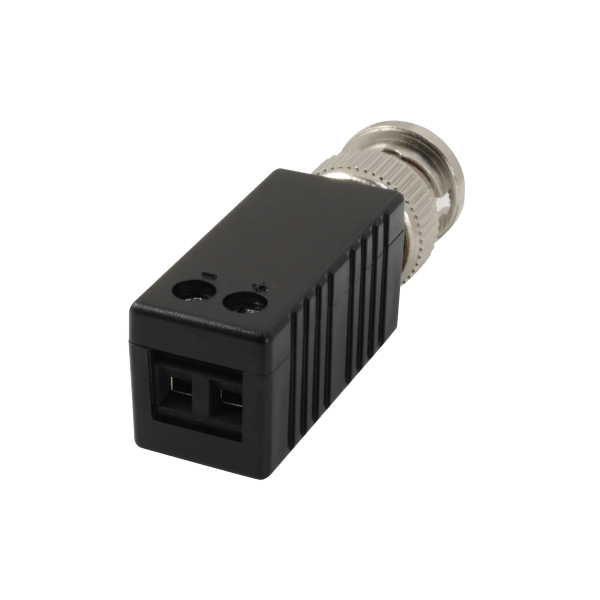

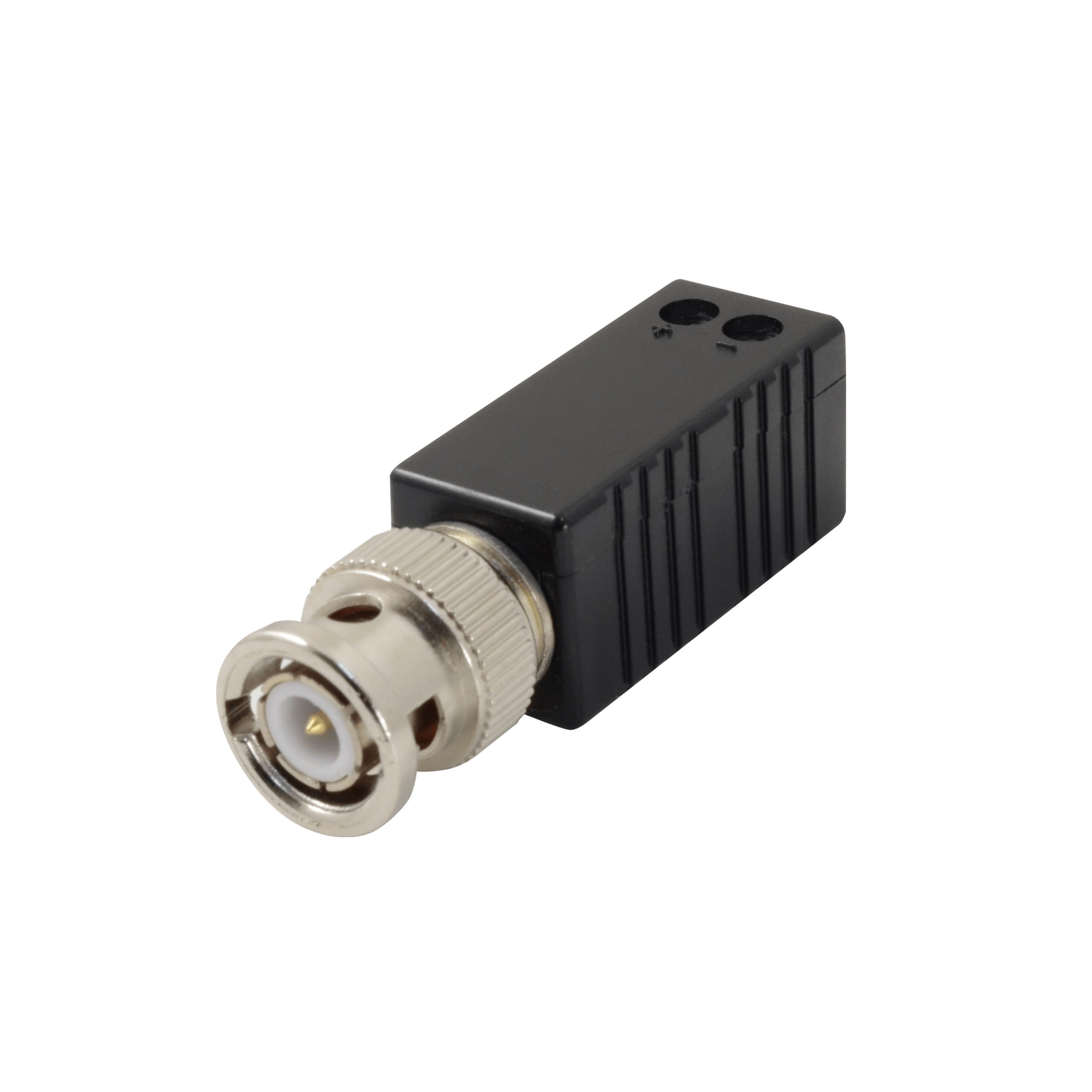

SPECO - TVIUTP - HD-TVI Balun over UTP
• Send HD-TVI signal up to 656’ (200M) over UTP cable.
• BNC male to screw terminal for easy connection.
• Compact size allows mounting of multiple units behind multiplexers, Quads, DVRs, etc.
• Passive, No power required.
• Ideal for retrofits using existing UTP cable.
• Built in ESD, EFT (impulse noise), lightning (surge) and transient protection.
• Sold individually but used in pairs. Could be used in conjunction with another TVIUTP, or with the pigtail model TVIUTPPT.
|
ITEM NO. |
TVIUTP |
|
Video Input (BNC Connector) |
1 |
|
Video Input |
1V p-p, 75 Ohms |
|
Cable |
Twisted Pair CAT 5 |
|
Bandwidth |
50Hz ~ 60MHz ( -3dB ) |
|
Transmission Distance |
HD-TVI: 656’ (200M) |
|
RJ-45 Output |
Terminal |
|
ESD protection |
30 KV(Air)，15 KV (Contact) ; IEC 61000-4-2 compliant |
|
EFT protection |
40A(5/50ns) ; IEC 61000-4-4 compliant |
|
Lightning protection |
2A (8/20µs) ; IEC 61000-4-5 compliant |
|
Surge Protection Attack Time |
< 1 nS |
|
Environmental Specifications |
Operation: 32°F to 131°F, Storage: -4°F to 185°F, Humidity: up to 95% |
|
Dimensions(L x W x H) |
.6” x 2” x .6” |
|
Weight |
0.04 LBS |
