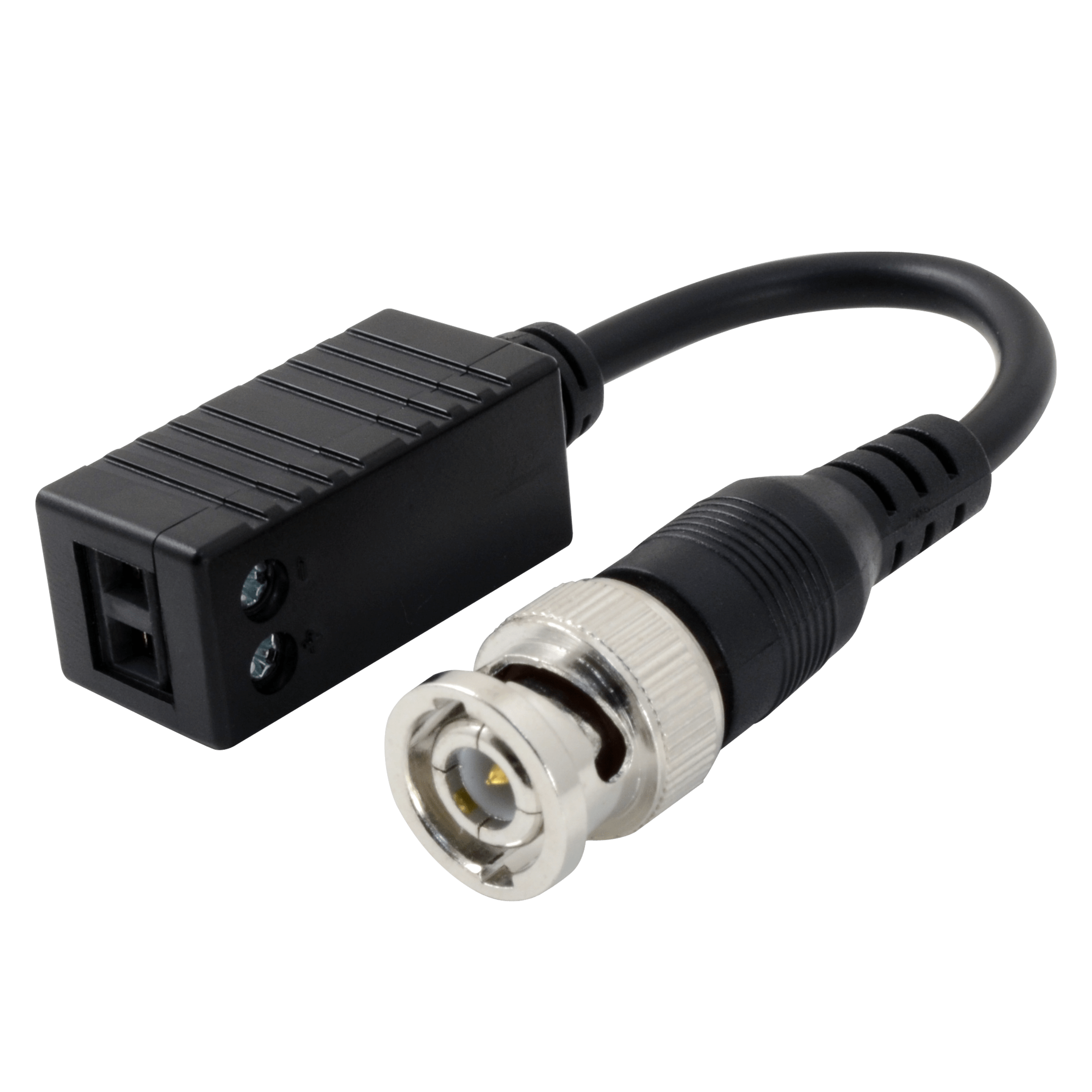

SPECO - TVIUTPPT - HD-TVI Balun over UTP with Pigtail
• Send HD-TVI signal up to 656’ (200M) over UTP cable.
• BNC male to screw terminal with 4” (10cm) mini coax cable for easy connection.
• Compact size allows mounting of multiple units behind multiplexers, Quads, DVRs, etc.
• Passive, No power required.
• Ideal for retrofits using existing UTP cable.
• Built in ESD, EFT (impulse noise), lightning (surge) and transient protection.
• Used in pairs (Sold individually).
• Sold individually but used in pairs. Could be used in conjunction with another TVIUTPPT, or with the non-pigtail model TVIUTP
|
ITEM NO. |
TVIUTPPT |
|
Video Input / Output Terminals |
BNC MALE (75Ω、1V p-p) |
|
Video On put / Output Terminals |
TERMINAL BLOCK |
|
Bandwidth |
50Hz ~ 60MHz (-3dB) |
|
Transmission Distance |
HD-TVI: 656’ (200M) |
|
ESD |
30 KV(air)，15 KV (contact) ; complaint IEC 61000-4-2 |
|
EFT (impulse noise) |
40A(5/50ns) ; compliant IEC 61000-4-4 |
|
Lightning protection |
2A (8/20µs) ; compliant IEC 61000-4-5 |
|
Surge Protection startup Time |
< 1 nS |
|
Environmental Specifications |
Operation: 32°F to 131°F, Storage: -4°F to 185°F, Humidity: up to 95% |
|
Dimension(W x H x L) |
0.6" x 0.6" x 1.8", plus 4” mini coax cable |
|
Weight |
0.04 LBS |
