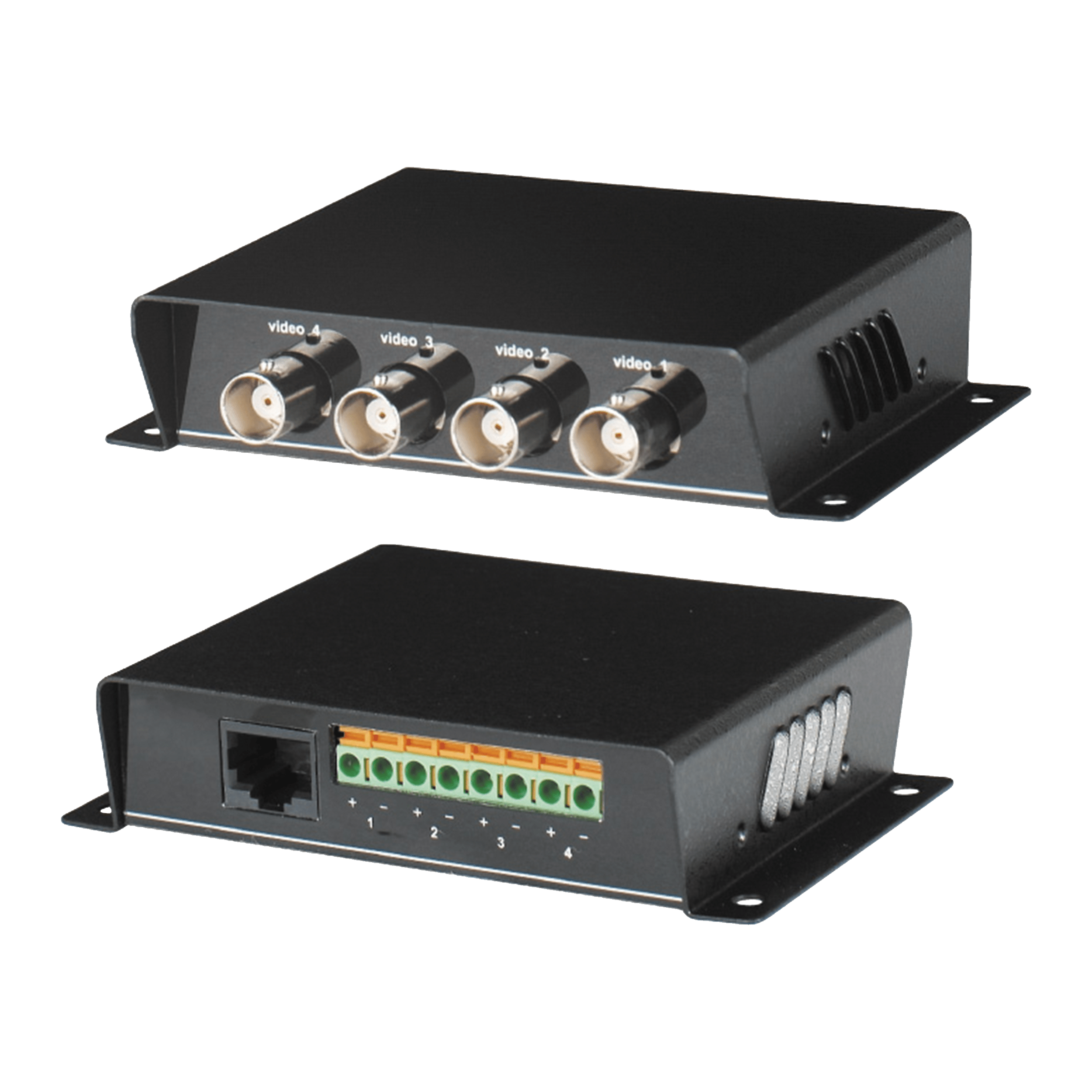

SPECO - UTP4P - 4 Channel Passive Transceiver
Part number:
UTP4P
Price:
• Transmit a full color standard analog video signal up to 984’ (300M)
• Use 4 pairs CAT5 cable to transmit/receive 4 sets of video signals
• Passive, no power required.
• Eliminate coaxial cable.
|
ITEM NO. |
UTP4P |
|
Video Input |
BNC x 4 |
|
Video Output |
Push Pin Terminal |
|
Distance |
984’ (300M) |
|
Recommend Cable |
CAT.5 UTP (AWG24) |
|
Temperature |
Operation: 32°F to 131°F, Storage: -4°F to 185°F, Humidity: up to 95% |
|
Dimension(LxWxH) |
4.3” x 3.2” x 1” |
|
Weight |
0.5 Lbs. |
