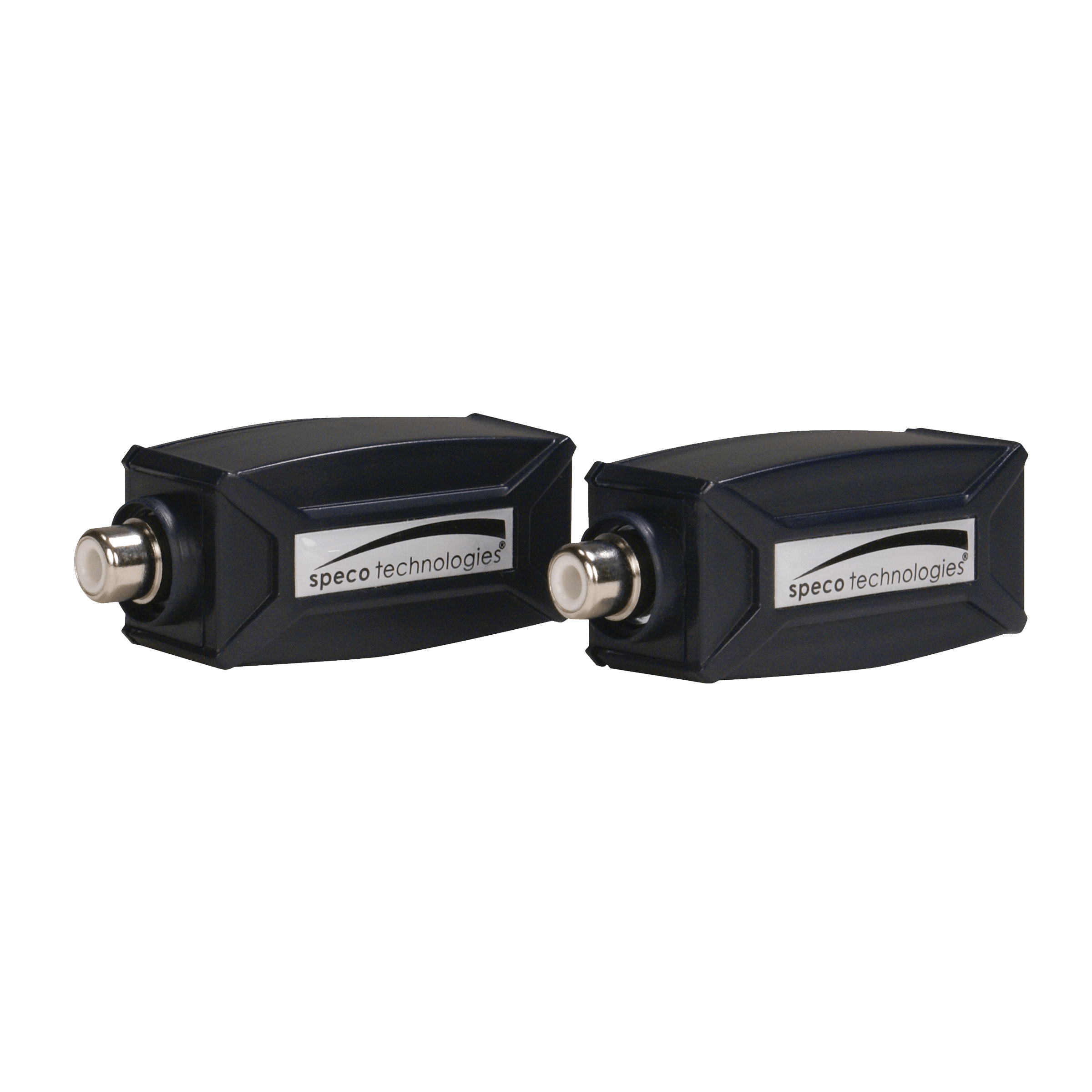

SPECO - UTPAUDIO - Send Audio up to 1 Mile over CAT5E
Part number:
UTPAUDIO
Price:
•Send audio signal up to 1968’ (600 meters) via CAT5 UTP cable.
•RCA female to 2 pin screw terminal.
•20Hz to 20Khz Frequency Response.
•Available for 75-120ohm cable.
•High performance to eliminate audio ground loop interference.
•Used and sold in pairs
|
ITEM NO. |
UTPAUDIO |
|
AUDIO INPUT / OUTPUT |
RCA x 1 |
|
AUDIO INPUT |
2V p-p, 75 Ohms |
|
LINK CONNECTOR |
Terminal x 1 |
|
LINK CABLE |
Twisted Pair CAT5 (AWG24) |
|
DIMENSIONS |
2.3” x 1” x 0.8” (59.3 x 25 x 20.7 mm) |
|
WEIGHT |
0.1 Lbs. |
Name
Description
Size
Downloads
File
Spec Sheet
0.1mb
File
User Manual
0.2mb
