SPECO - VGA135 - Extend VGA Monitor Over CAT5E
• Passive device, no power required.

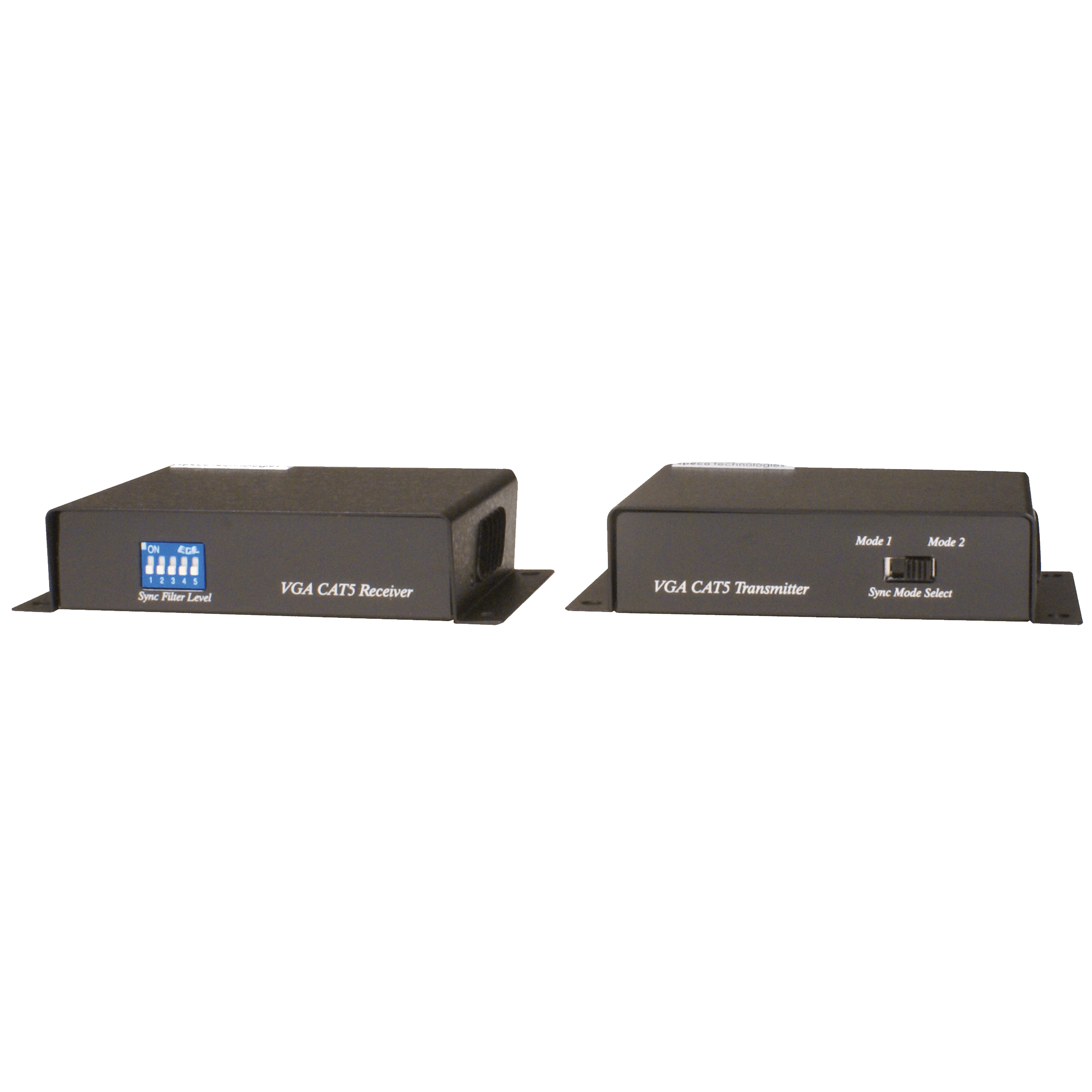

• Includes transmitter and receiver.
• Resolution up to 1920x1080 pixels.
• Up to 328’ (100m) via standard 4 pairs CAT5 STP or UTP cable
• Replaces costly VGA cable with less expensive UTP cable.
• Transmitter has built in virtual DDC to avoid improper settings of resolution and frequency.
• Transmitter has built in sync mode selection for signal stability.
• Receiver has built in sync filter level adjustment for signal stability.
|
|
Transmitter |
Receiver |
|
Input Signals |
Video: 1 Vp-p | |
|
Horizontal & Vertical SYNC : TTL standard. 300kHz max. bandwidth |
||
|
Insertion Loss |
Less than 3dB per pair over the frequency range |
|
|
Video Signal Return Loss |
-15dB max from DC to 60Mhz |
|
|
Impedance |
75 ohms (DB15), 100 ohms (RJ45) |
|
|
Controls |
2 Stage Slide Switch |
5 Stage Dip Switch |
|
Transmission Distance |
131-328’ (40~100M) |
|
|
Recommended Cable |
CAT5 / CAT5e / CAT6 / STP or UTP Cable |
|
|
Temperature |
Operation: 32 to 131°F (0 to 55℃), Storage: -4 to 185°F (-20 to 85℃) Humidity: up to 95% |
|
|
Dimensions |
4.3 x 3 x 1” (110 x 76.6 x 26mm) |
|
|
Weight |
0.4lbs (175g) |
|
