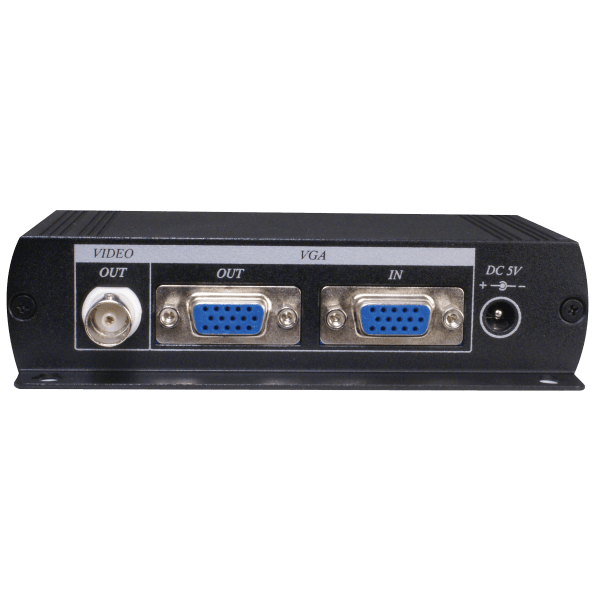

SPECO - VGABNC - VGA to Video Connector
•Allows you to repurpose older model TVs or CRT monitors with BNC inputs
•Connects any DVR with VGA output ports to older model TVs or CRT monitors.
•Also Ideal for notebook computer users to easily connect and use a large-format monitor.

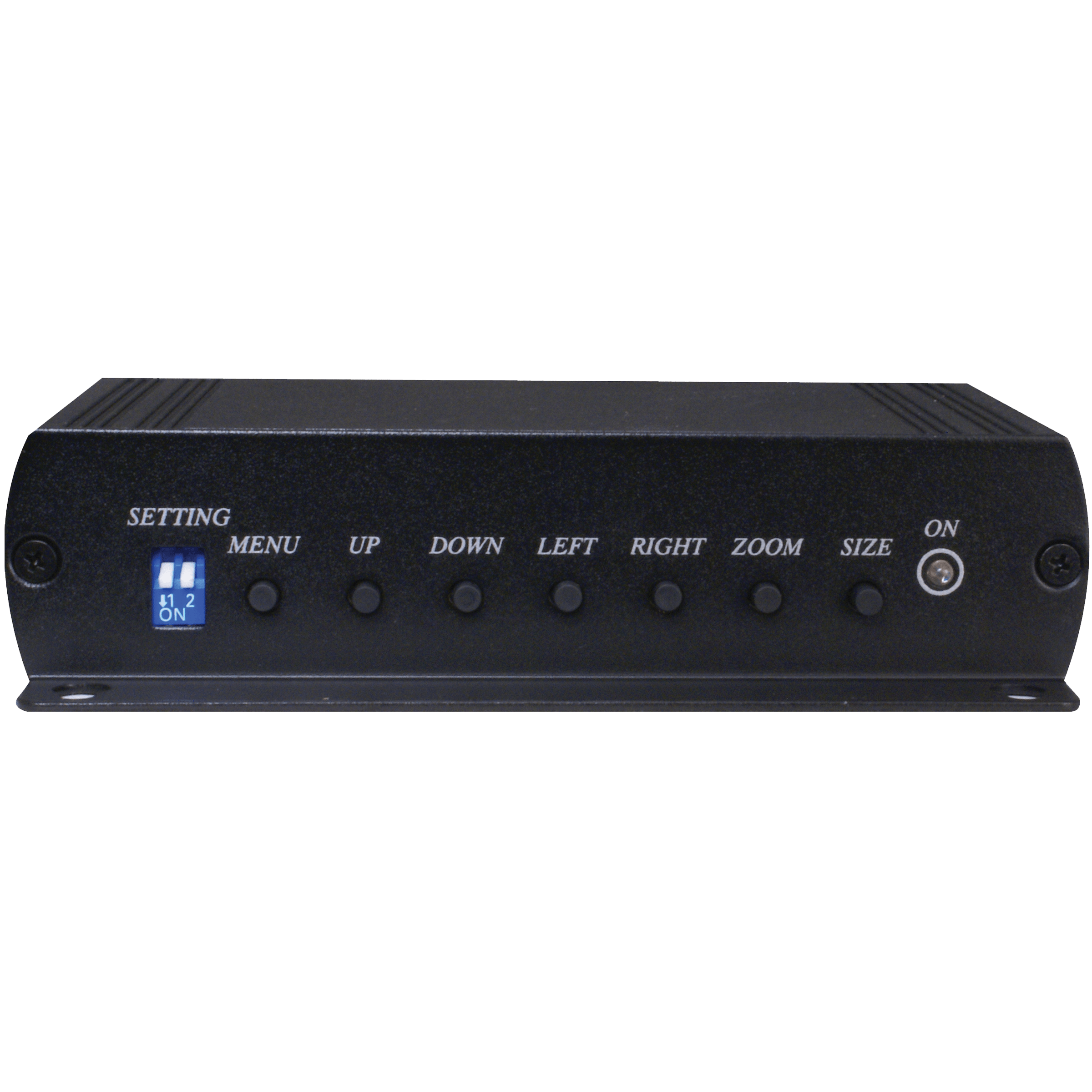

•Image controls: Horizontal and vertical size, brightness, contrast, hue, saturation, sharpness and on screen display background.
•Simple and quick to install
•No driver or operating system requirements; compatible with Windows and Mac computers.
|
ITEM NO. |
|
|
|
|
|
VGABNC |
|
|
|
|
|
|
Input Signal |
|
|
|
|
|
1 x VGA |
|
|
|
|
|
Output Signal |
|
1 x Composite Video (BNC), 1 x VGA 15 pin D female connector |
|||||||
|
|
Power Consumption |
|
|
|
|
|
500mA |
|
|
|
|
|
Power Supply |
|
|
|
|
DC5V 1Amp Regulated Power Supply |
||||
|
|
Temperature |
|
Operation: 32°F to 131°F, Storage: -4°F to 185°F, Humidity: up to 95% |
|||||||
|
|
Dimension |
L x W x H |
|
|
|
4.9” x 3.7” x 1.2” |
||||
|
|
Weight |
|
|
|
|
|
0.6 Lbs. |
|
|
|
