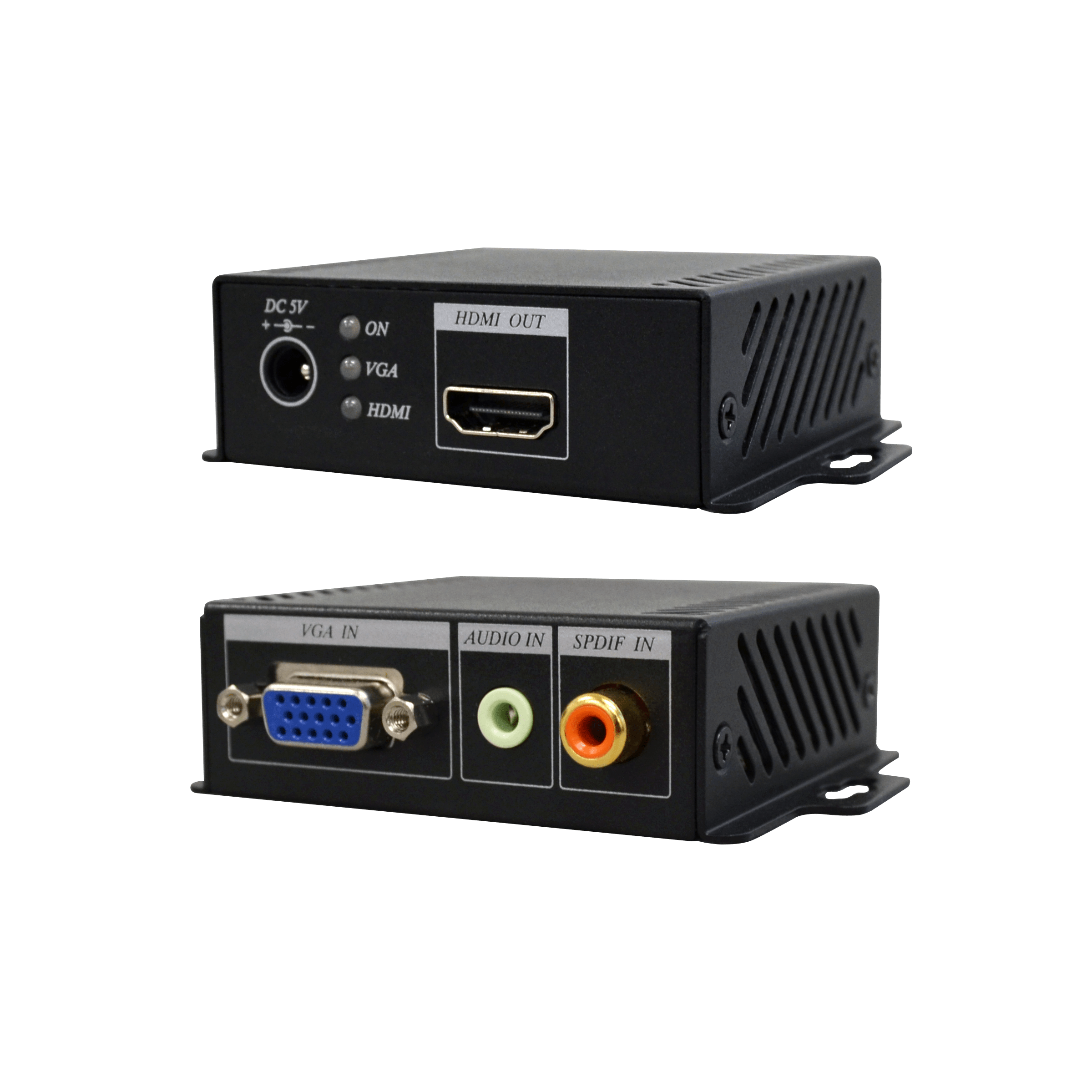

SPECO - VGAHD2 - VGA to HDMI Converter
Converts VGA & analog stereo or digital audio (SPDIF) to HDMI
Supports HDMI & DVI output mode (HDMI to DVI cable not included)
Encodes analog stereo audio or digital audio onto the video signal for HDMI combined audio and video
Built-in auto selection of analog or digital audio
Supports PC resolution up to 1920×1200
Camera Specifications
Input Signal: VGA X 1: 1920x1200@60HZ Max
Video Input Connector: DB15 x 1 (0.7 Vp-p 75 Ohms)
Analog Audio Input: 3.5mm Stereo Phone Jack (3Vp-p Max - 10K Ohms)
Digital Audio Input: SPDIF RCA, 75 Ohms x 1
Video Output Signal: HDMI A type connector x 1
Power Consumption: 500mA
Power Supply: 5VDC 1A (included)
Storage Temperature: -40°F - 185°F
Operating Temperature: 32° F - 158° F
Humidity: Up to 95%
Dimensions: 3.6”(W) x 3” (L) x 1” (H)
Weight: 6.08 oz.
