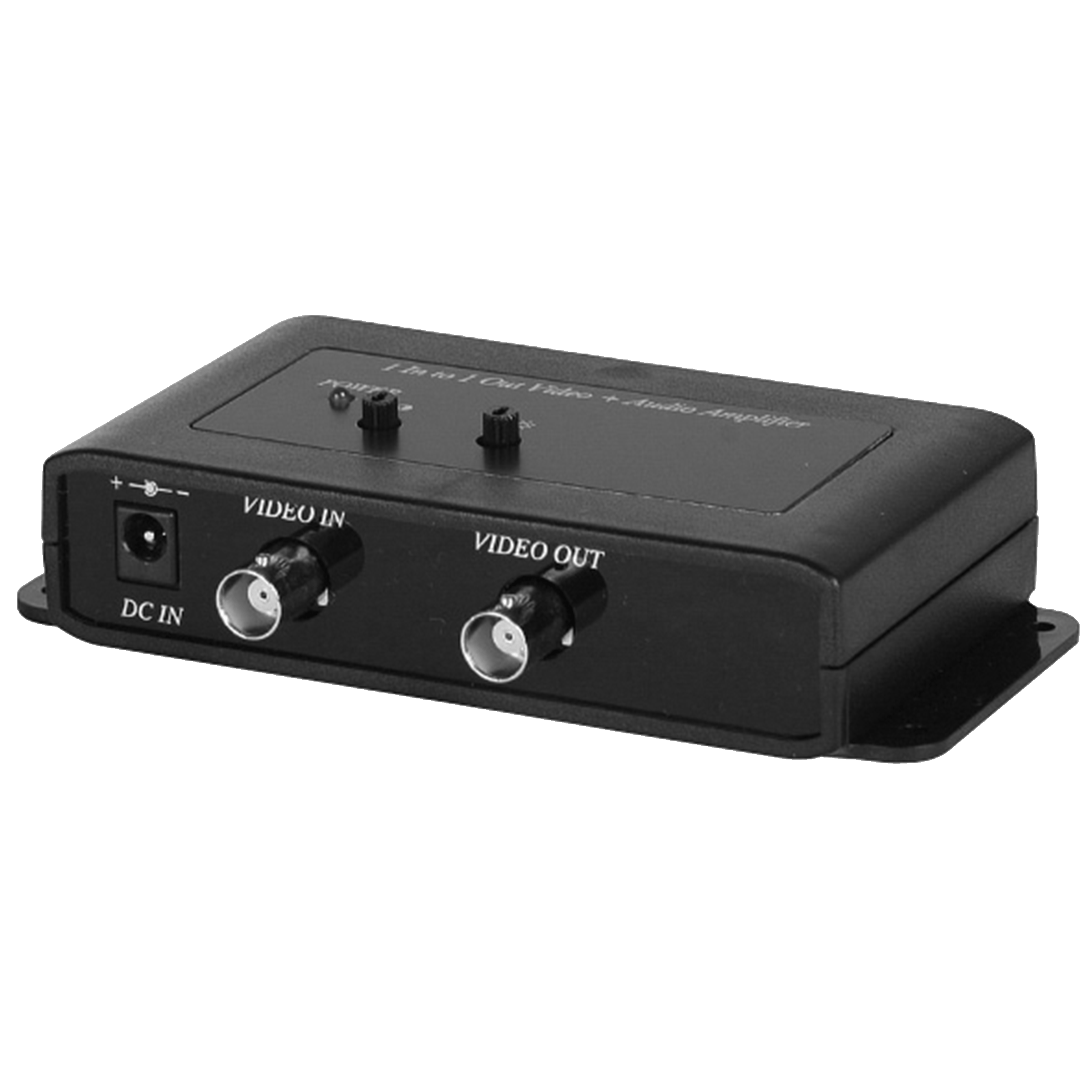

SPECO - VIDAMP - 1 in / 1 out Video Amplifier
Part number:
VIDAMP
Price:
HF compensation and wide bandwidth, video gain compensation amplification.
10dB adjustable image gain and sharpness and Brightness adjustment.
Transmission range: 3280’ (RG59 coaxial cable)
Red LED: power on/off.
For use with video cameras, multiplexers, VCRs, DVRs, etc.
12VDC power supply included.
|
ITEM NO. |
VIDAMP |
|
Video Input / Output |
1 x BNC input, 1 x BNC output |
|
Video Input Level |
0.8~1.2Vp-p, 75 Ohms |
|
Video Output Level |
1Vp-p (Standard), 75 Ohms |
|
Video Bandwidth |
10hz - 10MHz |
|
Transmission Range |
3280’ |
|
Power Supply |
DC12V / 500mA |
|
Power Consumption |
100mA |
|
Temperature |
Operation: 32°F to 131°F, Storage: -4°F to 185°F, Humidity: up to 95% |
|
Dimensions mm |
138 x 76.2 x 32 |
|
Weight g |
100 |
