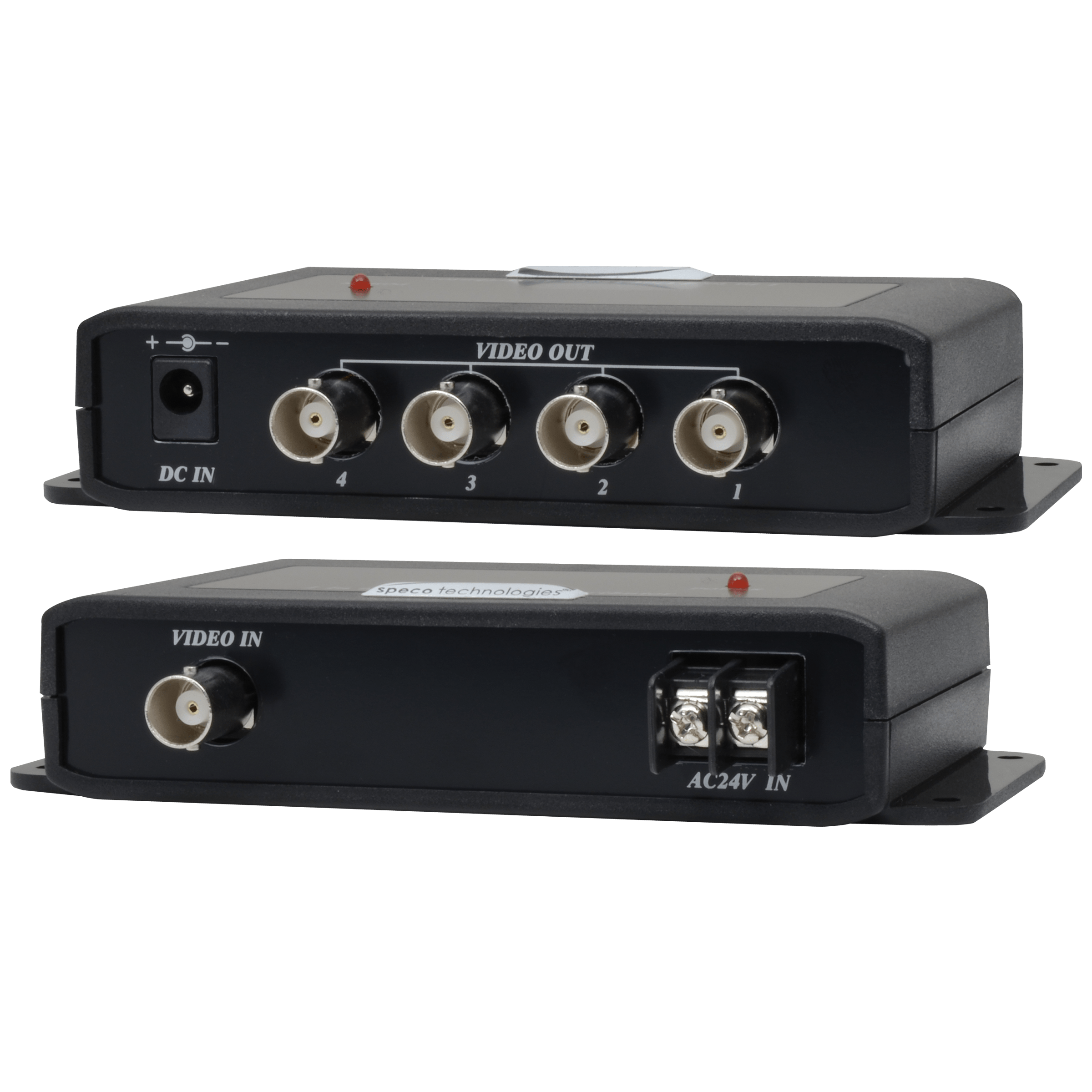

SPECO - VIDDIST - 1 in / 4 out Distribution Amplifier
Part number:
VIDDIST
Price:
• Allows a single camera, multiplexer, DVR, etc. with BNC composite connections to be displayed on up to 4 monitors
• Operates with color or black and white signals
• Power: 12VDC (included)
|
Video Input Channel |
BNC x 1 |
|
Video Output Channel |
BNC x 4 |
|
Video Input Level |
0.8~1.2Vp-p, 75 Ohms |
|
Video Output Level |
1Vp-p (Standard), 75 Ohms |
|
Video Bandwidth |
10hz - 10MHz |
|
Power Supply |
DC12V 500mA / AC24V |
|
Power Consumption |
100mA |
|
Temperature |
Operation: 32 to 131°F (0 to 55℃), Storage: -4 to 185°F (-20 to 85℃) Humidity: up to 95% |
|
Dimensions |
5.4” (138mm) x 3.4” (85.6mm) x 1.2” (29.5mm) |
|
Weight |
0.3 lbs. (120g) |
