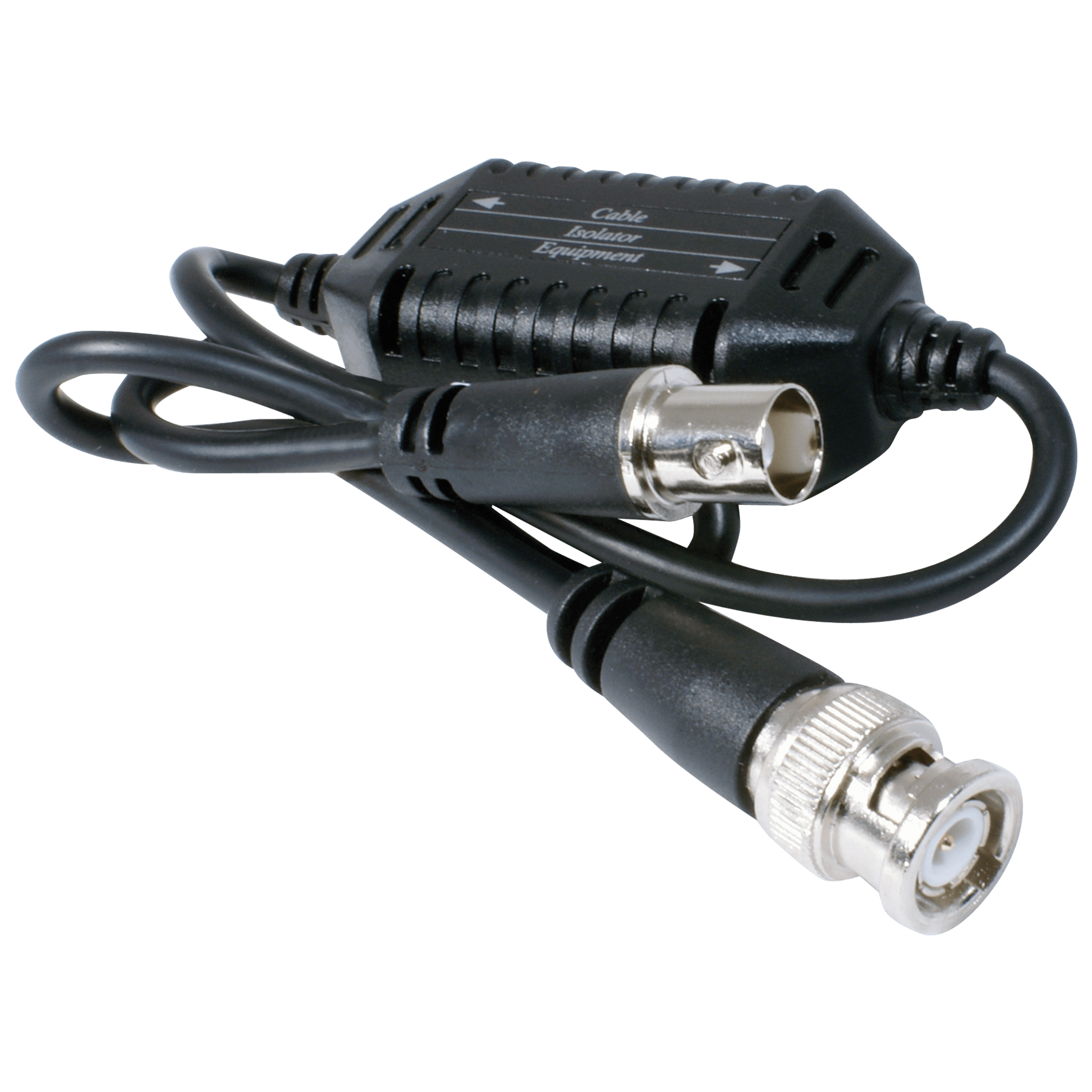

SPECO - VIDGL - Video Ground Loop Isolator for Coaxial Cable
Part number:
VIDGL
Price:
• Protects against the symptoms of ground loop in an installation
• BNC Make to BNC Female with mini-cable on both sides
• Built-in TVS (transient voltage suppressors) for surge protection
• Prevents from potential interference from nearby power lines
• No power required
|
Insertion Loss |
0.5dB |
|
Frequency Response |
20Hz -10MHz (0～3dB) |
|
Coaxial Input/Output Resistance |
75 Ohm |
|
Ground Isolation |
>90dB @ >50Hz |
|
Isolation Voltage |
DC 600V (Min) |
|
Insulation Resistance |
100M Ohm |
|
Transient Voltage Suppressors |
12 Vrms |
|
Dimensions(L x W x H) |
2.9” x 1.1” x 0.8” with 6” x 2 Cable |
|
Weight |
0.2 Lbs. |
