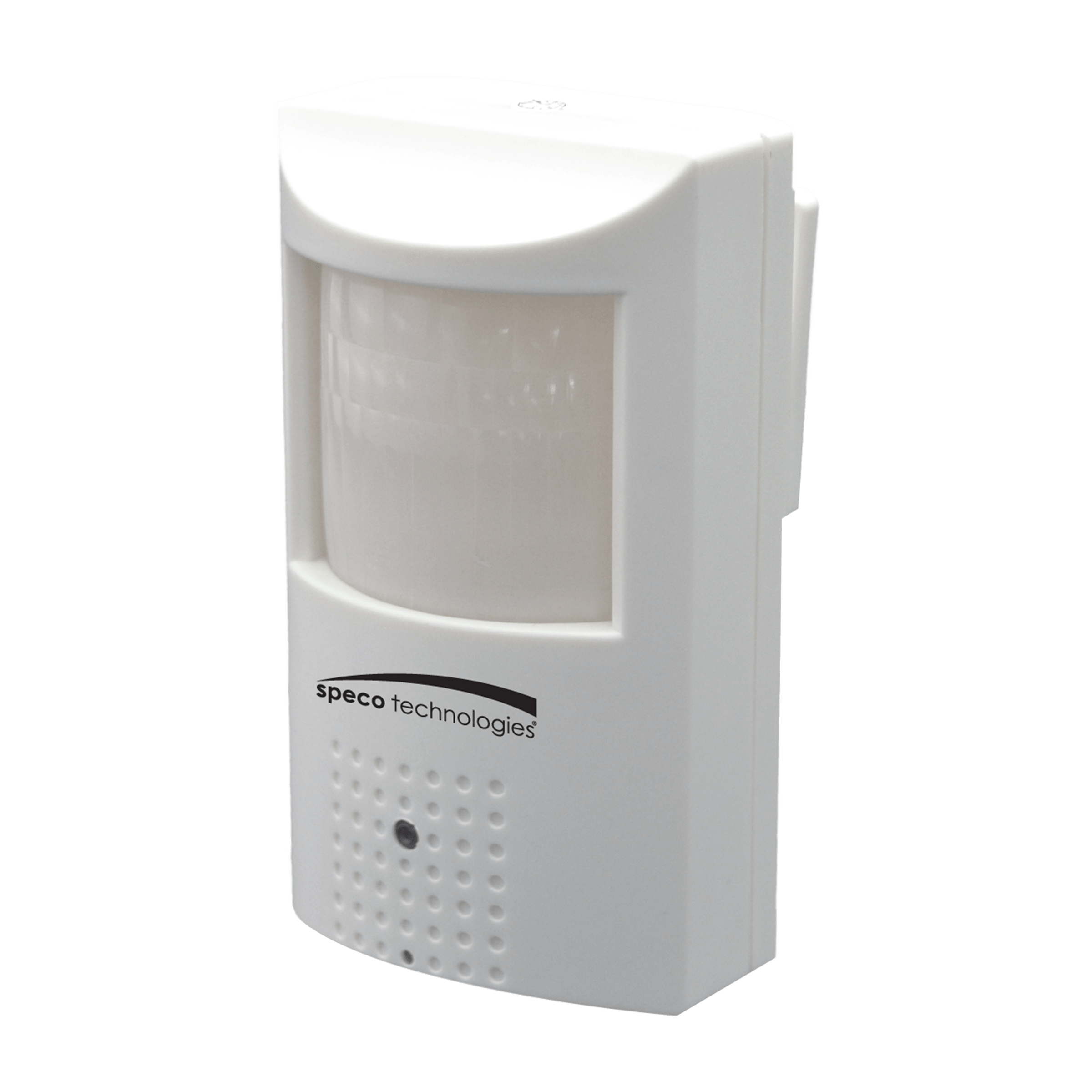

SPECO - VL572TPIR - 2MP HD-TVI Only Camera in Operating PIR Motion Sensor Housing,3.7mm Pinhole Lens

Image Sensor.............................1/2.7” Sony CMOS

Resolution...................................1920 x 1080

Minimum Illumination..................0.001 lux

Electronic Shutter.......................Auto: 1/60 sec. - 1/100,000 sec.

S/N Ratio ....................................More than 54dB

Day/Night....................................Color/ B/W / Auto

White Balance ............................Auto

Backlight Compensation.............Auto/Manual

Gain Control ...............................Auto/Manual

Gamma Correction .....................0.45/1.0

Video Output...............................1.0Vp-p / 75 ohms

Video System .............................NTSC System

Power Consumption ...................80mA (operating PIR)

Detecting Angle ..........................Max. 100o

Level Signal................................3.3V/0V

Level Signal Duration .................5s to 300s adjustable

Sensor Static Current .................<50uA

Detecting Distance .....................10 ft. to 23 ft. adjustable

Voltage Input...............................12VDC

Power Current ............................80mA

Operating Temperature...............4° F ‒ 120° F

Storage Temperature..................-13o~ 158oF

Humidity Range..........................20% ~ 90% RH

Housing ......................................White ABS plastic with mount

Dimensions.................................1.89” (L) x 2.75” (W) x 4.72” (H)

Weight ........................................6.4 oz.
