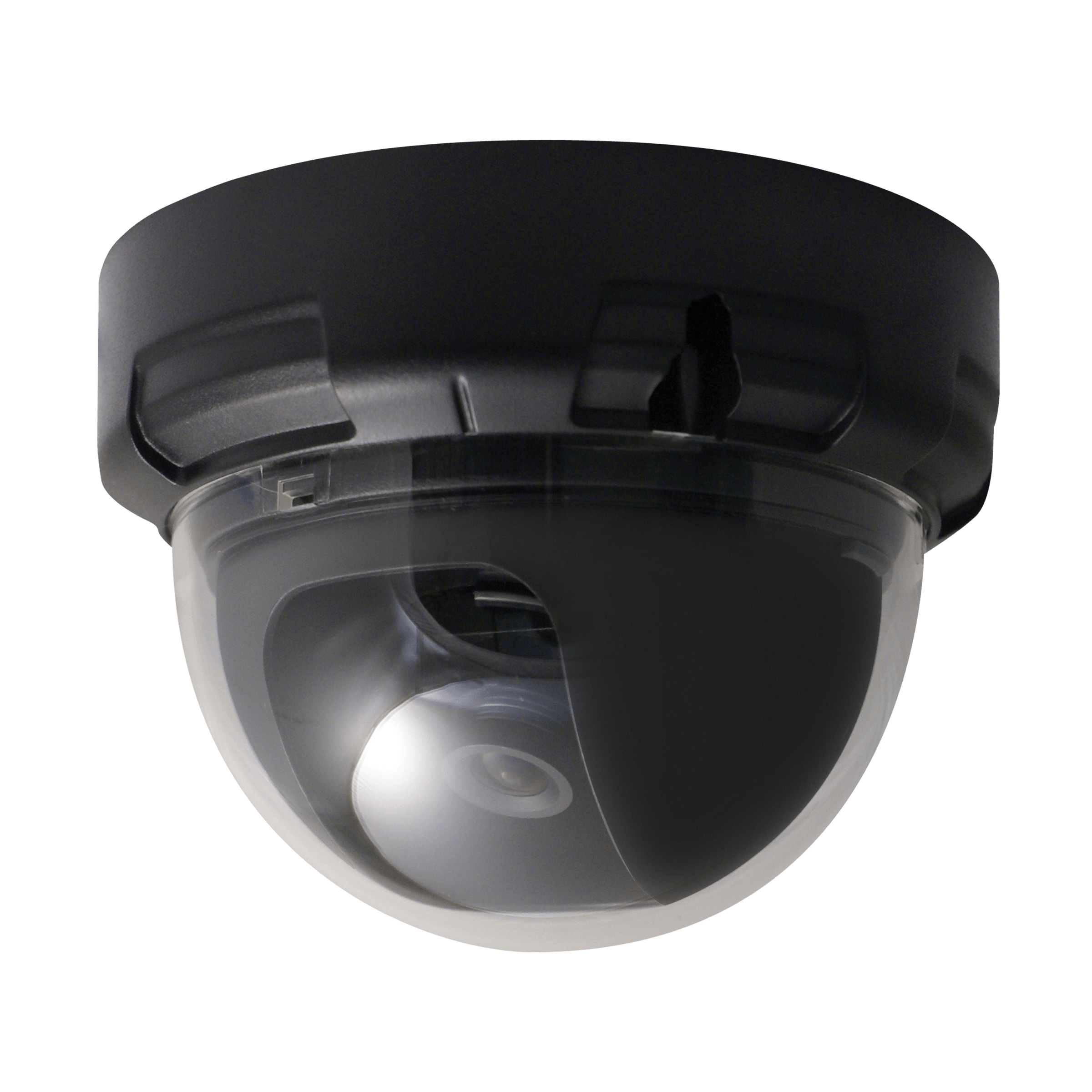

Speco Technologies - VL644T - 2MP HD-TVI Indoor Dome, 12VDC
3.6mm fixed lens, Black Housing
Part number:
VL644T
Price:
• Full HD resolution over coax
• Easy installation & adjustment
• Compact and lightweight 3 axis design
• Manual 360° rotation & pan/tilt mechanism
• 12VDC power supply required (power supply not included)
• 5 year warranty
Image Sensor: 1/2.7” 2MP CMOS Sensor
Resolution: 1920x1080
Minimum Illumination: 0.01 lux @ F=0.12
Electronic Shutter: Auto
S/N Ratio: >60dB
Backlight Compensation: Auto
Synchronization: Internal
Gamma: 0.45 typ.
Video Signal Output: 1.0Vp-p / 75 ohms
Operating Temperature/Humidity: 14 F - 122 F / less than 80% RH
Storage Temperature: -4 F - 140 F
Power Consumption: 90mA
Power Supply: 12VDC (power supply not included)
Dimensions: 4.7” (H) x 3.5” (Dia.)
Weight: 10.5 oz.
Name
Description
Size
Downloads
File
Spec Sheet
0.5mb
File
User Manual
0.2mb
