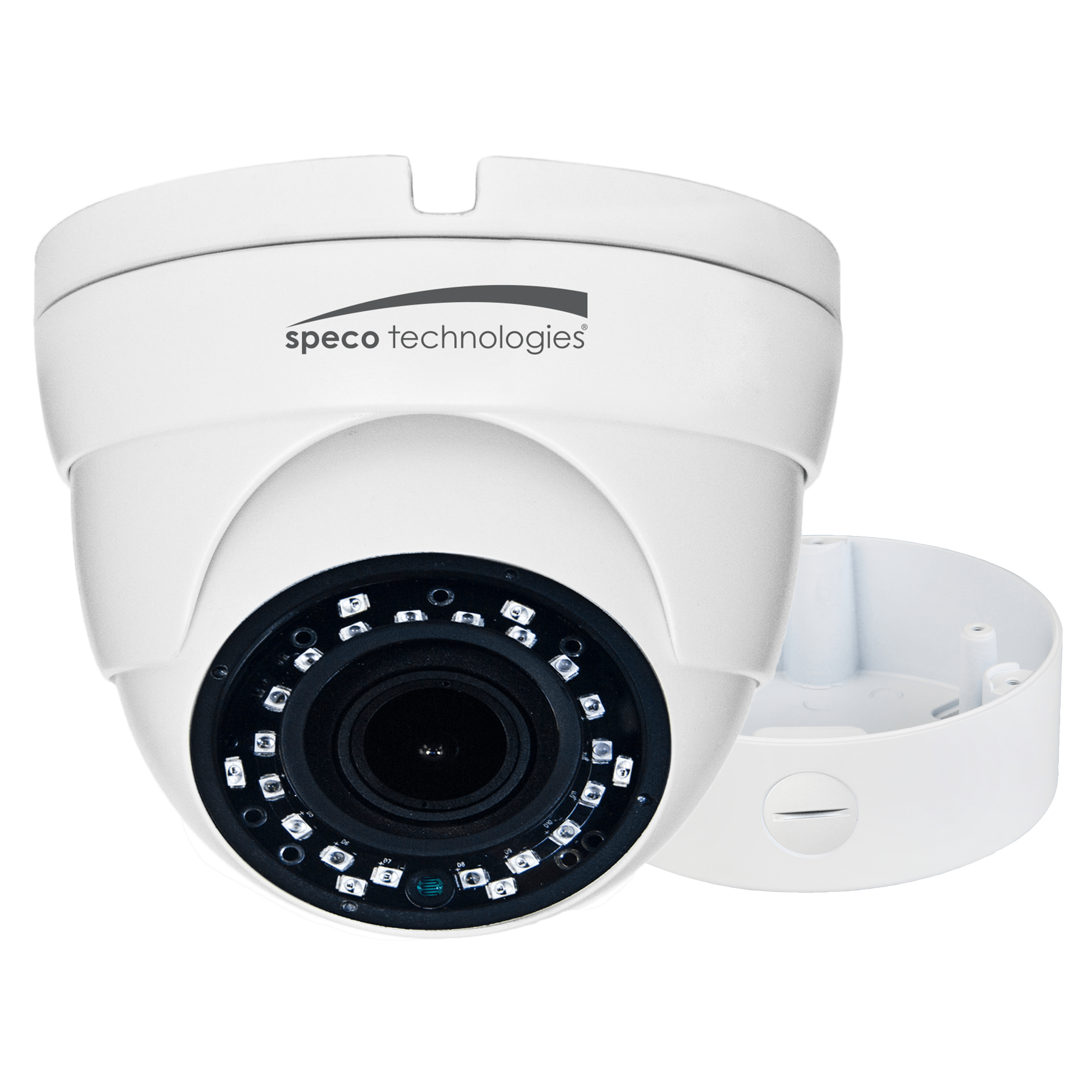

SPECO - VLDT3WM - 2MP HD-TVI Eyeball Camera, 2.8-12 mm Motorized Lens, Included Junc Box, White Housing
2.8-12 mm Motorized Lens, White Housing
Part number:
VLDT3WM
Price:
• 2.8-12mm varifocal motorized lens
• 1/2.9” 2MP Sony CMOS
• Supports multiple video signal outputs (TVI / AHD / CVI / CVBS)*
• 18 built-in IR LEDs
• IP66 compliant, weather resistant
• Full OSD operation via UTC (Up the Coax)
• Junction box included
• UL Listed
• 5 year warranty
*cameras come defaulted to HD-TVI
| Camera Specifications | |
|---|---|
| Image Sensor | 1/2.9” 2MP Sony CMOS |
| Maximum Resolution | 1920x1080 |
| Minimum Illumination | 0 lux |
| Number of IR LEDs | 18 |
| IR Distance | Up to 65 ft. (depending on scene reflection) |
| White Balance | ATW |
| Blacklight Compensation | Auto |
| Electronic Shutter Speed | NTSC:1/60-1/100,000 PAL: 1/50-1/100,000 |
| AGC | On/Off |
| DNR | On/Off |
| WDR | On/Off |
| Day/Night | Auto / Color / BW / EXT |
| OSD | UTC |
| Gamma | 0.45 typ. |
| Scanning System | Progressive |
| Video Signal Output | HD-TVI / AHD / CVI / CVBS |
| Operating Specifications | |
| Power Supply | 12VDC (power supply not included) |
| Power Consumption | Max. 430mA |
| Operating Temperature - | -22°F - 104°F |
| Storage Temperature | -22°F - 104°F |
| Unit Dimensions | 4.72” (W) x 3.94” (H) |
| Unit Weight | 1.74 lbs. |
Name
Description
Size
Downloads
File
Spec Sheet
0.7mb
File
User Manual
9.1mb
