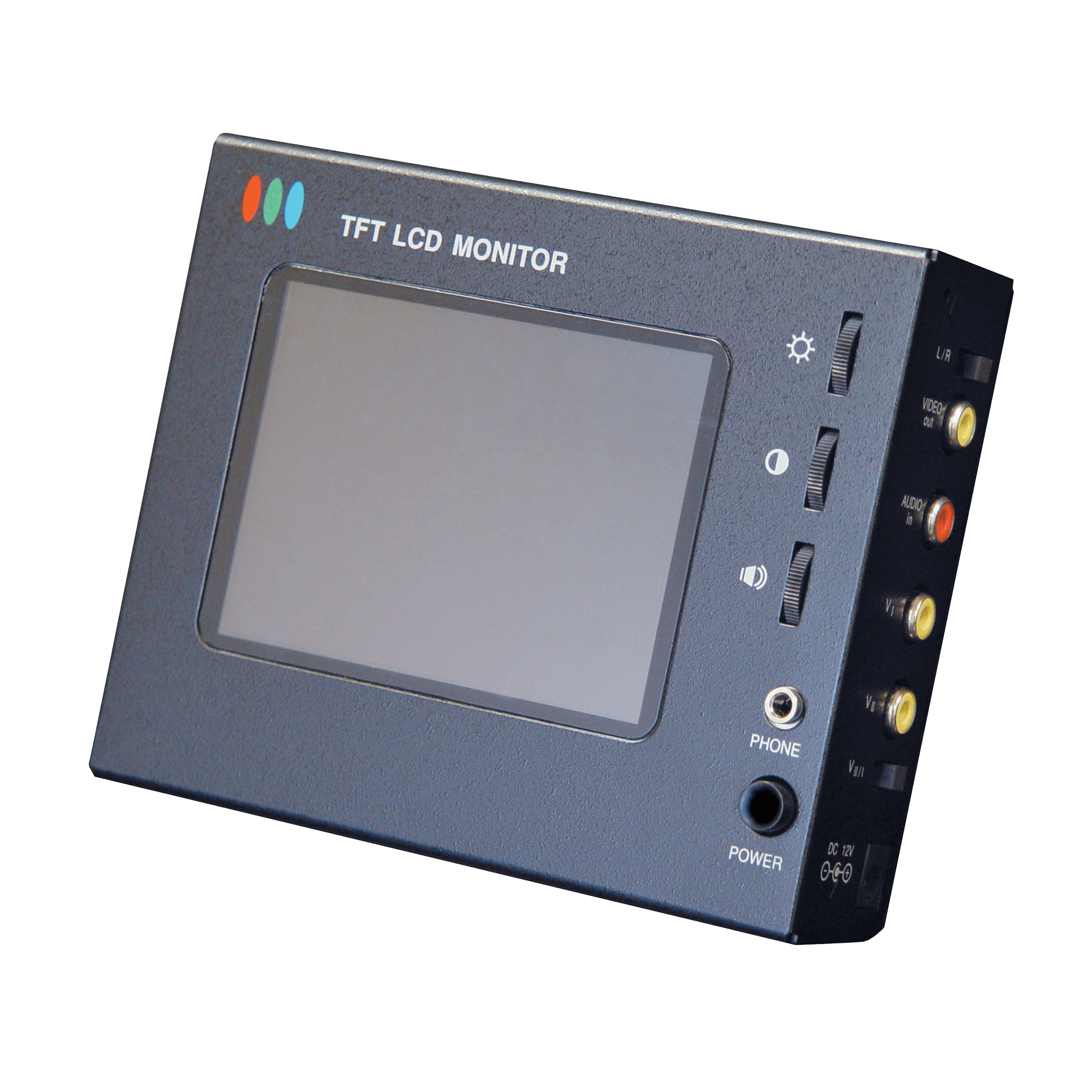

SPECO - VMS2 - Portable Color LCD Test Monitor Case Car Adapter 12VDC Power Supply
• LCD display easily allows for checking the video signal of the CCTV camera being tested
• An audio jack tests the audio signal
• Built-in rechargeable battery has a life of 4 hours
• An LED light displays low battery level
• Visor blocks out sunglare on the LCD display
• The heavy duty casing, durable handle and shoulder belt (included) make this unit conveniently portable
• 1 year warranty
Resolution................................. 480 x 234
Brightness ................................ 350cd
Input Video Signal .................... 1.0Vp-p (sync., negative) termination 75 Ohm
LCD Technology ...................... TFT active matrix
Display Size ............................. 4”
Contrast Ration......................... 250:1
View Angle................................ L/R ±45° U/D:10°/30°
Audio Input ............................... 30 mVp-p ‒ 100 mVp-p
Audio Output............................. 0.5W max
Charging Time .......................... 8 hours charging time, 4 hours operating time
Video/Audio Connector............. RCA W/BNC plug adapter
Power Consumption ................. 4.5W
Rechargeable Battery .............. 12V.1.1AH
Power Supply ........................... 12VDC (power supply included)
Dimensions .............................. 6” (W) x 5.1” (H) x 3” (D)
Weight ...................................... 4.3 lbs.
Extra battery available.............. BVMS2
