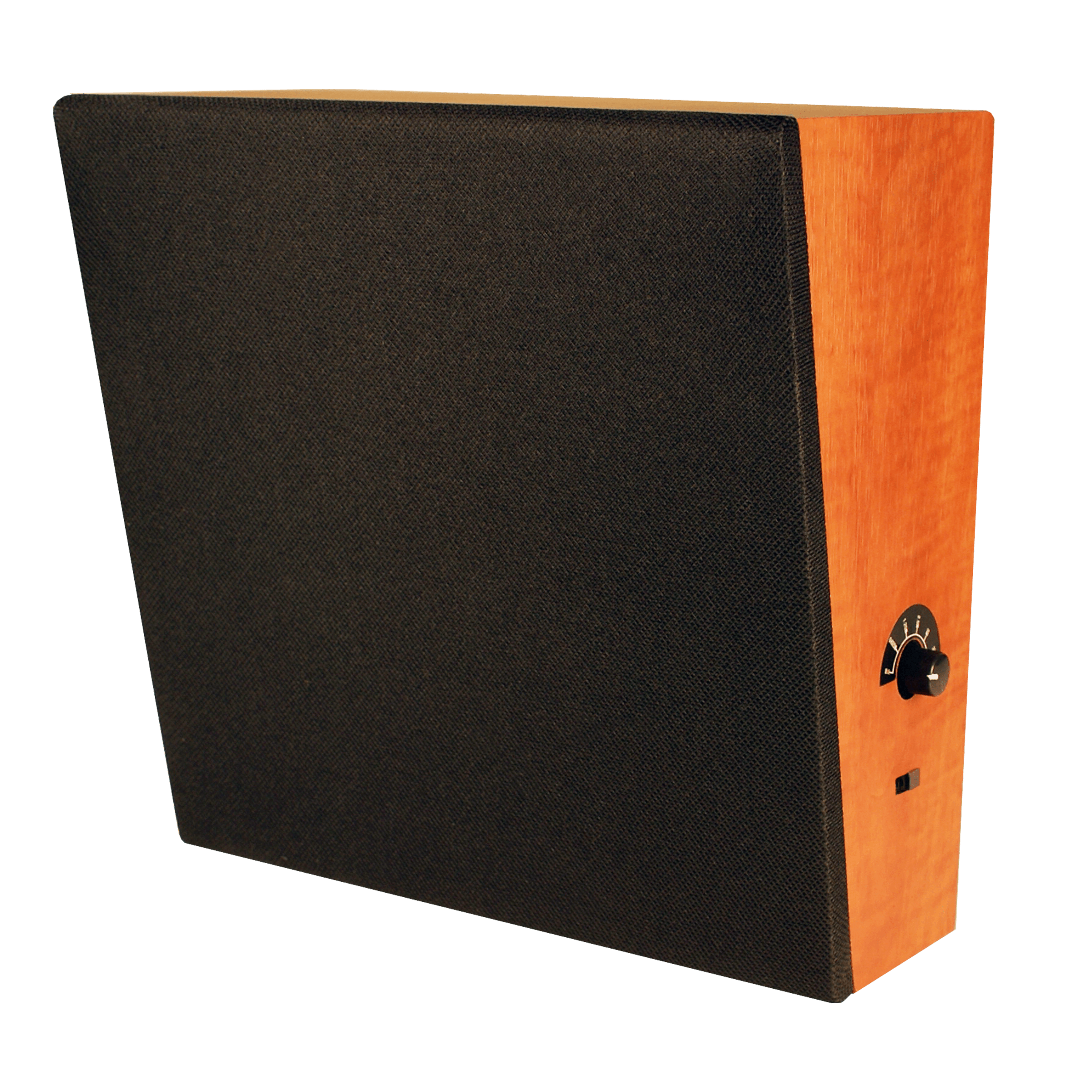

SPECO - WB86T - Wall Baffle w/ 70V Transformer Dial

RMS Power ............................10W

Max. Power.............................15W

Transformer Type ...................70/25V (selectable)

Transformer Power Type ........10W, 5W, 2.5W, 1.25W, 0.625W & 8 Ohms

Termination Type ....................Press terminal

Sensitivity (1W/1M).................93dB

Maximum SPL (Pax/1M).........105dB

Driver Impedance ...................8 Ohms

Magnet....................................5 oz. ferrite

Frequency Response Range......85Hz ~ 20kHz

Dispersion @ 1000Hz............. 120º Conical

Driver....................................... 8” paper cone woofer, 8” dual cone tweeter

Speaker Dimensions............... 10” (W) x 10” (H) x 5.43” top / 3.19” bottom (D)

Mounting Dimensions ............. 7.625” (Dia.)

Weight ..................................... 6.9 lbs.

Material.................................... Baffle: Wood Grille: Cloth

Color........................................ Brown body, black grille
