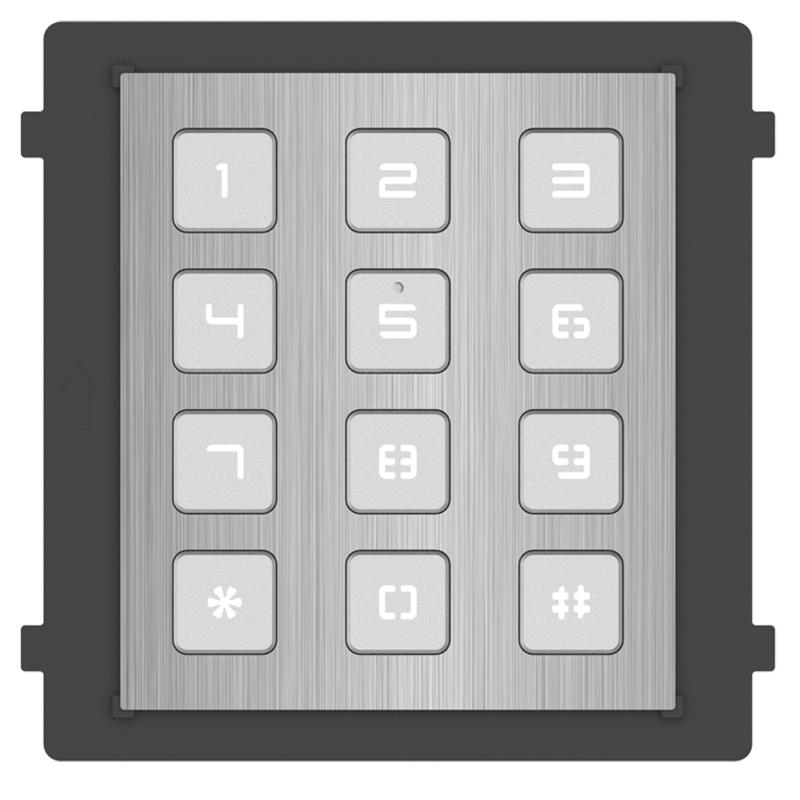

Hikvision - DS-KD-KP/S - Stainless Steel Intercom
Part number:
DS-KD-KP/S
Price:
KD8 Series Pro Modular Door Station
Features:
- Keypad module of modular door station
- Supporting input pin code to open door, call indoor station
- IP65 and IK07 higher protection level
- Backlight compensation behind the keypad buttons
- Easy to use and extend
- Stainless Steel high quality material
| Category | Specification |
|---|---|
| System Parameters | |
| Operation System | Linux |
| ROM | / |
| RAM | / |
| Processor | Embedded high performance processor |
| Display Parameters | |
| Screen Size | / |
| Operation Method | / |
| Type | / |
| Resolution | / |
| Video Parameters | |
| Lens | / |
| Resolution | / |
| FOV | / |
| Wide Dynamic Range (WDR) | / |
| Supplement Light | / |
| Video Compression Standard | / |
| Audio Parameters | |
| Audio Input | / |
| Audio Compression Standard | / |
| Audio Output | / |
| Audio Compression Bitrate | / |
| Audio Quality | / |
| Volume Adjustment | / |
| Capacity | |
| User Capacity | / |
| Face Capacity | / |
| Card Capacity | / |
| Linked Network Camera Capacity | / |
| Network Parameters | |
| Network Protocol | TCP/IP, RTSP |
| Wi-Fi | / |
| Bluetooth | / |
| 3G/4G | / |
| Device Interfaces | |
| Alarm Input | / |
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | / |
| Exit Button | / |
| RS-485 | 2 |
| USB | / |
| Wiegand | / |
| TF Card | / |
| Alarm Output | / |
| Lock Control | / |
| Door Contact Input | / |
| General | |
| Button | 12 |
| Installation | Flush mounting, surface mounting |
| Indicator | / |
| Weight | Net weight: 190 gGross weight: 438 g |
| Protective Level | IP65, IK07 |
| Working Temperature | -40 °C to 55 °C (-40 °F to 131 °F) |
| Working Humidity | 10% to 95% |
| Dimension (W × H × D) | 98.2 mm × 100.2 mm × 33.7 mm (3.87" × 3.95" × 1.33") |
| Battery | / |
| Power Supply | 12 VDC, powered for other module |
| Application Environment | Outdoor |
| Power Consumption | 1 W |
