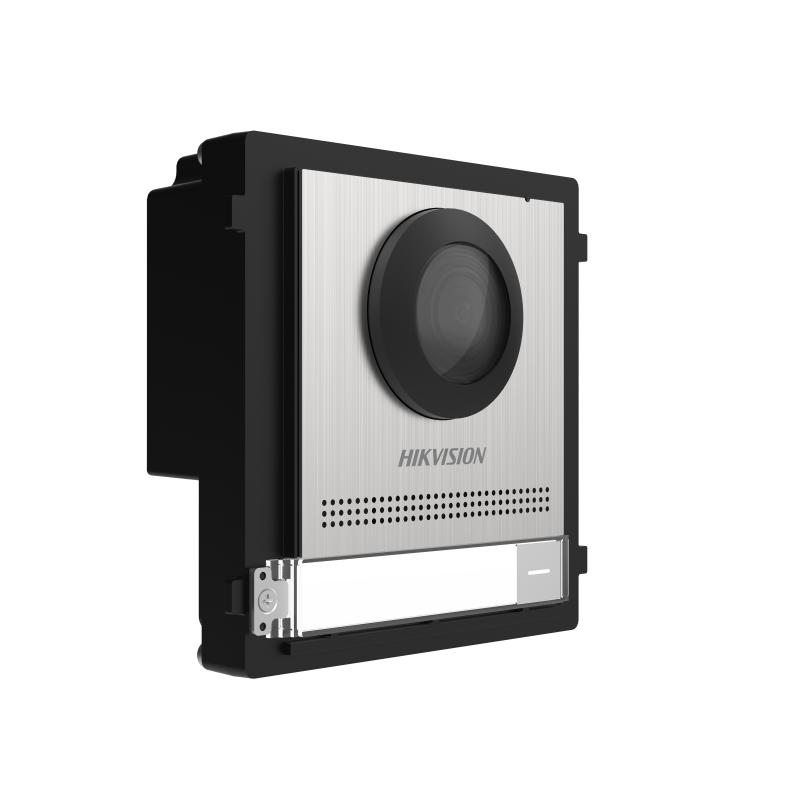

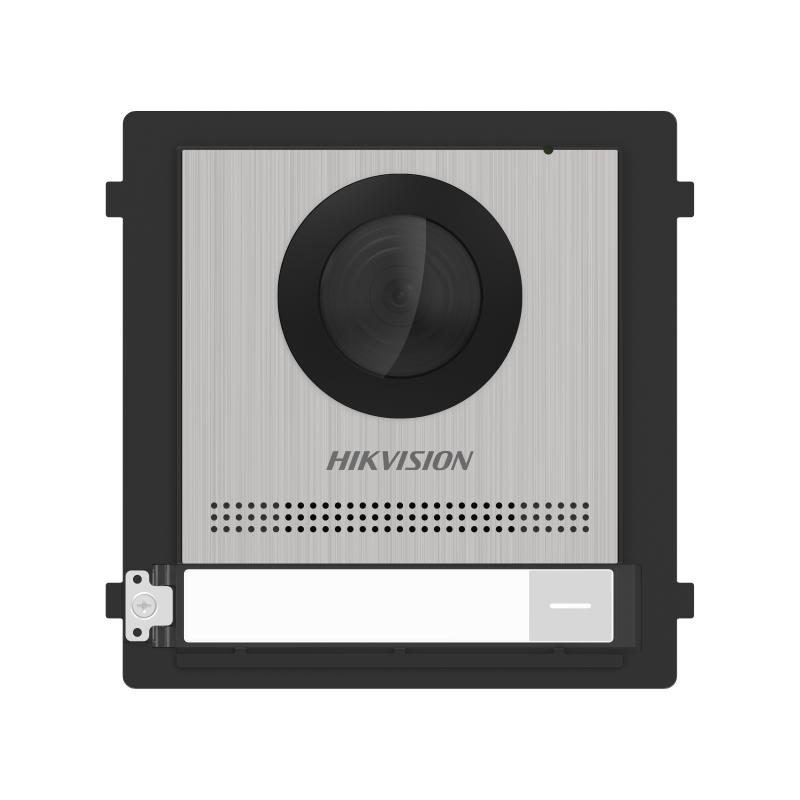

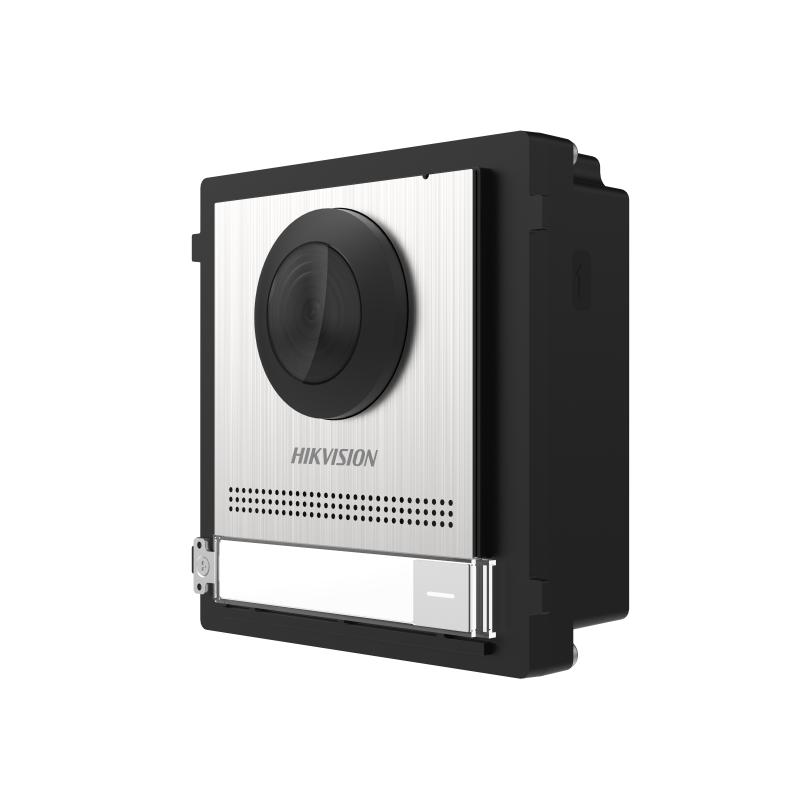

Hikvision - DS-KD8003-IME1(B)/S - Stainless SteelIntercom Door Station
Part number:
DS-KD8003-IME1(B)/S
Price:
KD8 Series Pro Modular Door Station
Features:
- Modular door station Main unit, needs mounting bracket
- 2MP HD Camera, Fish eye, IR Supplement
- 1 Call physical Button, 2 lock relays, 4-ch alarm input
- Video intercom to indoor station and master station
- WEB Configuration
- IP65, 12 VDC or standard PoE
- Power output for electronic lock, max to 12 V, 500 mA
| System parameters | |
| Operating system | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 256 MB |
| CPU | Embedded Processor |
| Display parameters | |
| Screen size | NA |
| Operation method | NA |
| Type | NA |
| Resolution | NA |
| Video parameters | |
| Supplement light | Low illumination, IR supplement lights |
| Video standard | H.264 |
| Lens | 1 |
| FOV | Horizontal: 146°, Vertical: 82° |
| WDR | Support |
| Resolution | 2 MP |
| Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio compression standard | G.711 U, G.711 A |
| Audio output | Built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Fingerprint capacity | / |
| User capacity | 2000 |
| Face capacity | NA |
| Card capacity | 6000 |
| Linked indoor station capacity | 500 |
| Event capacity | / |
| Sub door station capacity | 16 |
| Network parameters | |
| Communication protocol | TCP/IP, RTSP |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| Wi-Fi | NA |
| Bluetooth | NA |
| 3G/4G | NA |
| Device interfaces | |
| Alarm input | 4 (2 exit butttons and 2 door contacts by default) |
| Network interface | 1 RJ45 |
| TAMPER | 1 |
| Exit button | 2 (2 for lock control) |
| Door contact input | 1 |
Name
Description
Size
Downloads
File
Data Sheet
0.5mb
File
Quick Start Guide
1.2mb
