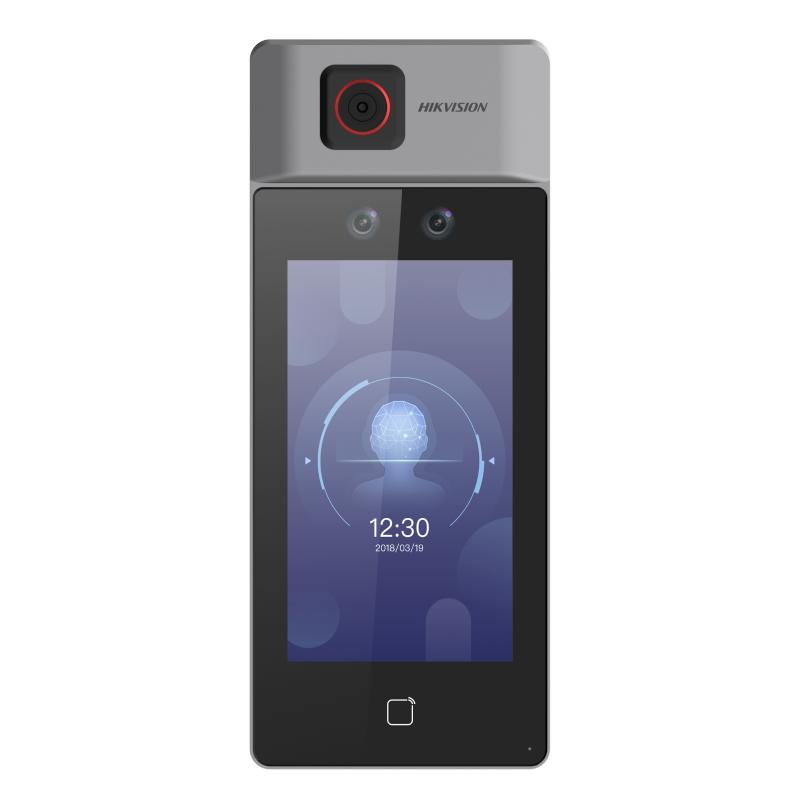

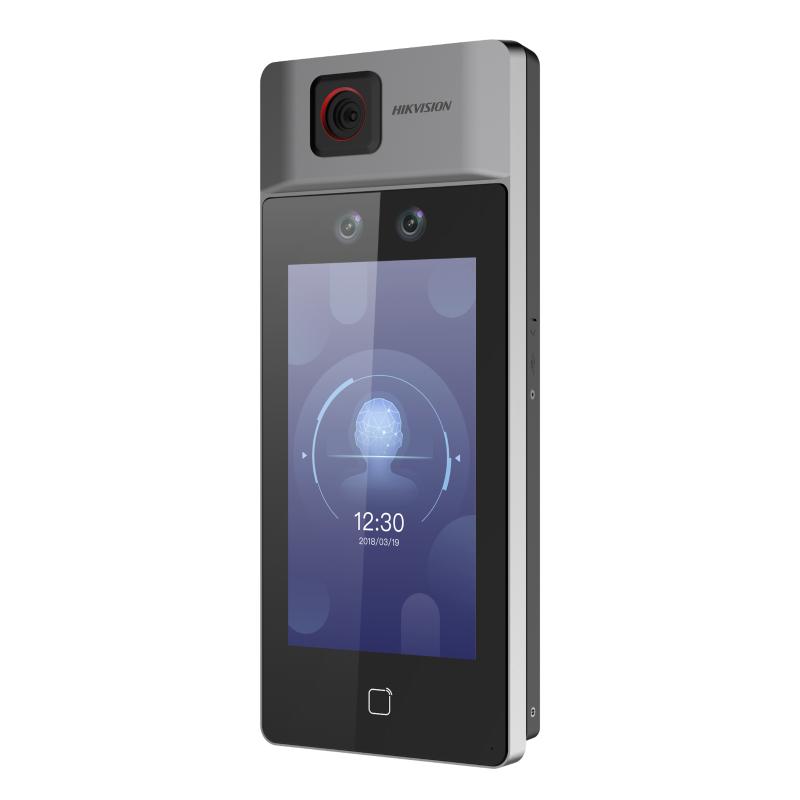

Hikvision - DS-K1T671TM-3XF - TEMP Screening Terminal
Part number:
DS-K1T671TM-3XF
Price:

Ultra Face Recognition Terminals. DS-K1T671TM-3XF face recognition terminal is a kind of access control device integrated with temperature screening function. It can fast take temperature and upload abnormal temperature event to the center, which can be widely applied in multiple scenarios, such as enterprises, stations, dwellings, factories, schools, campus and so on. Note that the device is not for medical use.



Features:

  • Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
  • Recognition distance: 0.3 to 2 m
  • Face mask detection
  • Displays temperature measurement results on the authentication page
  • 7-inch LCD touch screen,2 Mega pixel wide-angle lens
  • Built-in Mifare card reading module
  • Face recognition duration < 0.2 s/User
  • face recognition accuracy rate ≥ 99%
  • 50,000 face capacity, 50,000 card capacity, and 100,000 event capacity
Specification
System
Operating systemLinux
Temperature measurement
Temperature range30 °C to 45 °C (86 °F to 113 °F)
SensorVanadium Oxide uncooled sensor
Resolution120 × 160
Frame rate25 fps
Measurement accuracy0.1 °C
Measurement deviation± 0.5 °C, without black body calibration
Measuring distance0.3 to 2 m
Display
Screen size7-inch
Operation methodTouch screen
Video
LensDual-lens
Resolution2 MP
FOVHFOV= 46°;VFOV=87°
Network
Wired networkSupport, 10/100/1000 Mbps self-adaptive
Wi-FiNot support
Interface
Network interface1
Lock control1
Exit button1
Door contact input1
Alarm input2
Alarm output1
TAMPER1
RS-4851
Wiegand1
USB2
Capacity
Face capacity50,000
Card capacity50,000
Event capacity100,000
Function
Face anti-spoofingSupport
Audio promptSupport
General
Power supply12 VDC/2 A
Working temperature

0 °C to 50 °C (32 °F to 122 °F)

For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F)

Working humidity10 to 90% (No condensing)
