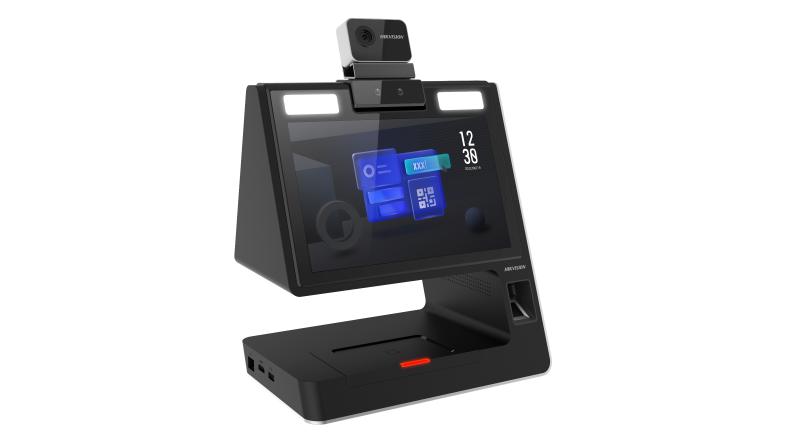

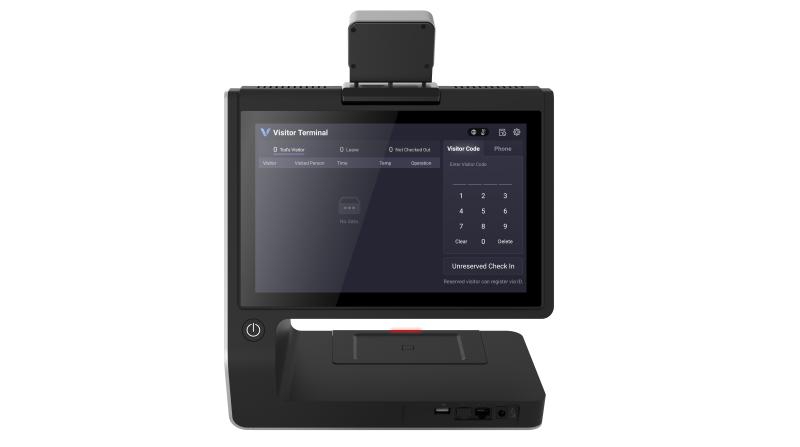

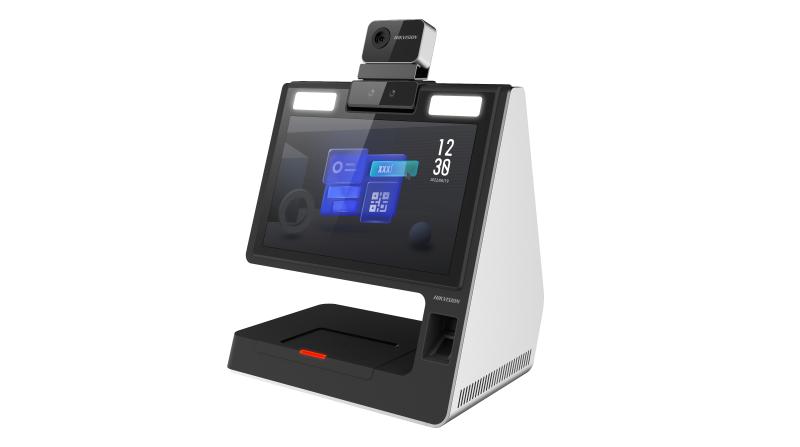

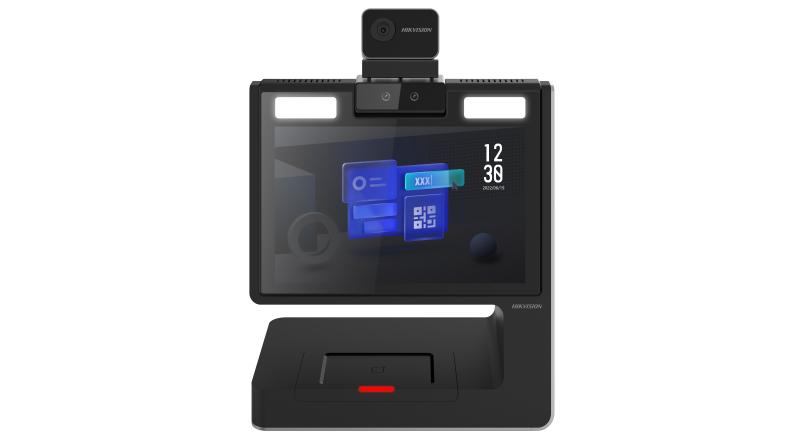

Hikvision - DS-K5032-3XFD - Temp Visitor Terminal
Part number:
DS-K5032-3XFD
Price:
Pro Series Visitor Terminal. The visitor terminal is designed for visitor management, integrated with temperature measurement, which is mainly applied to enterprises, stations, university campuses, factories, etc.
Features:
- Android operation system with dual-screen design.
- Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
- Recognition distance: 0.3 to 2 m
- Fast temperature measurement for visitor
- Paperless visitor enrollment.
- TCP/IP and Wi-Fi are available for networking application.
- Up to 150,000 visitor records can be stored on the device.
| Specification | |
| System | |
| Operation system | Android 7.1.2 |
| Temperature measurement | |
| Temperature range | 30 °C to 45 °C (86 °F to 113 °F) |
| Sensor | Vanadium Oxide uncooled sensor |
| Resolution | 120 × 160 |
| Frame rate | 25 fps |
| Measurement accuracy | 0.1 °C |
| Measurement deviation | ± 0.5 °C, without black body calibration |
| Measuring distance | 0.3 to 2 m |
| Display | |
| Size | For administrator and visitor: 10.1-inch |
| Resolution | 1280 × 800 |
| Operation method | For administrator: LCD touch screen For visitor: display screen |
| Video | |
| Pixel | 2 MP |
| Lens | 2 |
| WDR | Support |
| Audio | |
| Audio output | Built-in loudspeaker |
| Network | |
| Wired network | Support |
| Wi-Fi | Support, 2.4 G |
| Interface | |
| Network interface | |
| Power interface | Round |
| USB | |
| Capacity | |
| Visitor record | 150,000 |
| Authentication | |
| Card type | M1 card |
| Card reading frequency | 13.56 MHz |
| Card reading distance | 0 to 4 cm |
| Card reading duration | ＜ 1 s |
| General | |
| Indicator | Red/green indicator |
| Power supply | 12 VDC, 3 A |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no condensing) |
