The affordable Archer C80 delivers high-performance WiFi with total speeds up to 1900 Mbps. Handle simple tasks like sending e-mails or web browsing on the 2.4 GHz band and bandwidth-intensive tasks like online gaming or 4K/8K UHD streaming on the 5 GHz band—all lag-free.
Features:
| WIRELESS | |
| Standards | Wi-Fi 5 |
| IEEE 802.11ac/n/a 5 GHz | |
| IEEE 802.11n/b/g 2.4 GHz | |
| WiFi Speeds | AC1900 |
| 5 GHz: 1300 Mbps (802.11ac) | |
| 2.4 GHz: 600 Mbps (802.11n) | |
| WiFi Range | 3 Bedroom Houses 4× Fixed High-Performance Antennas |
| Multiple antennas form a signal-boosting array to cover more directions and large areas | |
| Beamforming | |
| Concentrates wireless signal strength towards clients to expand WiFi range | |
| WiFi Capacity | Medium Dual-Band |
| Allocate devices to different bands for optimal performance | |
| 3×3 MU-MIMO | |
| Simultaneously communicates with multiple MU-MIMO clients | |
| Airtime Fairness | |
| Improves network efficiency by limiting excessive occupation | |
| Working Modes | Router Mode |
| Access Point Mode | |
| HARDWARE | |
| Processor | 1.2 GHz CPU |

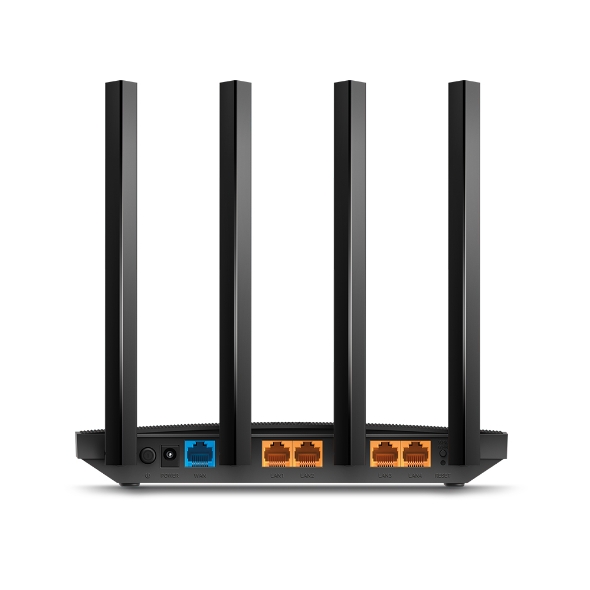

| Ethernet Ports | 1× Gigabit WAN Port |
| 4× Gigabit LAN Ports | |
| Buttons | WPS/Wi-Fi Button |
| Power On/Off Button | |
| Reset Button | |
| Power | US Version |
| 12 V ⎓ 1.5 A | |
| SECURITY | |
| WiFi Encryption | WPA |
| WPA2 | |
| WPA3 | |
| WPA/WPA2-Enterprise (802.1x) | |
| Network Security | SPI Firewall |
| Access Control | |
| IP & MAC Binding | |
| Application Layer Gateway | |
| Guest Network | 1× 5 GHz Guest Network |
| 1× 2.4 GHz Guest Network | |
| SOFTWARE | |
| Protocols | IPv4 |
| IPv6 | |
| OneMesh™ | OneMesh™ Supported |
| Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. | |
| Parental Controls | URL Filtering |
| Time Controls | |
| WAN Types | Dynamic IP |
| Static IP | |
| PPPoE | |
| PPTP | |
| L2TP | |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade |
| TP-Link ID | |
| DDNS | |
| NAT Forwarding | Port Forwarding |
| Port Triggering | |
| DMZ | |
| UPnP | |
| IPTV | IGMP Proxy |
| IGMP Snooping | |
| Bridge | |
| Tag VLAN | |
| DHCP | Address Reservation |
| DHCP Client List | |
| Server | |
| DDNS | TP-Link |
| NO-IP | |
| DynDNS | |
| Management | Tether App |
| Webpage | |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Cable or DSL Modem (if needed) | |
| Subscription with an internet service provider (for internet access) | |
| Certifications | FCC, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| TEST DATA | |
| WiFi Transmission Power | FCC: |
| <30dBm(2.4GHz & 5GHz) | |
| WiFi Reception Sensitivity | 5GHz: |
| 11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm | |
| 11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm | |
| 11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm | |
| 11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm | |
| 2.4GHz: | |
| 11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm | |
| 11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm | |
| 11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm | |
| PHYSICAL | |
| Dimensions (W×D×H) | 8.5 × 4.6 × 1.26 in |
| (215 × 117 × 32 mm) | |
| Package Contents | Wi-Fi Router Archer C80 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
