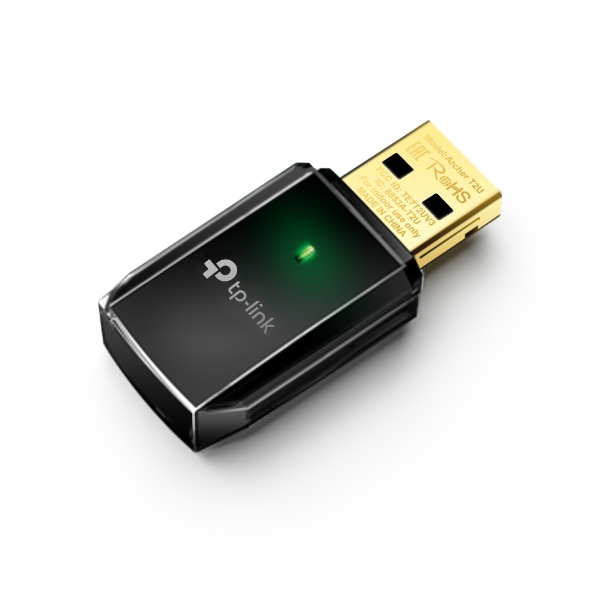

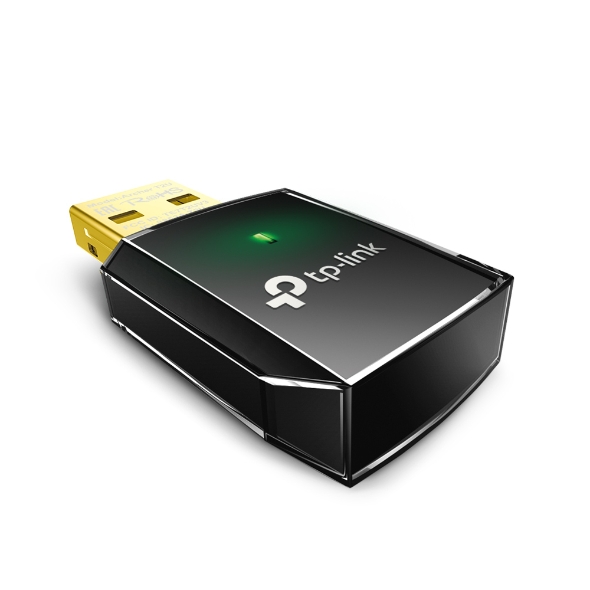

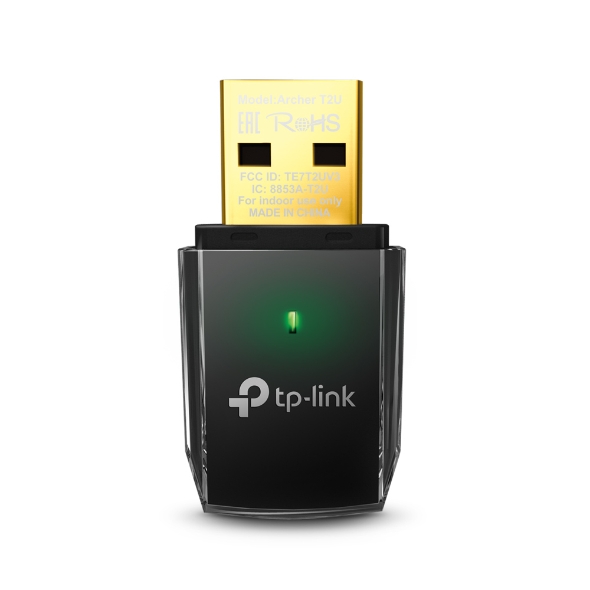

TP-Link - ARCHER T2U - AC600 Wireless Dual Band USB Adapter
Part number:
ARCHER T2U
Price:
The Archer T2U receives WiFi signals on two separate bands. Supporting 256QAM technology increases 2.4GHz data rate from 150Mbps to 200Mbps for 33% faster performance.
433Mbps on 5GHz is ideal for HD video streaming and lag-free online gaming, while 200Mbps on 2.4GHz is perfect for normal use such as web surfing with legacy devices.
Features:
- High WiFi Speed: AC600 (200 Mpbs on 2.4GHz band and 433 Mbps on 5GHz band) wireless speed with the next generation Wi-Fi - 802.11ac
- Dual-Band Wireless: Selectable dual-band connections for lag-free HD video streaming and gaming
- Mini Design: A tiny way to get speedy next generation Wi-Fi connections
- Operating System: Windows and Mac OS
- Advanced Security:Supports 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption standards
| HARDWARE FEATURES | |
| Interface | USB 2.0 |
| LED | Status |
| Dimensions ( W x D x H ) | 1.6×0.7×0.3 in. (41×19.5×8.7mm) |
| Antenna Type | Omni Directional |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac, IEEE 802.11a, |
| IEEE 802.11n, IEEE 802.11g, IEEE 802.11b | |
| Frequency | 5GHz |
| 2.4GHz | |
| Signal Rate | 5GHz |
| 11ac: Up to 433Mbps(dynamic) | |
| 11n: Up to 150Mbps(dynamic) | |
| 11a: Up to 54Mbps(dynamic) | |
| 2.4GHz | |
| 11n: Up to 150Mbps(dynamic) | |
| 11g: Up to 54Mbps(dynamic) | |
| 11b: Up to 11Mbps(dynamic) | |
| Reception Sensitivity | 5GHz： |
| 11a 6Mbps: -94dBm | |
| 11a 54Mbps: -78dBm | |
| 11n HT20 MCS0: -94dBm | |
| 11n HT20 MCS7: -77dBm | |
| 11n HT40 MCS0: -92dBm | |
| 11n HT40 MCS7: -74dBm | |
| 11ac VHT80 MCS0: -89dBm | |
| 11ac VHT80 MCS9: -64dBm | |
| 2.4GHz: | |
| 11b 1Mbps: -99dBm | |
| 11b 11Mbps: -91dBm | |
| 11g 6Mbps: -94dBm | |
| 11g 54Mbps: -77dBm | |
| 11n HT20 MCS0: -95dBm | |
| 11n HT20 MCS7: -76dBm | |
| 11n HT40 MCS0: -92dBm | |
| 11n HT40 MCS7: -73dBm | |
| Transmit Power | <20dBm (EIRP) |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | Wireless Adapter Archer T2U |
| Resource CD | |
| Quick Installation Guide | |
| System Requirements | Windows & MacOS |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Installation Guide for Linux
1.1mb
