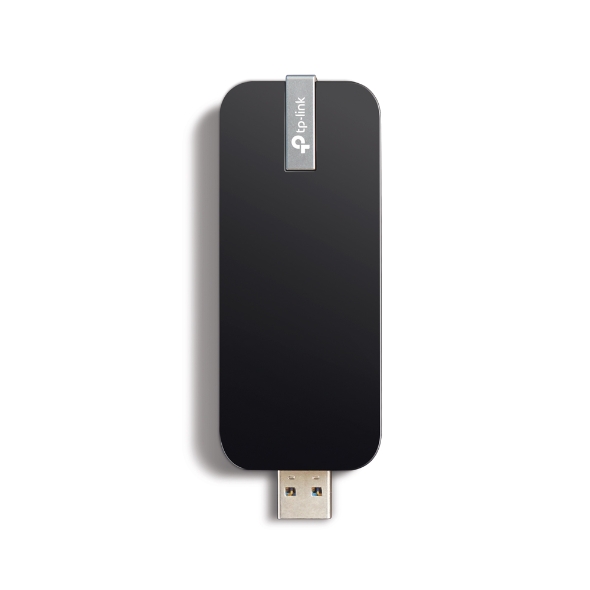

TP-Link - ARCHER T4U_V3 - AC1300 Wireless Dual Band USB Adapter
Part number:
ARCHER T4U_V3
Price:
Wireless AC technology means Archer T4U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed Wi-Fi (up to 867Mbps over the 5GHz band and 400Mbps over the 2.4GHz band) means Archer T4U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.
Features:
- Ultra-fast Wi-Fi – 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard*
- Dual Band Wireless - 2.4GHz and 5GHz bands for flexible connectivity
- High gain antennas – Improved range, signal quality and transmission performance
- MU-MIMO –Delivers highly efficient wireless connection**
- Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0***
- WPS Button - Easy wireless security encryption at the push of the WPS button
| HARDWARE FEATURES | |
| Interface | USB 3.0 |
| Button | WPS button |
| Dimensions ( W x D x H ) | 3.64×1.24×0.55 in. (92.47×31.55×13.9mm) |
| Antenna | 2 High Gain External Antennas |
| Antenna Type | Omni Directional |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac, IEEE 802.11a, |
| IEEE 802.11n, IEEE 802.11g, IEEE 802.11b | |
| Frequency | 5GHz |
| 2.4GHz | |
| Signal Rate | 5GHz |
| 11ac: Up to 867Mbps(dynamic) | |
| 11n: Up to 300Mbps(dynamic) | |
| 11a: Up to 54Mbps(dynamic） | |
| 2.4GHz | |
| 11n: Up to 400Mbps(dynamic) | |
| 11g: Up to 54Mbps(dynamic) | |
| 11b: Up to 11Mbps(dynamic) | |
| Transmit Power | <20dBm (EIRP) |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK |
| Modulation Technology | DBPSK, DQPSK, CCK, 16-QAM, 64-QAM, 256-QAM |
| OTHERS | |
| Certification | CE, FCC, RoHS |

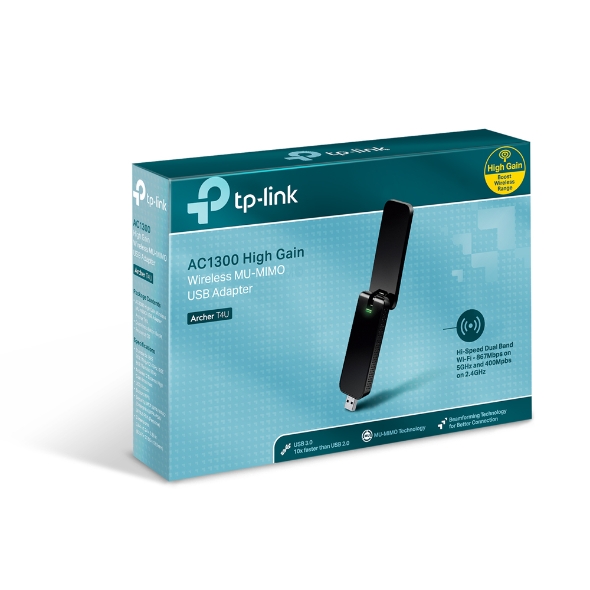

| Package Contents | AC1300 High Gain Wireless MU-MIMO USB Adapter Archer T4U |
| Quick Installation Guide | |
| Resource CD | |
| System Requirements | Windows 11/10/8.1/8/7/XP, Mac OS X 10.9-10.13 |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
Name
Description
Size
Downloads
File
Datasheet
0.1mb
File
Quick Installation Guide
0.2mb
File
Quick Installation Guide for Linux
1.1mb
