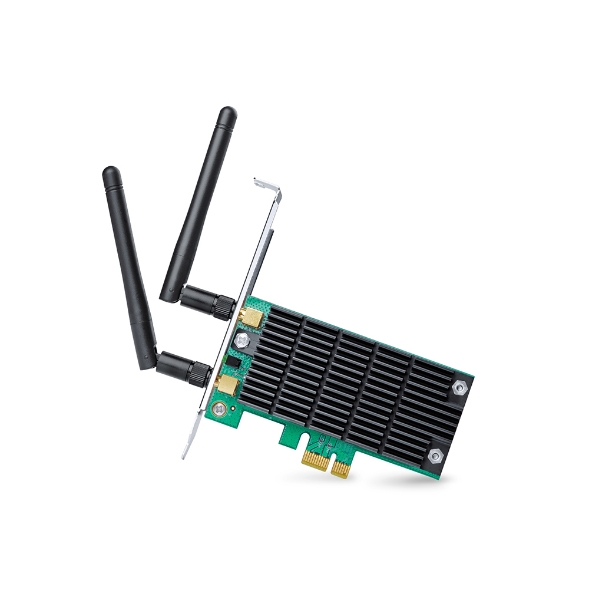

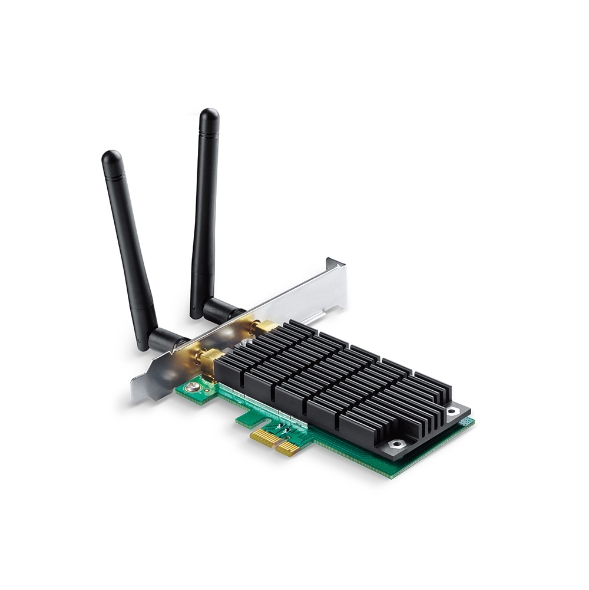

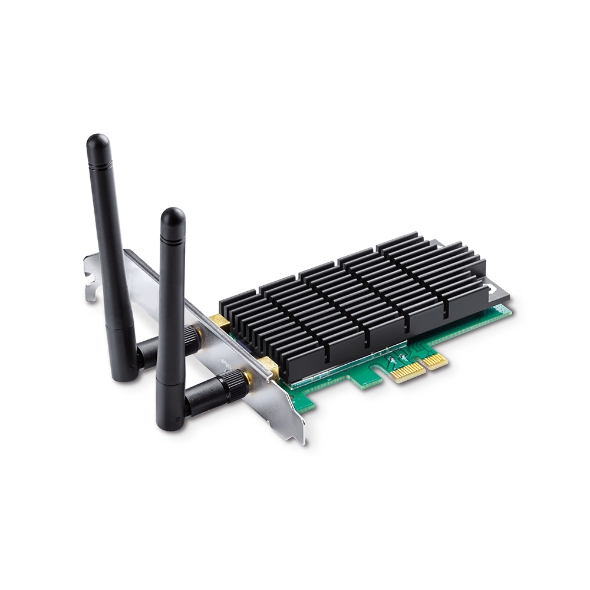

TP-Link - ARCHER T6E - AC1300 Wireless Dual Band PCI Express Adapter
Part number:
ARCHER T6E
Price:
TP-LINK's Archer T6E supports the next generation Wi-Fi standard - IEEE 802.11ac, offering transfer rates that are 3 times faster than wireless N speeds. Easily upgrade your desktop system by simply slotting the Wi-Fi adapter into an available PCI-E slot.
Features:
- Easy Installation – Upgrade your desktop system easily by plugging the Archer T6E Wi-Fi adapter into an available PCI-E slot
- Hi-Speed Wi-Fi – Up to 1300Mbps Wi-Fi speeds (867Mbps on 5GHz band or 400Mpbs on 2.4GHz band)*
- 802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for hi-intensity network usage
- Backward Compatibility – With support for 802.11 a/b/g/n standards
- Broad Wireless Range – 2 external antennas ensure a greater range of Wi-Fi connection and stability
| HARDWARE FEATURES | |
| Interface | PCI Express |
| Dimensions ( W x D x H ) | 4.8 x 4.5 x 0.85 in. (120.8 x 115.2 x 21.5 mm) |
| Antenna Type | 2 Dual Band Detachable Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac/n/a 5GHz, |
| IEEE 802.11b/g/n 2.4GHz | |
| Frequency | 2.4GHz or 5GHz |
| Signal Rate | 867Mbps at 5GHz, |
| 400Mbps at 2.4GHz | |
| Reception Sensitivity | 5GHz : |
| 11a: -68dBm | |
| 11n HT20: -64dBm | |
| 11n HT40: -61dBm | |
| 11ac HT20: -59dBm | |
| 11ac HT40: -54dBm | |
| 11ac HT80: -51dBm | |
| 2.4GHz : | |
| 11b: -76dBm | |
| 11g: -68dBm | |
| 11n HT20: -64dBm | |
| 11n HT40: -61dBm | |
| Transmit Power | 5GHz : <23dBm (EIRP), |
| 2.4GHz : <20dBm (EIRP) | |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| OTHERS | |
| System Requirements | Windows 10/8.1/8/7/XP (32/64bits) |
