TP-Link - ARCHER T9UH - AC1900 WRLS USB ADAPTER WRLS USB 3.0 EXTERNAL ANTENNA
Part number:
ARCHER T9UH
Price:
The Archer T9UH supports dual band Wi-Fi—use the 5GHz band for lag-free gaming and HD streaming, and the 2.4GHz band for video calls and shopping online.
Features:
- Ultimate Wi-Fi Speed– AC1900 (600Mpbs on 2.4GHz band or 1300Mbps on 5GHz band) wireless speed with the next generation Wi-Fi - 802.11ac*
- Dual Band Wireless– 2.4GHz and 5GHz band for flexible connectivity
- Ultimate Range – High gain antennas ensure superior range and stability
- Beamforming Technology – Delivers a more targeted and highly efficient wireless connections
- Super Speed USB 3.0 Port - Up to 10x faster than USB 2.0**

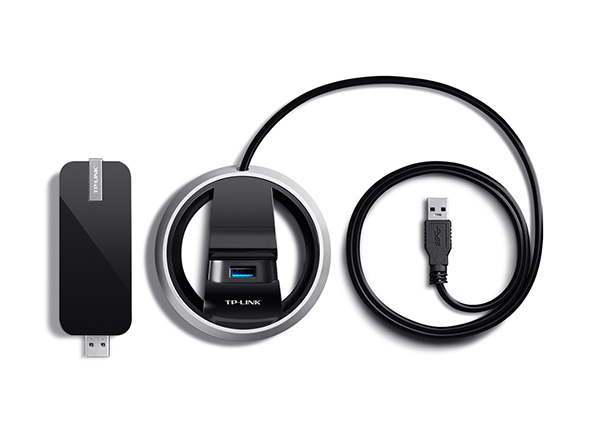

- Flexible Deployment - Equipped with a USB 3.0 Cradle for flexible deployment
- WPS Button - Easy wireless security encryption at a push of the WPS button
- Backward Compatibility – With support for 802.11 a/b/g/n standards
| HARDWARE FEATURES | |
| Interface | USB 3.0 |
| Button | WPS button |
| Wireless Standards | |
| Dimensions ( W x D x H ) | 3.96×1.44×0.56in. (100.53×36.6×14.3mm) |
| Antenna | |
| Antenna Type | Omni Directional |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac, IEEE 802.11a,IEEE 802.11n,IEEE 802.11g, IEEE 802.11b |
| Frequency | 5GHz，2.4GHz |
| Signal Rate | 5GHz： |
| 11ac: Up to 1300Mbps(dynamic) | |
| 11n: Up to 450Mbps(dynamic) | |
| 11a: Up to 54Mbps(dynamic) | |
| 2.4GHz： | |
| 11n: Up to 600Mbps(dynamic) | |
| 11g: Up to 54Mbps(dynamic) | |
| 11b: Up to 11Mbps(dynamic) | |
| Transmit Power | <20dBm (EIRP) |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | Wireless Adapter Archer T9UH |
| Resource CD | |
| Quick Installation Guide | |
| USB Cradle | |
| System Requirements | Windows 11/10/8.1/8/7/XP (32/64bits), Mac OS 10.9~10.13 |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
Installation Guide for Linux
1.1mb
