TP-Link - ARCHER TX3000E - AX3000 WRLS 6 BLUETOOTH 5.0 WRLS PCIE ADAPTER
Part number:
ARCHER TX3000E
Price:
The very latest Wi-Fi 6 standard guarantees extreme speed, ultra-low latency, and uninterrupted connectivity. Utilizing the Wi-Fi 6 foundation, Archer TX3000E is designed to liberate your gaming from cables and fully optimize your gameplay. Discover the missing component of your gaming arsenal.
Features:
- Unrivaled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)†§
- Smoother Experience—75% lower latency ensures ultra-responsive real-time gaming*
- Reliable Connections—Intel Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router‡

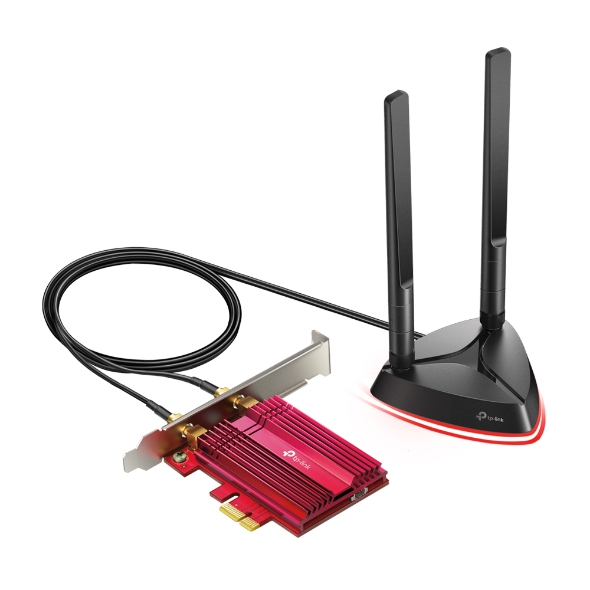

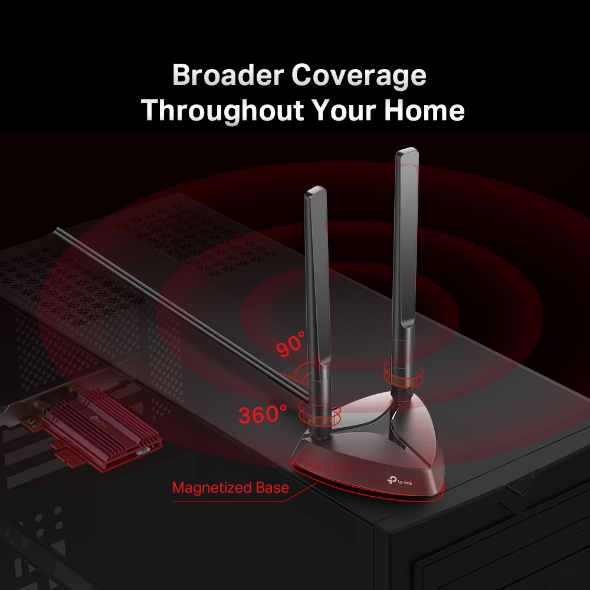

- Wider Signal Coverage—Two multi-directional antennas with a magnetized base are designed for optimum signal reception
- Bluetooth 5.2—The latest Bluetooth technology achieves Faster Speed and Broader Coverage than older versions***
- Improved Security—The latest security enhancements WPA3 provide enhanced protection in personal password safety**
- Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
- Backward Compatibility – Full support for 802.11ac/a/b/g/n standards
| HARDWARE FEATURES | |
| Interface | PCI Express x1/x4/x8/x16 |
| Dimensions | 3.7 x 4.8 x 0.8 in |
| (95.2 x 120.8 x 21.5 mm) | |
| Antenna Type | Two High-Gain Dual Band Antennas |
| Magnetized Antenna Base | |
| Chipset | Intel Wi-Fi 6 Chipset |
| BLUETOOTH FEATURES | |
| Standards and Protocols | Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0 |
| Interface | F_USB 2.0 |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz |
| IEEE 802.11ax/n/g/b 2.4 GHz | |
| Bluetooth 5.0/4.2/4.0 | |
| WLAN Signal Rate | 5 GHz |
| 11ax: Up to 2402 Mbps(dynamic) | |
| 11ac: Up to 1733 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11a: Up to 54 Mbps(dynamic) | |
| 2.4 GHz | |
| 11ax: Up to 574 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11g: Up to 54 Mbps(dynamic) | |
| 11b: Up to 11 Mbps(dynamic) | |
| WLAN Reception Sensitivity | 5 GHz : |
| 11ax HT160：-56.25dBm | |
| 11ax HT80: -59dBm | |
| 11ax HT40: -62.25dBm | |
| 11ax HT20: -65dBm | |
| 11ac HT160：-62dBm | |
| 11ac HT80: -65.5dBm | |
| 11ac HT40: -69.75dBm | |
| 11ac HT20: -73.75dBm | |
| 11n HT40: -74.5dBm | |
| 11n HT20: -77.5dBm | |
| 11a 54Mbps: -77.75dBm | |
| 11a 6Mbps: -94.5dBm | |
| 2.4GHz : | |
| 11ax HT40: -60.75dBm | |
| 11ax HT20: -63.75dBm | |
| 11n HT40: -73dBm | |
| 11n HT20: -76.25dBm | |
| 11g 54Mbps: -76.5dBm | |
| 11b 11Mbps: -89dBm | |
| WLAN Transmit Power | 5 GHz: 28dBm(FCC) / 23dBm(CE) (EIRP), |
| 2.4 GHz : 24dBm(FCC) / 20dBm(CE) (EIRP) | |
| WLAN Modes | Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2/WPA3, |
| WPA-PSK/WPA2-PSK, 802.1x | |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, |
| 256-QAM, 1024QAM | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | Archer TX3000E |
| Magnetized Antenna Base with 1m RF Cable | |
| Two High Gain Antennas | |
| Low-Profile Bracket | |
| Bluetooth Header Cable | |
| Quick Installation Guide | |
| Resource CD | |
| System Requirements | Windows 11/10(64-bit) only |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
Name
Description
Size
Downloads
File
Quick Installation Guide
0.2mb
