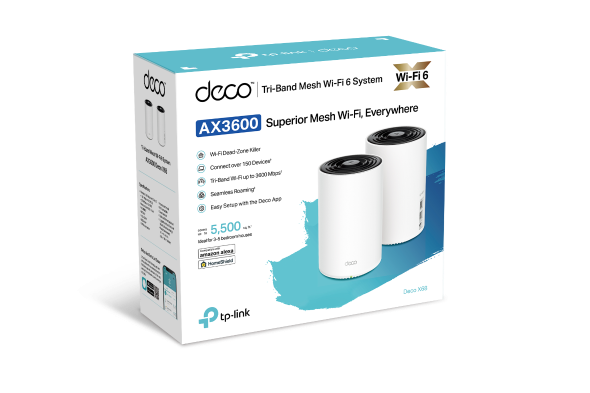

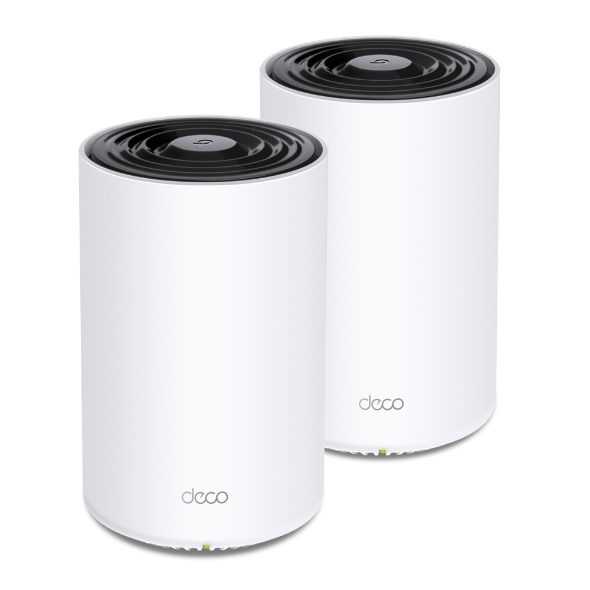

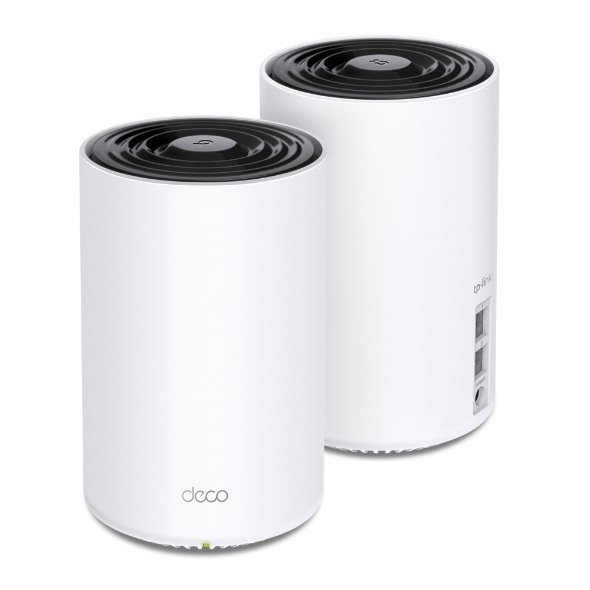

TP-Link - DECO X68(2-PACK) - AX3600 WHOLE HOME MESH WI-FI 6 WRLS SYST
Part number:
DECO X68(2-PACK)
Price:
AX3600 Whole Home Mesh WiFi 6 System
Features:
- AX3600 Tri-Band WiFi 6: Boosts overall speeds up to an incredible 3600 Mbps†
- Ai-Driven Mesh: Intelligently learns the network environment to provide ideal WiFi unique to your home

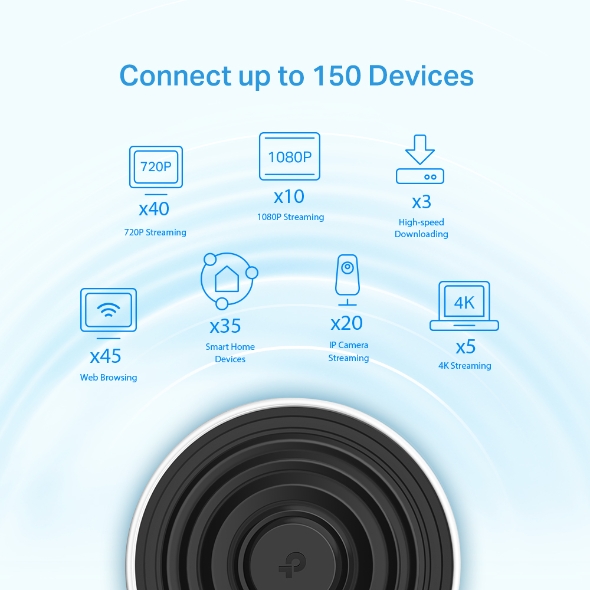

- Connect More Devices: Connect over 150 devices without dragging down performance†
- Boosted Seamless Coverage: Achieve seamless whole-home coverage with a faster and more reliable whole-home WiFi signal generated by WiFi 6
- TP-Link HomeShield: Keeps your home network safe with cutting-edge features for network and IoT protection*
- Setup Made Easier Than Ever: The Deco app walks you step-by-step through the setup
| WIRELESS | |
| Standards | Wi-Fi 6 |
| IEEE 802.11ax/ac/n/a 5 GHz | |
| IEEE 802.11ax/n/b/g 2.4 GHz | |
| WiFi Speeds | AX3600 |
| 5 GHz: 1802 Mbps (802.11ax) | |
| 5 GHz: 1201 Mbps (802.11ax) | |
| 2.4 GHz: 574 Mbps (802.11ax) | |
| WiFi Range | 4-7+ Bedroom Houses (3-pack) |
| TP-Link Mesh Technology | |
| Optional Ethernet backhaul work together to link Deco units to provide seamless coverage | |
| 5× High-Gain Antennas | |
| Multiple antennas form a signal-boosting array to cover more directions and large areas | |
| Tri-Band | |
| Provides an extra 5 GHz band working exclusively as the strong backhaul, strengthening the WiFi coverage | |
| Beamforming | |
| Concentrates wireless signal strength towards clients to expand WiFi range | |
| WiFi Capacity | High |
| Tri-Band | |
| Distribute devices to different bands for optimal performance | |
| 3×3 MU-MIMO | |
| Simultaneously communicates with multiple MU-MIMO clients | |
| OFDMA | |
| Simultaneously communicates with multiple WiFi 6 clients | |
| 7 Streams | |
| More than enough bandwidth for connected devices | |
| Working Modes | Router Mode |
| Access Point Mode | |
| HARDWARE | |
| Ethernet Ports | 2× Gigabit Ports |
| *Per Deco Unit | |
| Supports WAN/LAN auto-sensing | |
| Buttons | Reset Button |
| SECURITY | |
| WiFi Encryption | WPA-Personal |
| WPA2-Personal | |
| WPA3-Personal | |
| Network Security | SPI Firewall |
| Access Control | |
| HomeShield Security Real-Time IoT Protection | |
| Malicious Site Blocker | |
| Intrusion Prevention System | |
| DDoS Attack Prevention | |
| Home Network Scanner | |
| Guest Network | 1× 5 GHz Guest Network |
| 1× 2.4 GHz Guest Network | |
| SOFTWARE | |
| Protocols | IPv4 |
| IPv6 | |
| Service Kits | HomeShield |
| Learn More> | |
| Parental Controls | HomeShield Parental Controls Custom Profiles |
| Professional Content Filter Library | |
| Family Time | |
| Bedtime | |
| Off Time | |
| Time Rewards | |
| Family Online Time Ranking | |
| Pause the Internet | |
| Weekly and Monthly Reports | |
| WAN Types | Dynamic IP |
| Static IP | |
| PPPoE | |
| PPTP | |
| L2TP | |
| Quality of Service | HomeShield QoS QoS by Device |
| Cloud Service | OTA Firmware Upgrade |
| TP-Link ID | |
| DDNS | |
| NAT Forwarding | Port Forwarding |
| UPnP | |
| IPTV | IGMP Proxy |
| IGMP Snooping | |
| Bridge | |
| Tag VLAN | |
| DHCP | Address Reservation |
| DHCP Client List | |
| Server | |
| DDNS | TP-Link |
| Management | Deco App |
| TEST DATA | |
| WiFi Transmission Power | CE: |
| <20 dBm (2.4 GHz) | |
| <23 dBm (5 GHz) | |
| FCC: | |
| <30 dBm (2.4 GHz) | |
| <30 dBm (5 GHz) | |
| PHYSICAL | |
| Dimensions (W×D×H) | 4.1 × 4.1 × 6.7 in |
| (105 × 105 × 168 mm) | |
| Package Contents | Deco X68 (3-pack) |
| 3 Deco X68 Units | |
| 1 RJ45 Ethernet Cable | |
| 3 Power Adapters | |
| 1 Quick Installation Guide | |
| OTHERS | |
| System Requirements | Android 5.0 or later |
| iOS 9.0 or later | |
| *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. | |
| Certifications | CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
