TP-Link - EAP110-OUTDOOR_V3 - 300MBPS WRLS N OUTDOOR WRLS ACCESS POINT
Part number:
EAP110-OUTDOOR_V3
Price:
N300 Wireless N Ceiling Mount Access Point
Features:
- Cloud centralized management and Omada app for ultra convenience and easy management
- Supports passive PoE for convenient installation up to 100meters
- Ceiling mounting design with chassis makes it easy to deploy on a wall or ceiling
- The captive portal provides modern and professional user sign-in experience
- Facebook check-in and SMS authentication expands your social exposure with secured technology
- Multi-SSID divides multiple wireless networks for different user groups
- Enterprise class Wi-Fi security help to decrease network security threats
- Supports management VLAN for an enhanced network management
| HARDWARE FEATURES | |

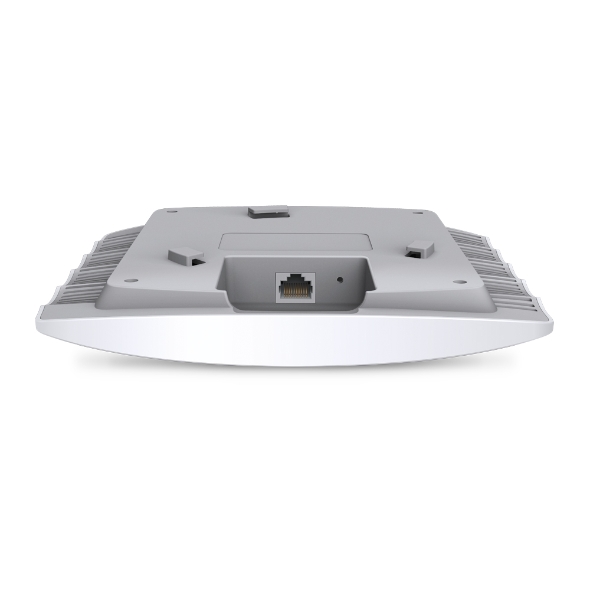

| Interface | Fast Ethernet (RJ-45) Port x 1（Support Passive PoE） |
| Physical Security Lock | Kensington Lock Slot |
| Button | Reset |
| Power Supply | 24V Passive PoE |
| (+4,5pins; -7,8pins. PoE Adapter Included) | |
| Power Consumption | 2.8 W |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 7.5×6.8×1.2 in (189.4×172.3×29.5mm) |
| Dimensions | 7.5×6.8×1.2 in. |
| (189.4×172.3×29.5mm) | |
| Antenna Type | Internal 2 x 4dBi omni-directional |
| Mounting | Ceiling /Wall Mounting |
| (mounting kit included) | |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) |
| 11g: Up to 54Mbps(dynamic) | |
| 11b: Up to 11Mbps(dynamic) | |
| Reception Sensitivity | 300M: -71dBm@10% PER |
| 150M: -75dBm@10% PER | |
| 54M: -78dBm@10% PER | |
| 11M: -93dBm@8% PER | |
| 6M: -92dBm@10% PER | |
| 1M: -96dBm@8% PER | |
| Wireless Functions | Multiple SSIDs （Up to 8 SSIDs） |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control （adjustable in 1 dBm step） | |
| QoS(WMM) | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Rogue AP Detection | |
| 802.1X Support | |
| 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK | |
| Transmission Power | 21dBm max. |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Omada Controller Software | Yes |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | 300Mbps Wireless N Ceiling Mount Access Point EAP110 |
| Passive PoE Adapter | |
| Power Cord | |
| Mounting Kit | |
| Installation Guide | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
Name
Description
Size
Downloads
File
Overview of Regulatory Compliance
0.6mb
