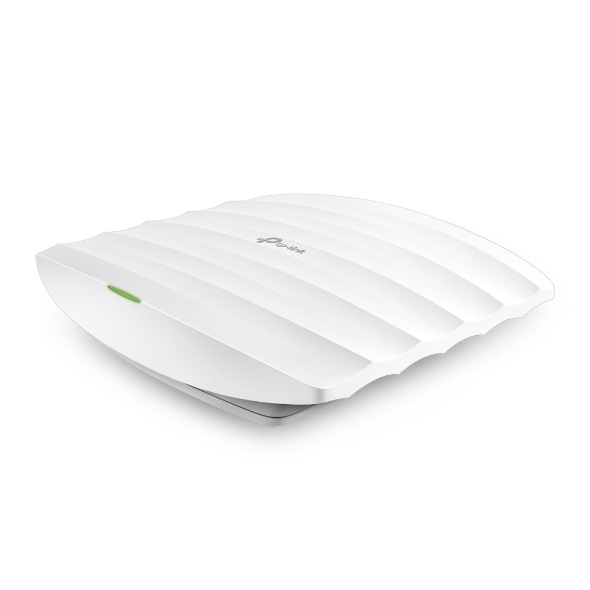

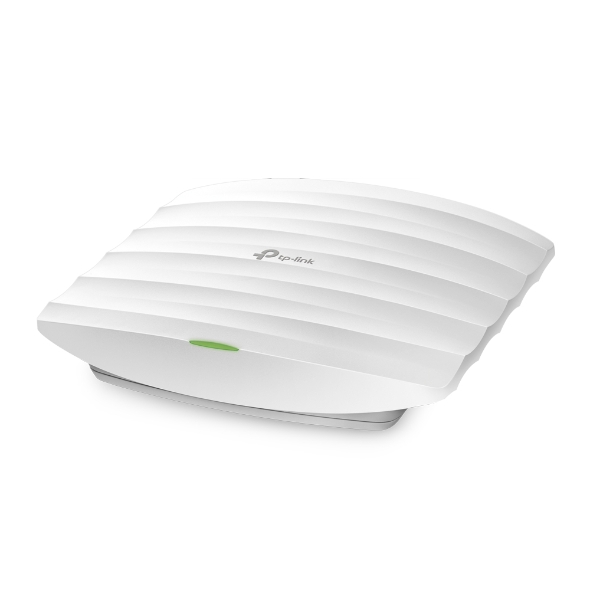

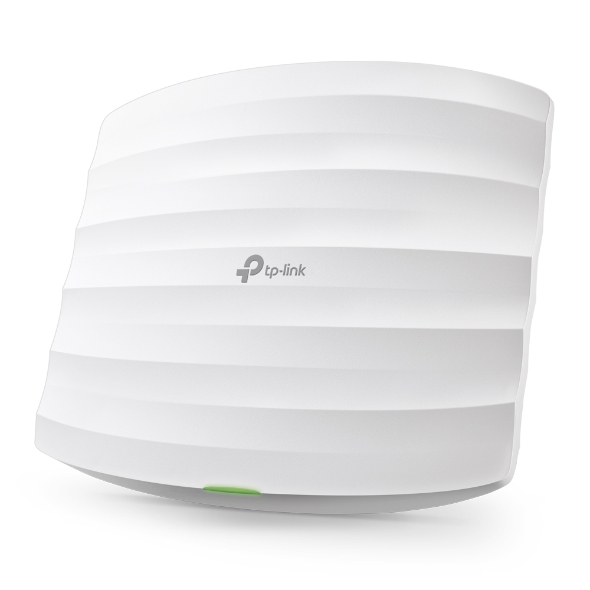

TP-Link - EAP115_V4 - 300MBPS WIRELESS N CEILING WRLS MOUNT ACCESS POINT
Part number:
EAP115_V4
Price:
N300 Wireless N Ceiling Mount Access Point
Features:
-
Omada cloud software controller center controls hundreds of EAPs
-
Powered by standard 802.3af PoE for convenient installation
-
Simple mounting design for easy attachment to a wall or ceiling
-
Web captive portal provides a professional and convenient way to get the Wi-Fi access
-
Advertising page, Facebook Wi-Fi and SMS authentication help to boost your business
-
Enterprise-class Wi-Fi security help to lower network security threats
-
Multi-SSIDs separates the different groups of users with different resource privileges
-
Supports management VLAN for an enhanced network management
| HARDWARE FEATURES | |
|---|---|
| Interface | Fast Ethernet (RJ-45) Port x 1 (IEEE802.3af PD) |
| Physical Security Lock | Kensington Lock Slot |
| Button | Reset |
| Power Supply | 802.3af PoE or external 9VDC/0.6A power supply |
| Power Consumption | 2.8W |
| Dimensions ( W x D x H ) | 7.5×6.8×1.2 in (189.4×172.3×29.5mm) |
| Dimensions | 7.5×6.8×1.2 in. (189 × 172 × 30 mm) |
| Antenna Type | 2 x Internal 4dBi Omni |
| Mounting | Ceiling or wall mounting (mounting kit included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Wireless Functions | Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (adjustable on 1 dBm step） QoS (WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| Transmission Power | < 21dBm |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Omada Controller Software | Yes |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| EAP Controller Software | |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |

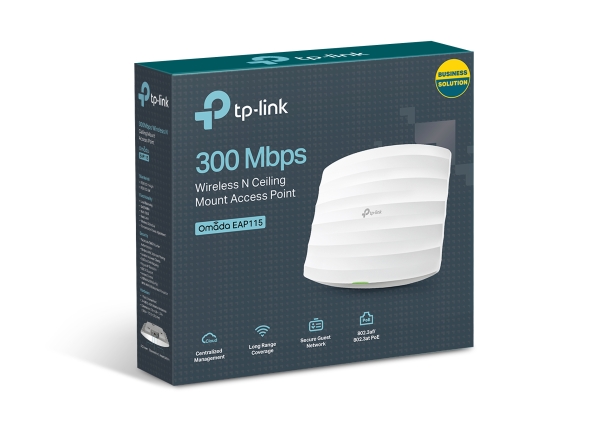

| Package Contents | 300Mbps Wireless N Ceiling Mount Access Point EAP115 Power Adapter Mounting Kit Installation Guide |
| System Requirements | Microsoft Windows 11/10/8/7/Vista/XP, Linux |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
